T5

1STPLAYER Gaming Case

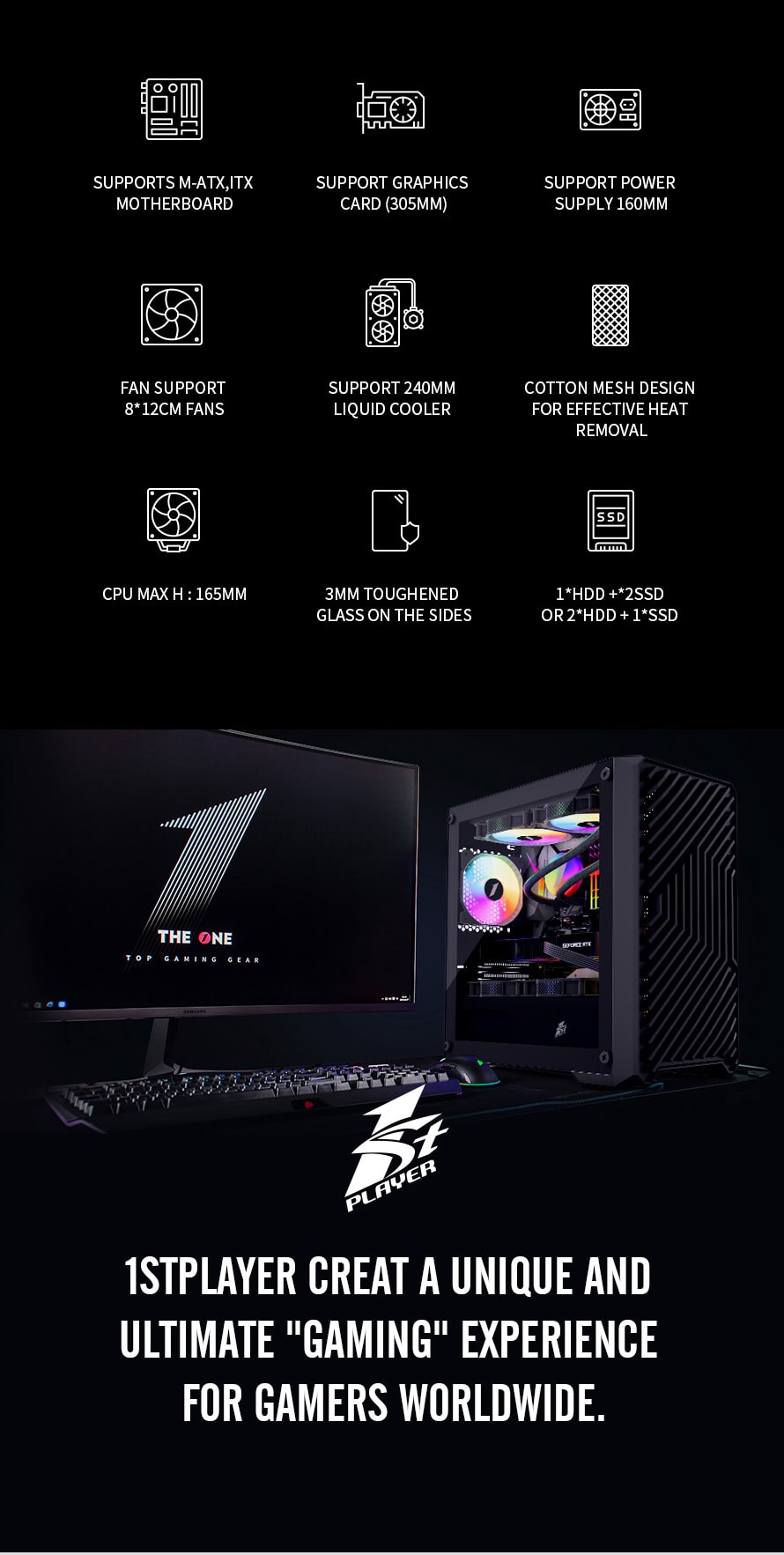

Support installation of up to 8 fans

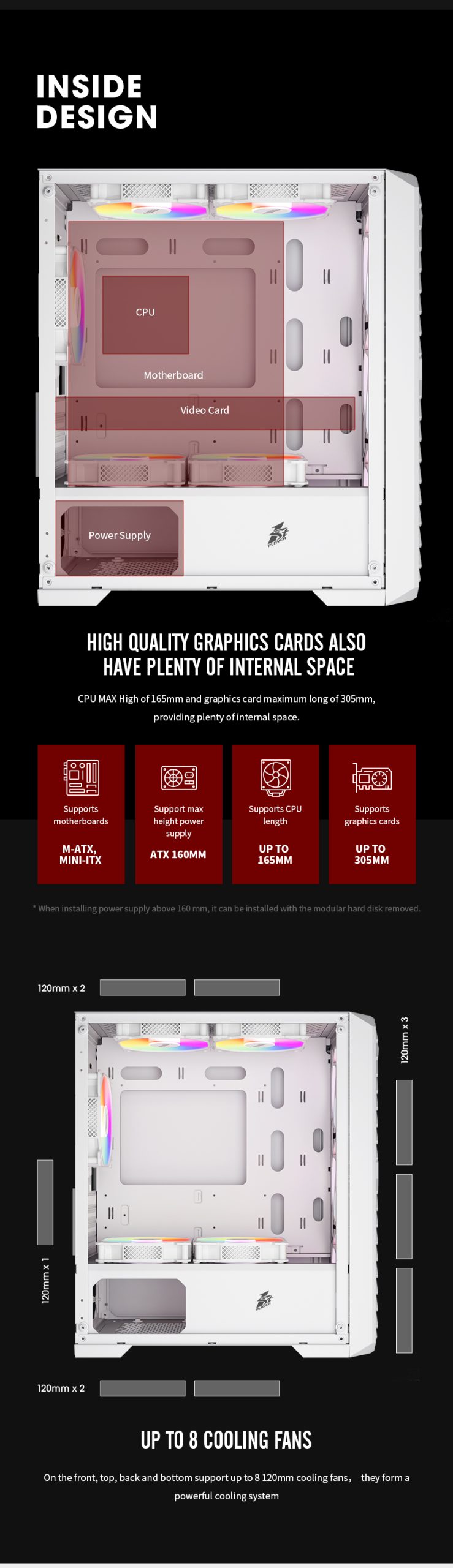

Support CPU cooler height up to 165 mm
Support GPU length up to 330 mm

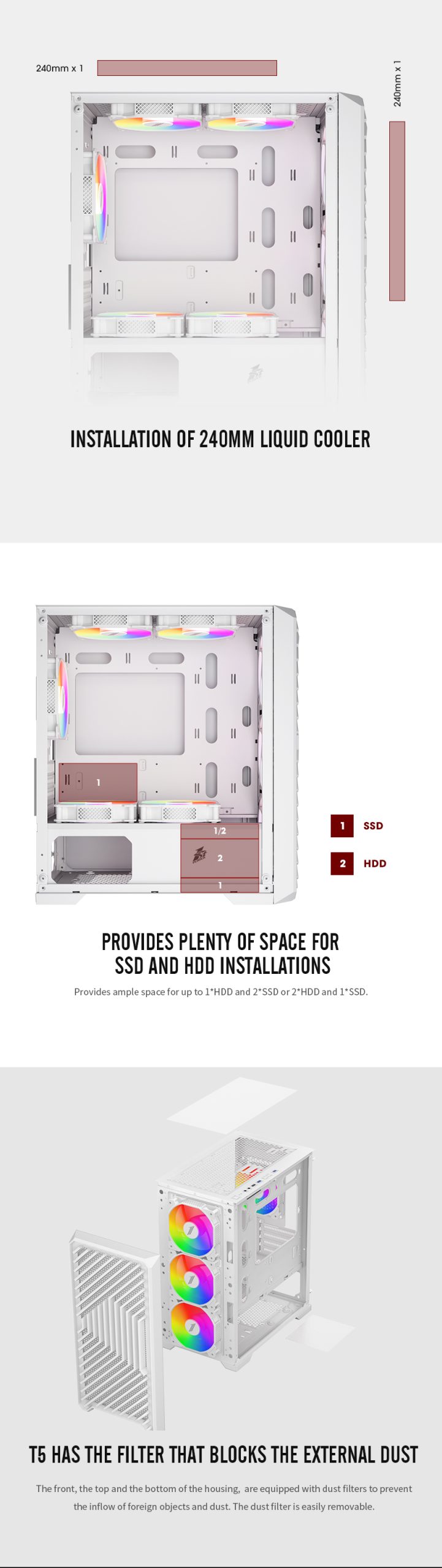

Support a 240 mm radiator at the top
Support up to 3 drive bays: 2 x 3.5" HDD + 1 x 2.5" SSD

Color

MODEL

T5

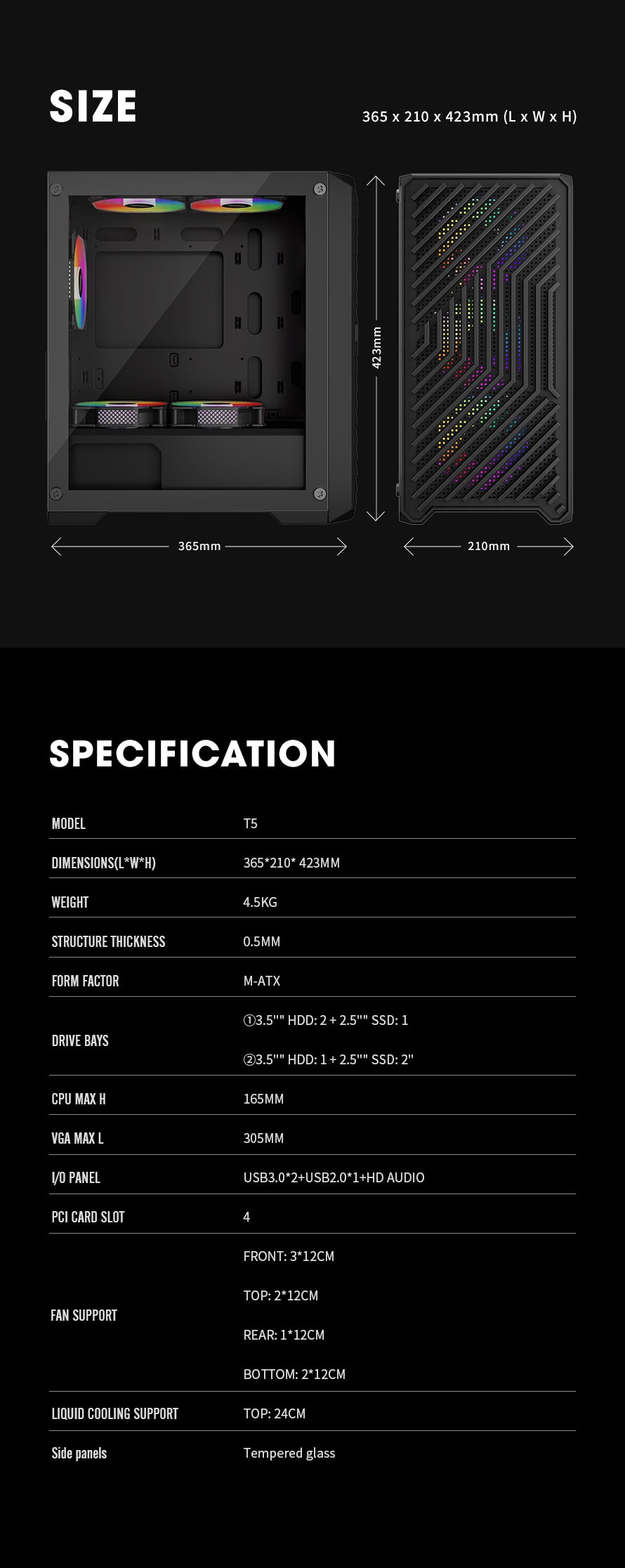

STRUCTURE DIMENSIONS (L x W x H)

335 x 210 x 407 mm

PRODUCT DIMENSIONS (L x W x H)

377 x 210 x 422 mm

PACKAGE DIMENSIONS (L x W x H)

478 x 265 x 433 mm

STRUCTURE THICKNESS

0.5 mm

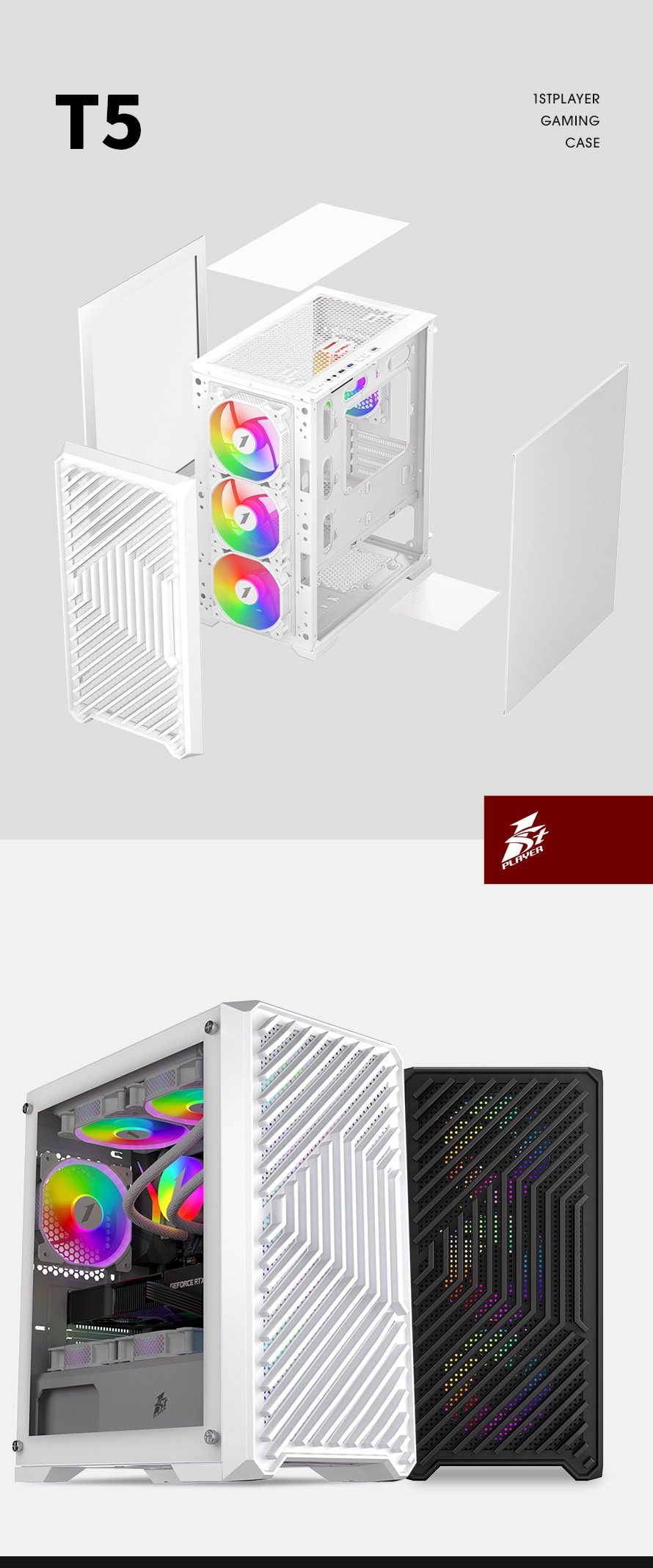

MATERIALS

SPCC 0.5 mm
Left Panel: Tempered glass

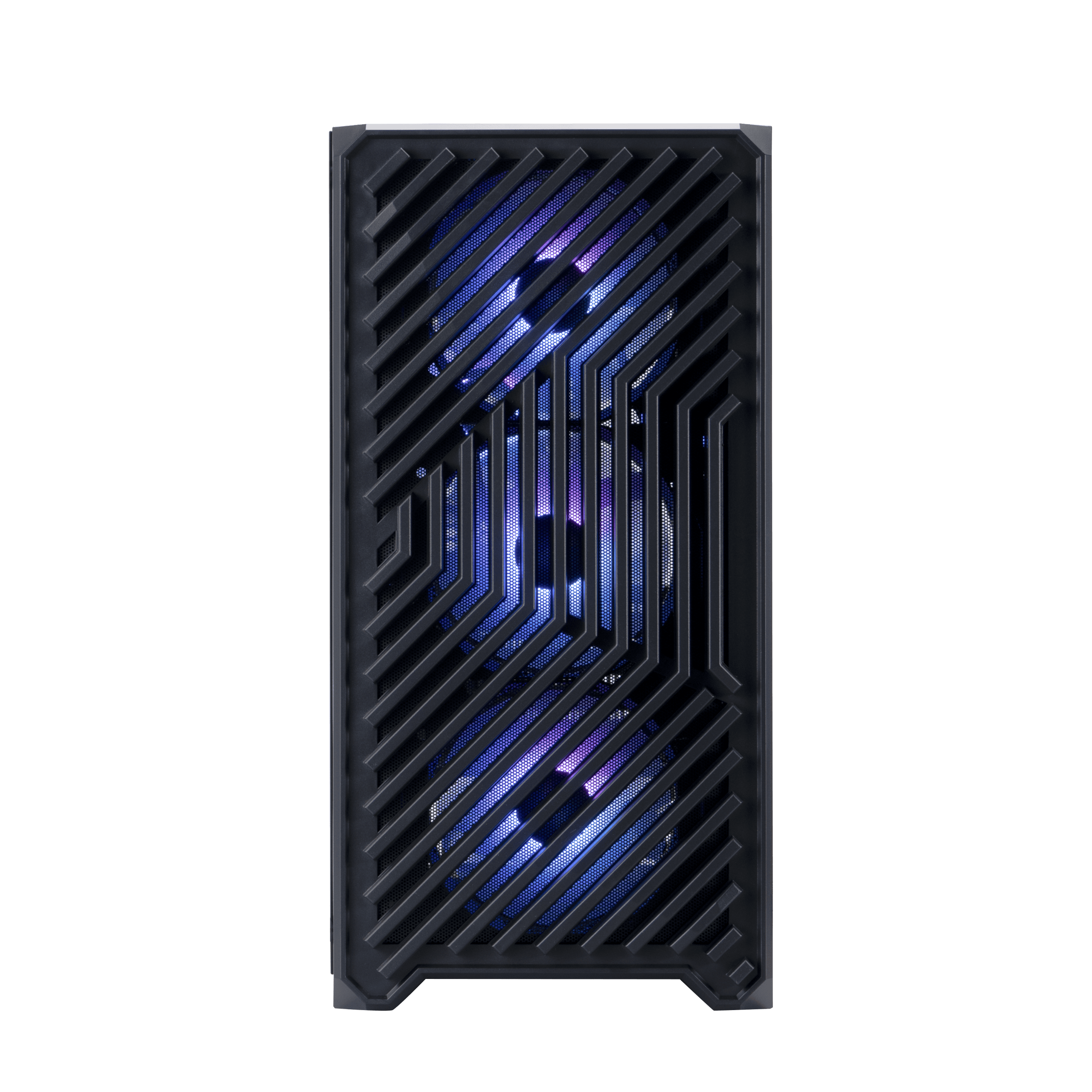

Front Panel: Plastic net

FORM FACTOR

M-ATX

DRIVE BAYS

3.5" HDD: 2, 2.5" SSD: 1 or
3.5" HDD: 1, 2.5" SSD: 2

CPU COOLER MAX HEIGHT

165 mm

GPU MAX LENGTH

330 mm

I/O PANEL

USB 3.0 x 2, USB 2.0 x 1, HD Audio

PCI CARD SLOT

4

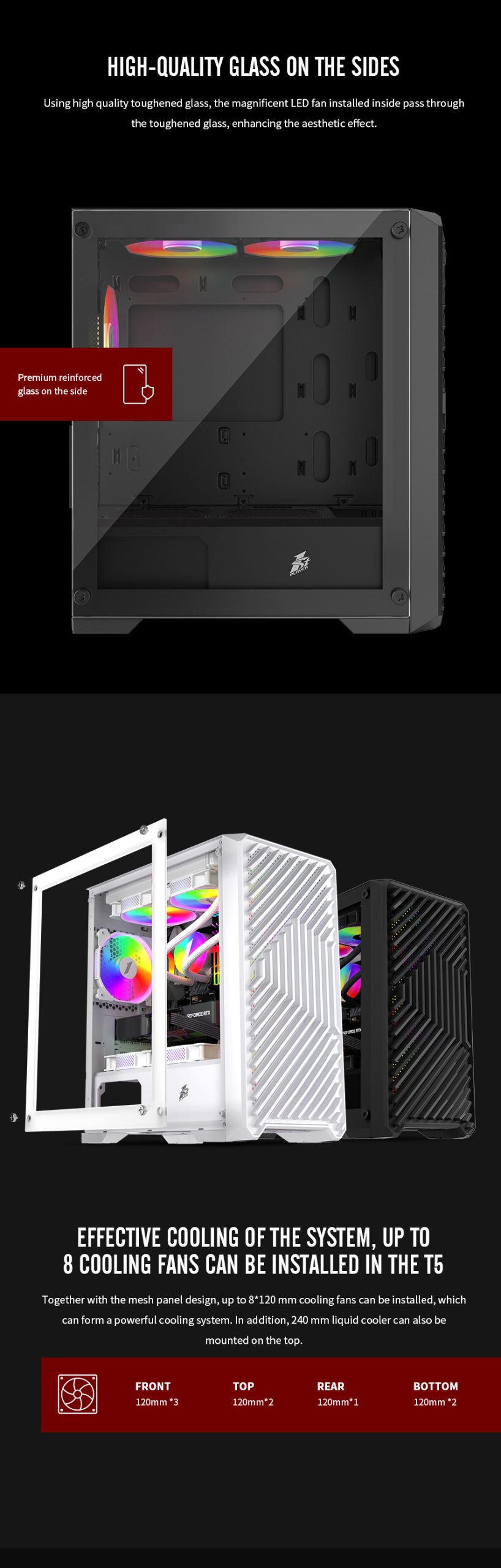

FAN SUPPORT

Front: 3 x 120 mm
Rear: 1 x 120 mm
Top: 2 x 120 mm
Bottom: 2 x 120 mm

LIQUID COOLING SUPPORT

Top: 240 mm

POWER SUPPLY SUPPORT

Bottom mounted

WEIGHT

N.W.: 4.63 kg / 10.20 lb
G.W.: 5.55 kg / 12.23 lb
