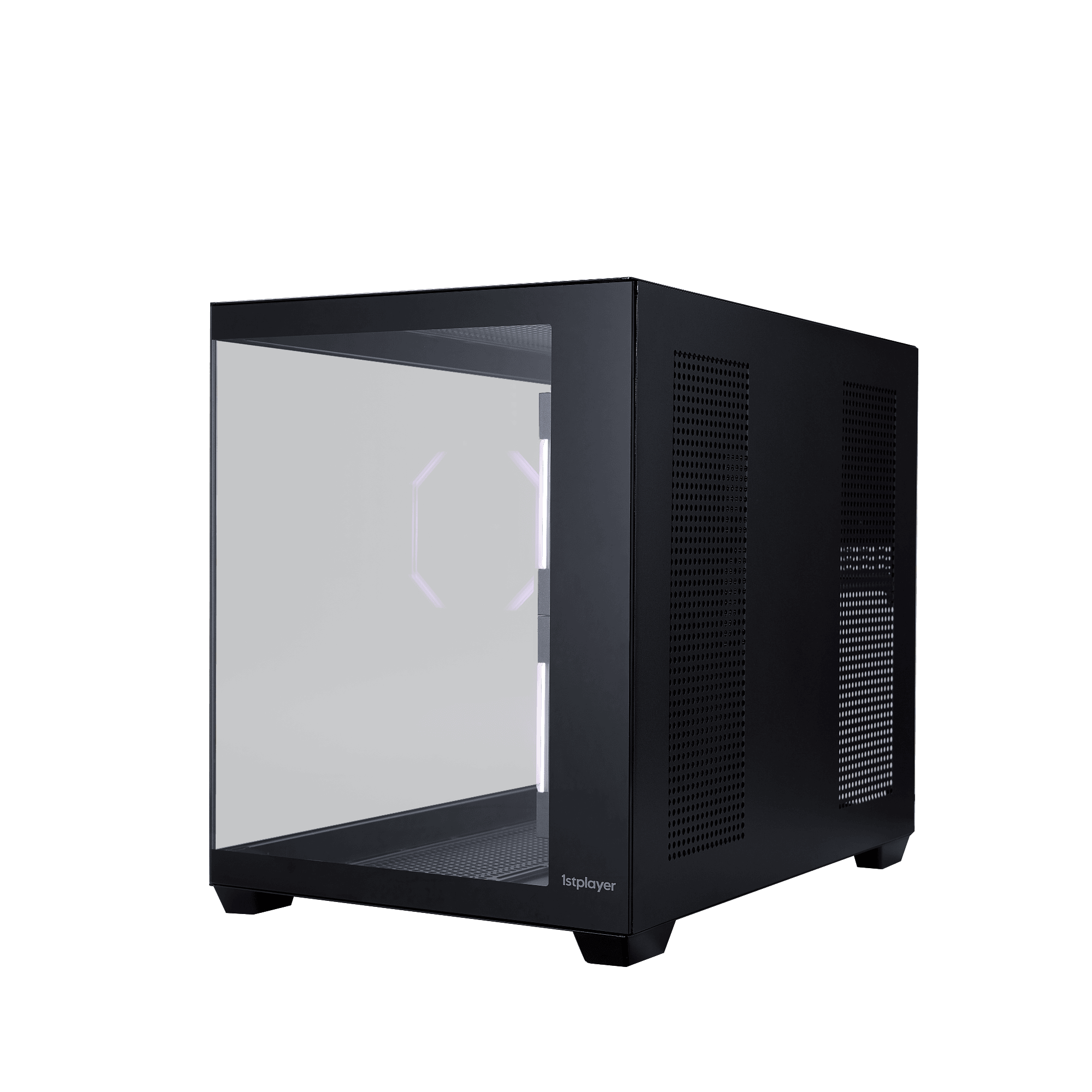

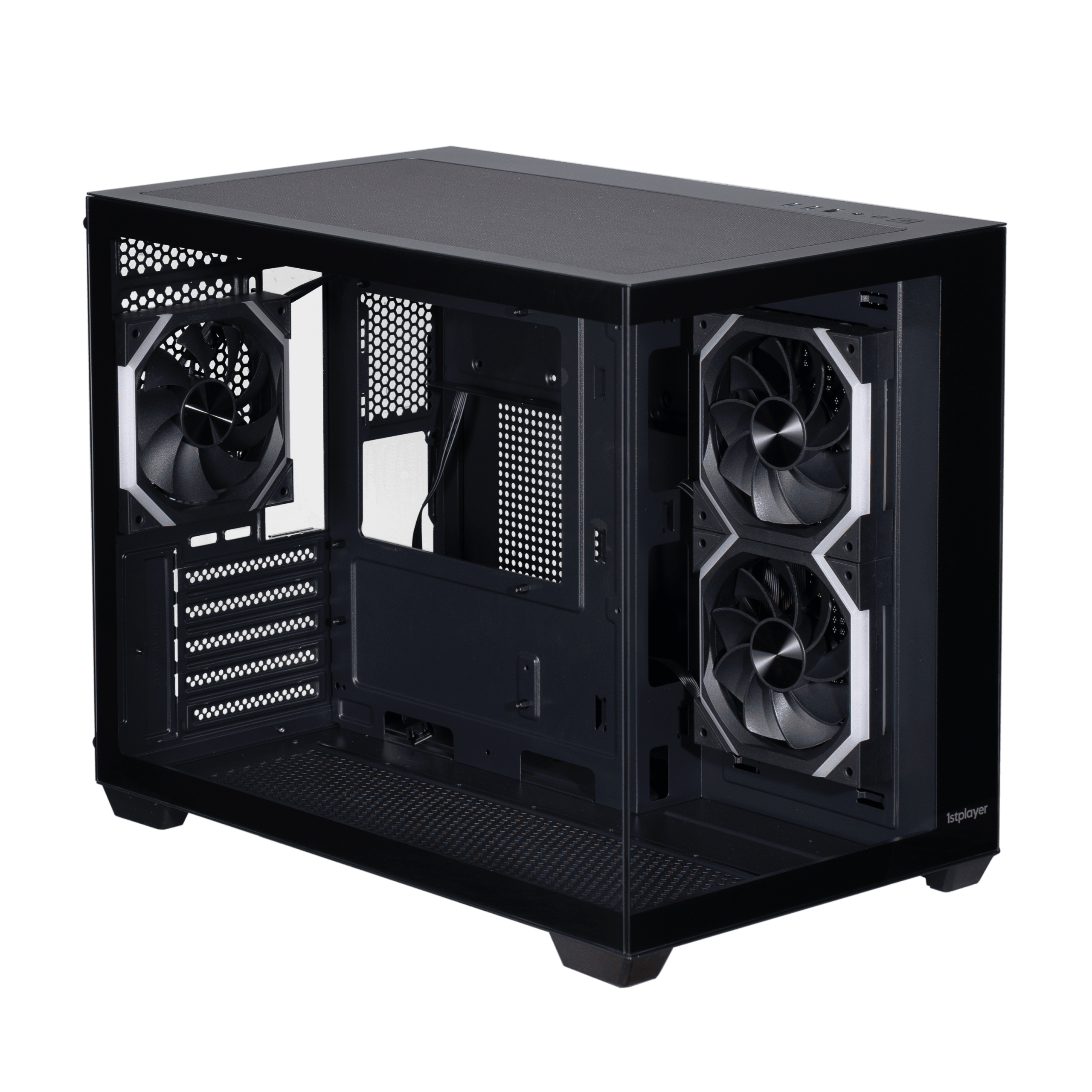

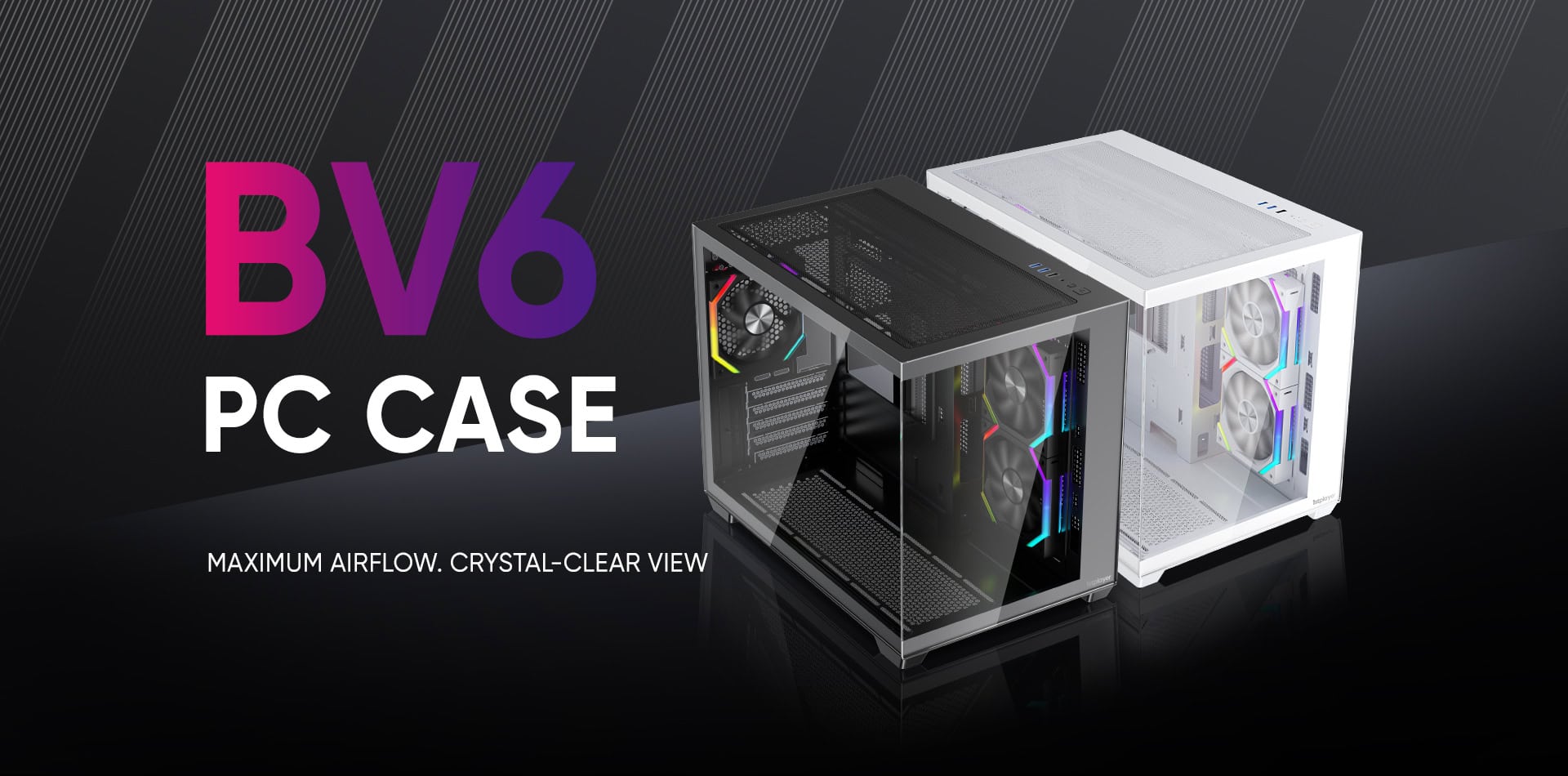

BV6

BUILT TO BE SEEN

Support GPU length up to 410 mm
Support CPU cooler height up to 160 mm
Support installing of up to 9 x 120 mm fans
Support 360 mm radiators on the top and 240 mm radiator on the side

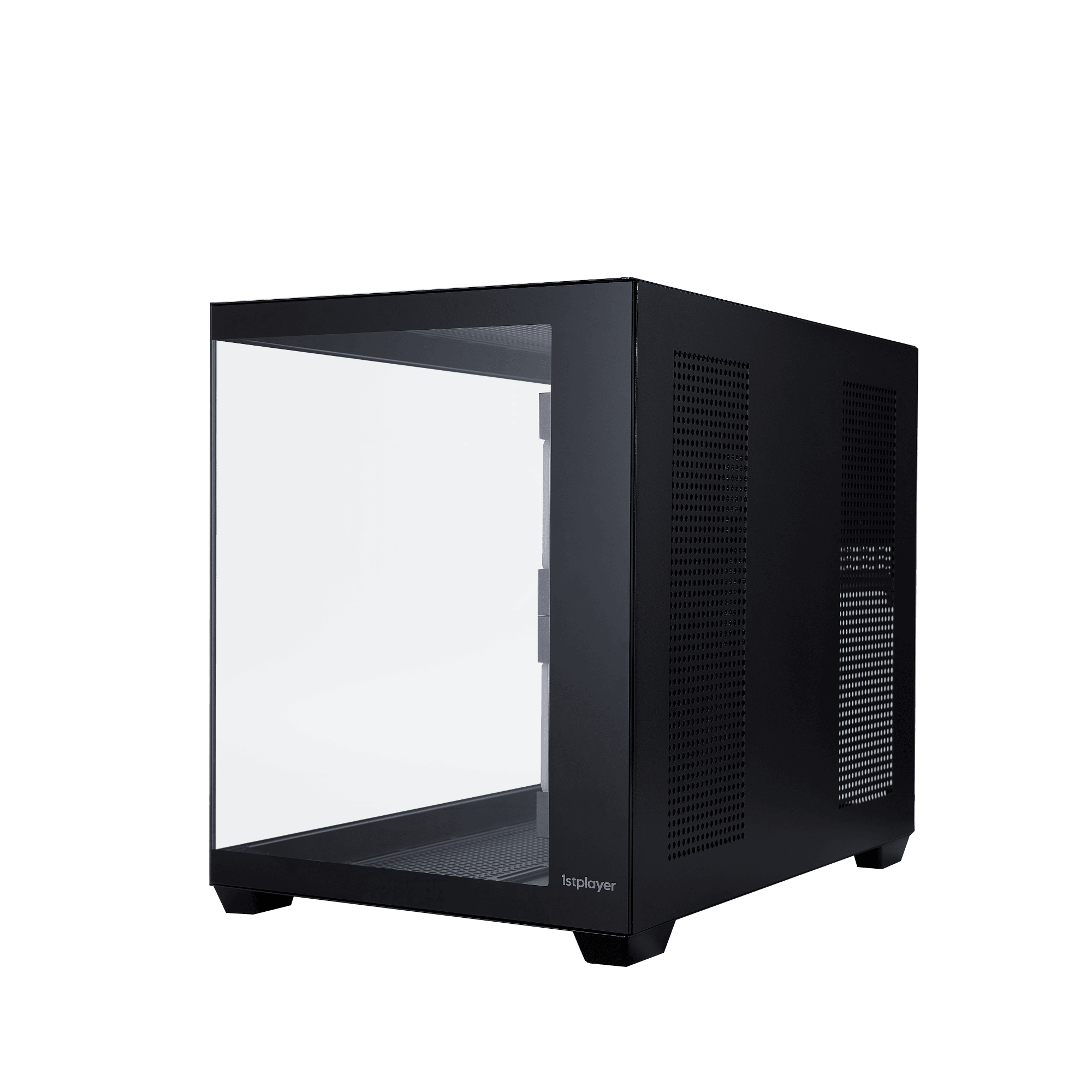

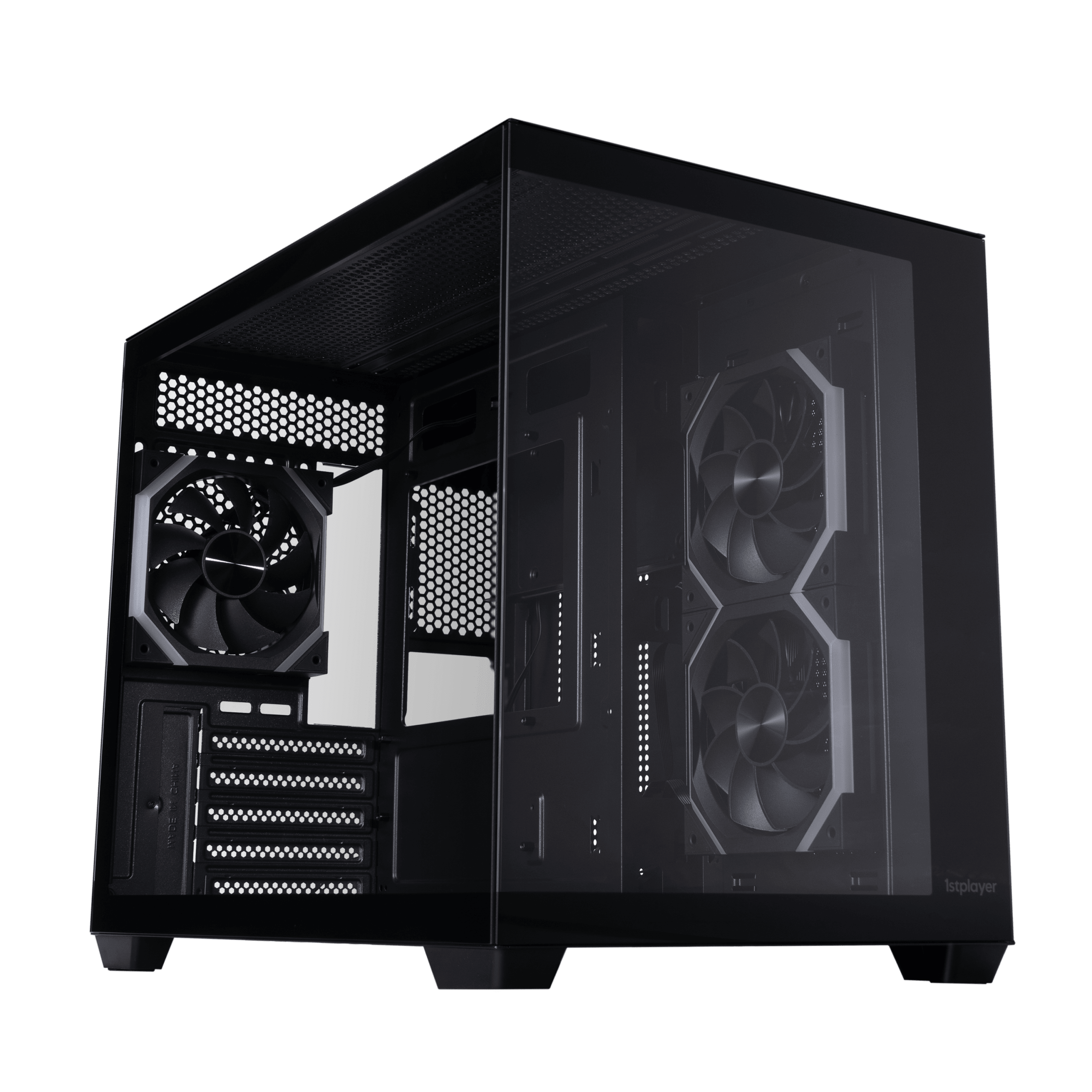

Front and side panoramic tempered glass panels,designed to deliver an uninterrupted wide-angle view of your components

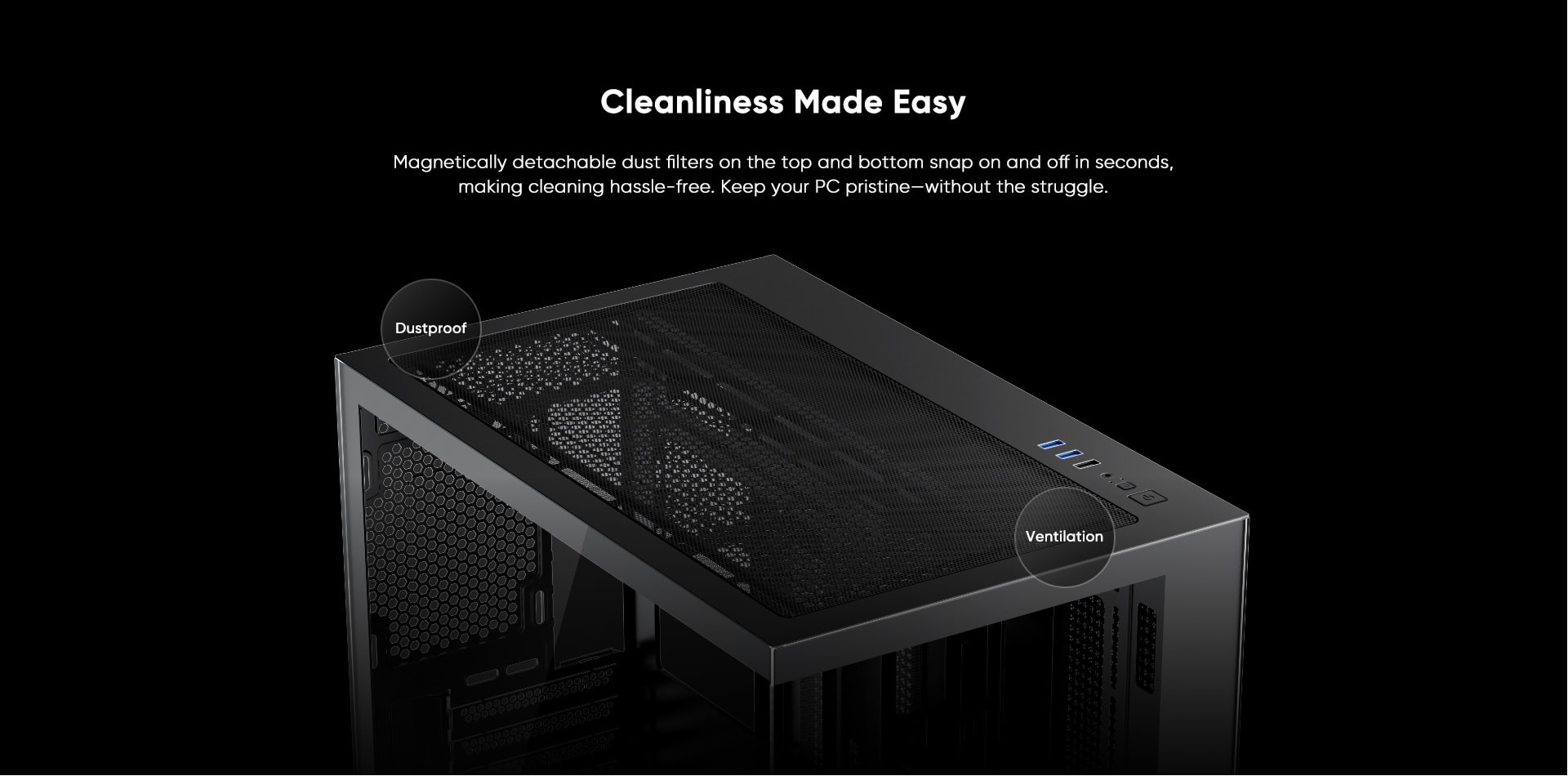

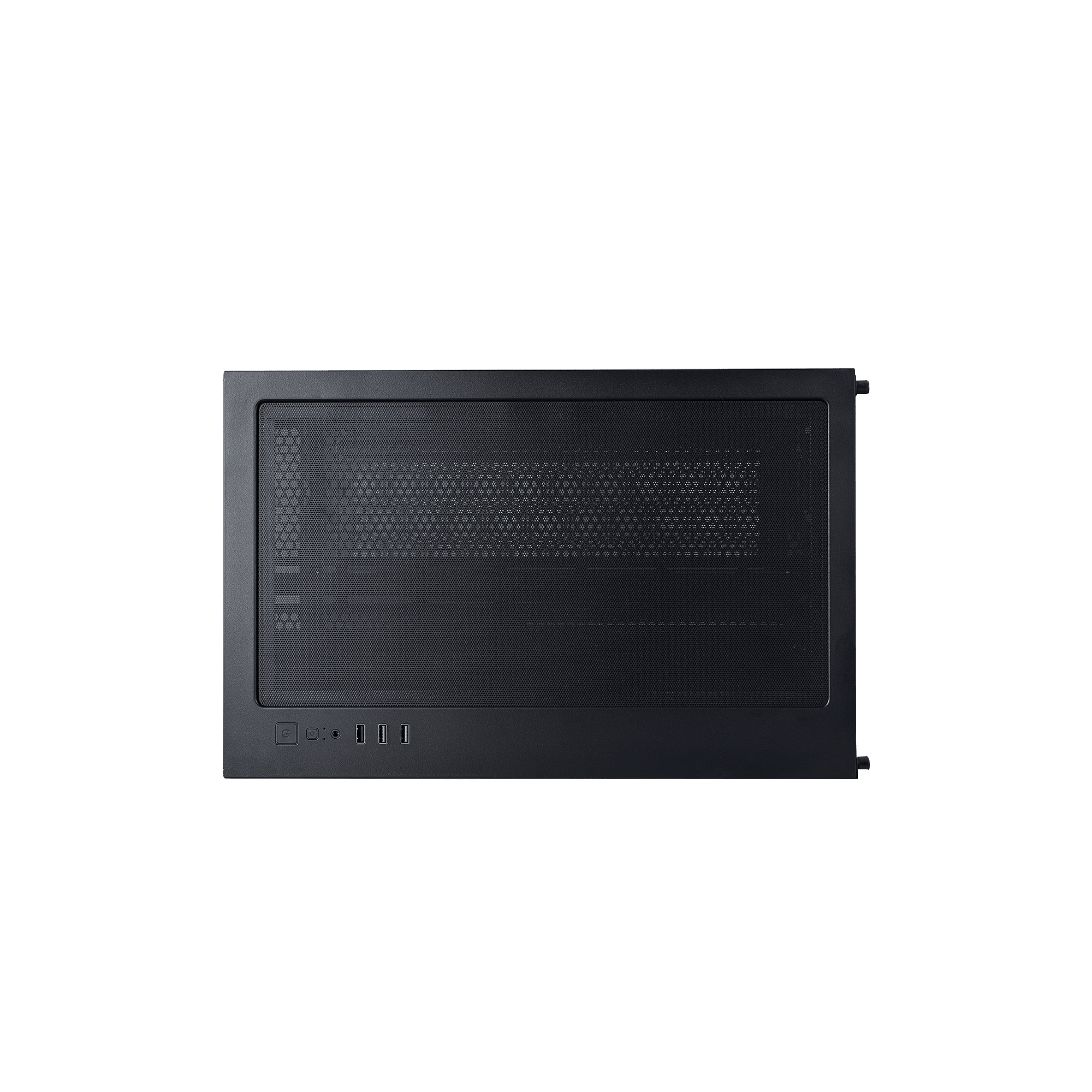

Magnetic-mount dust filter on the top and bottom for easy maintenance

*Computer parts are not included. Cooling fan may vary among different countries/regions.

Color

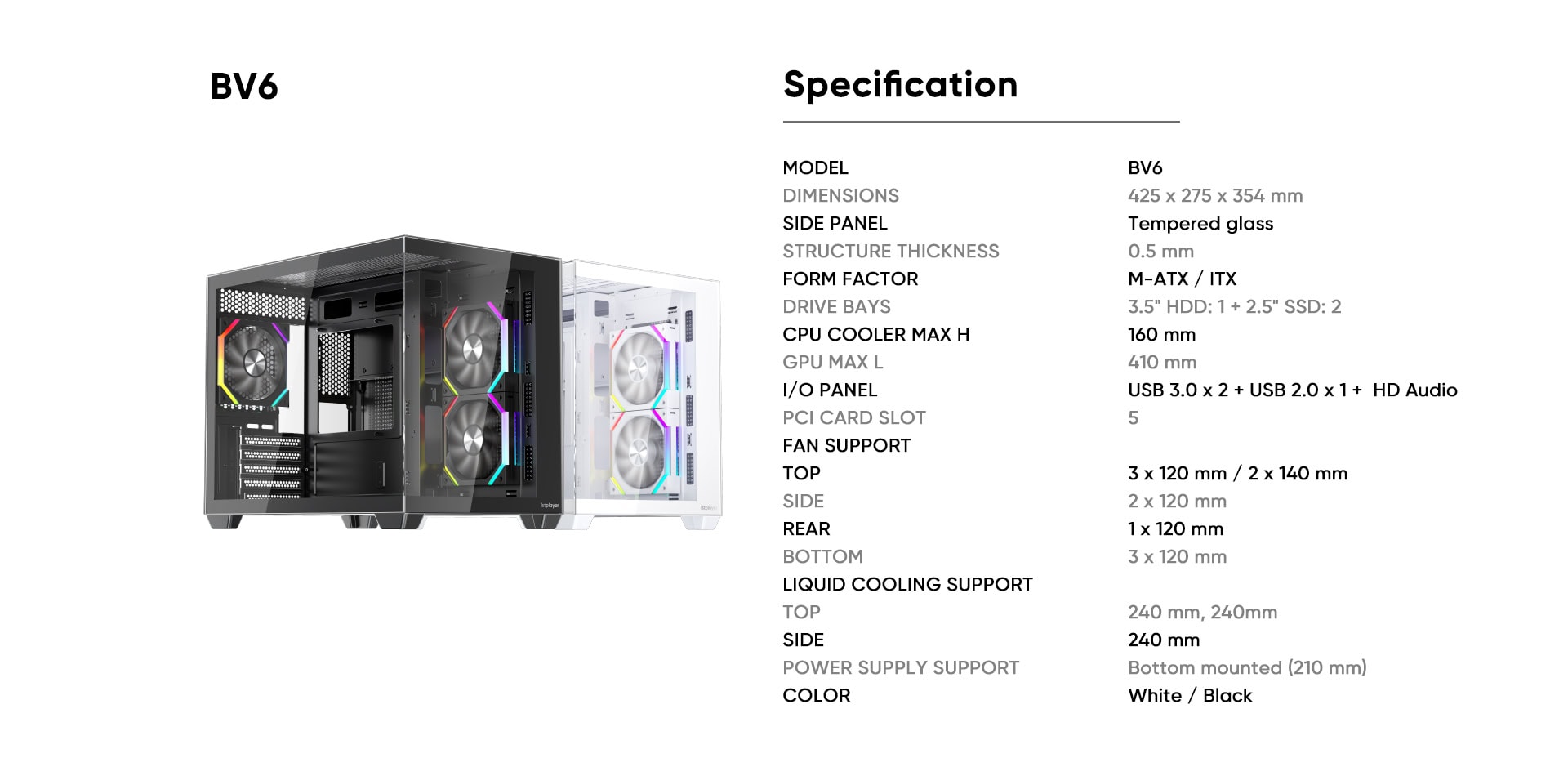

MODEL

BV6

STRUCTURE DIMENSIONS (L x W x H)

425 × 275 × 336 mm

PRODUCT DIMENSIONS (L x W x H)

425 × 275 × 354 mm

PACKAGE DIMENSIONS (L x W x H)

395 x 326 × 490 mm

STRUCTURE THICKNESS

0.5 mm

MATERIALS

SPCC, tempered glass, plastic

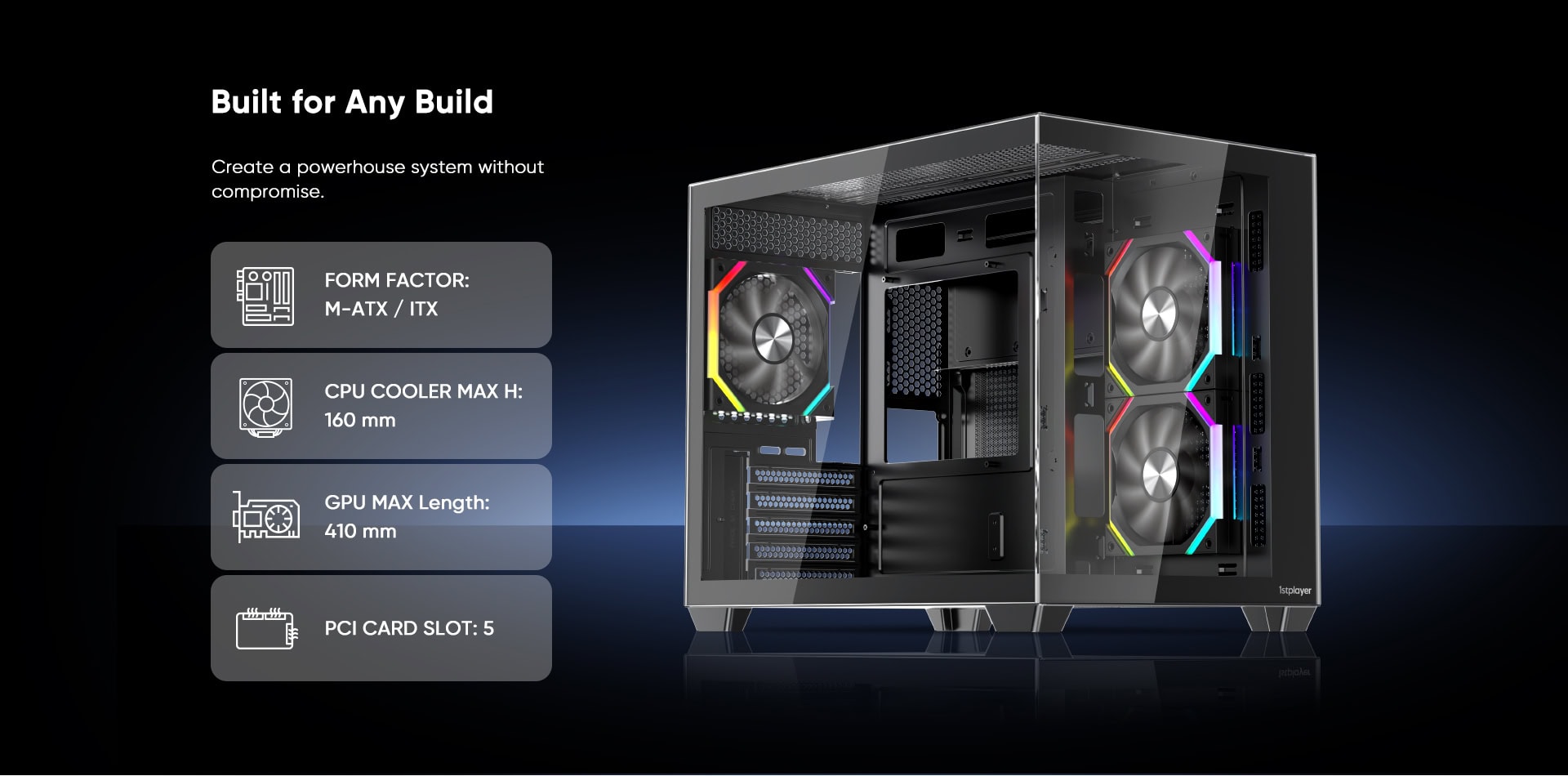

FORM FACTOR

M-ATX / ITX

DRIVE BAYS

3.5" HDD: 1, 2.5" SSD: 2

CPU COOLER MAX HEIGHT

160 mm

GPU MAX LENGTH

410 mm

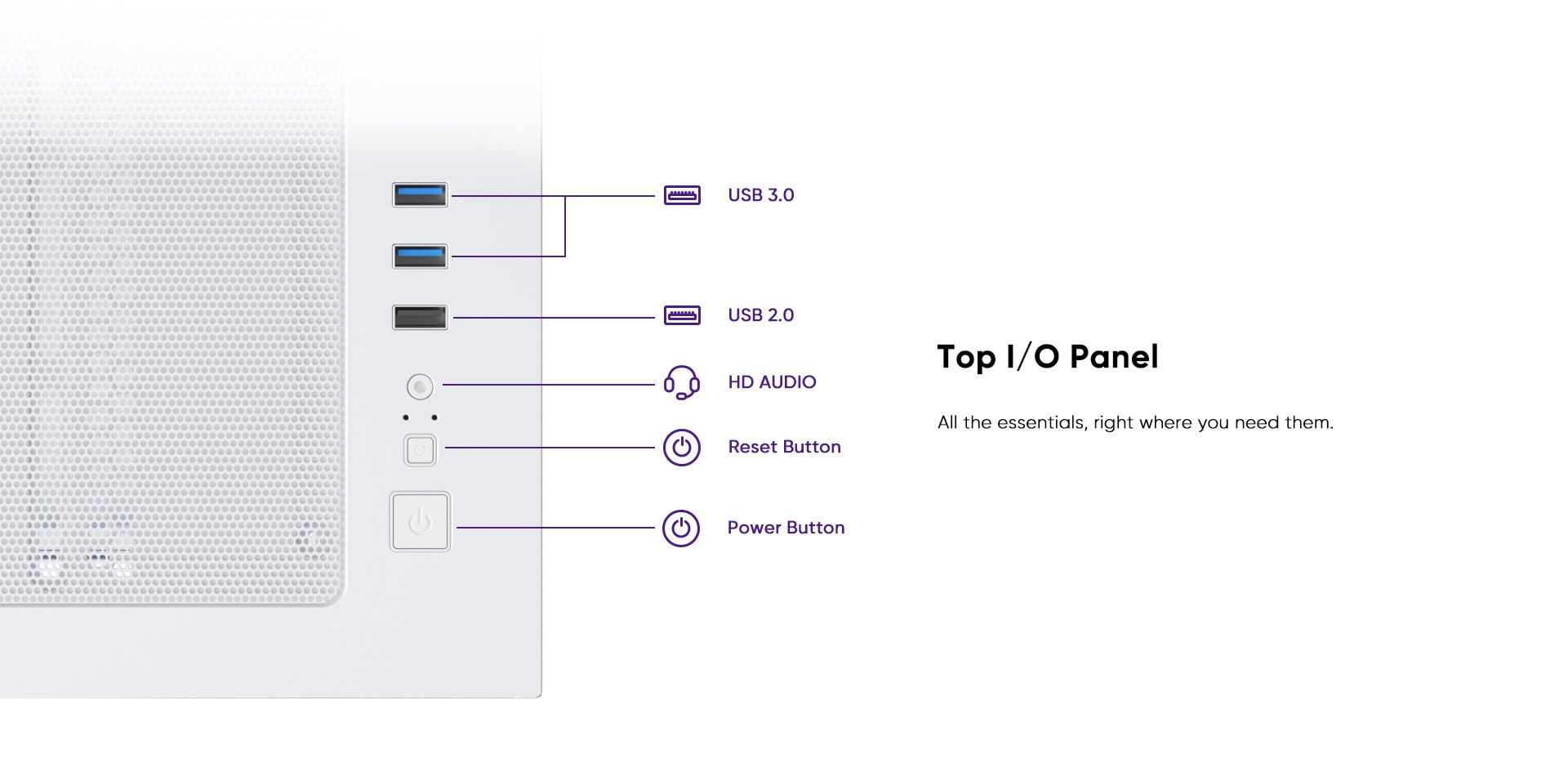

I/O PANEL

USB 3.0 x 2, USB 2.0 x 1, HD Audio

PCI CARD SLOT

5

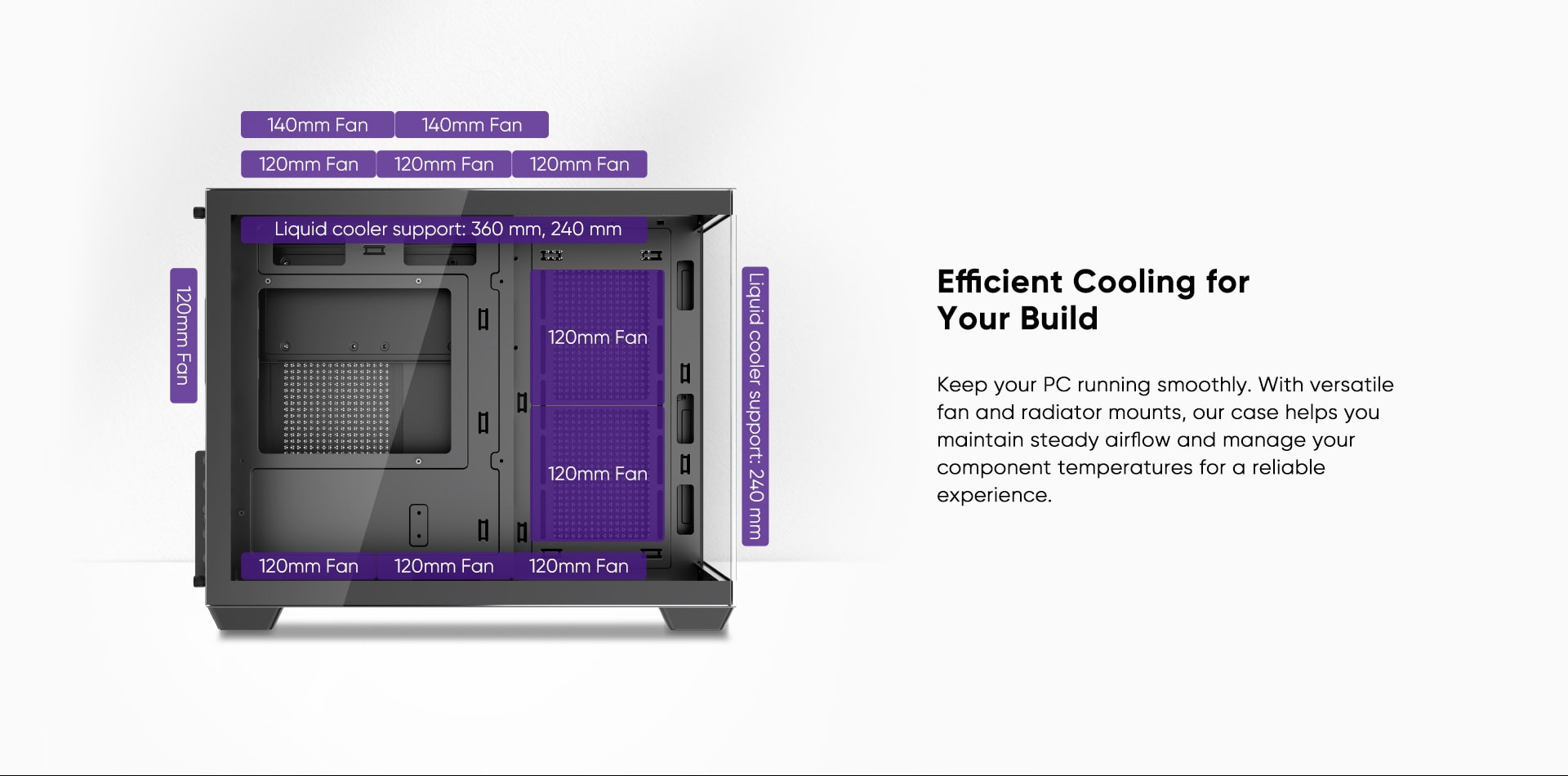

FAN SUPPORT

Top: 3 x 120 mm / 2 x 140 mm
Bottom: 3 x 120 mm
Rear: 1 x 120 mm
Side: 2 x 120 mm

LIQUID COOLING SUPPORT

Top: 360 mm, 240 mm
Side: 240 mm

POWER SUPPLY SUPPORT

Bottom mounted (210 mm)

WEIGHT

N.W.: 4.3 kg ± 10%
G.W.: 5.5 kg ± 10%
