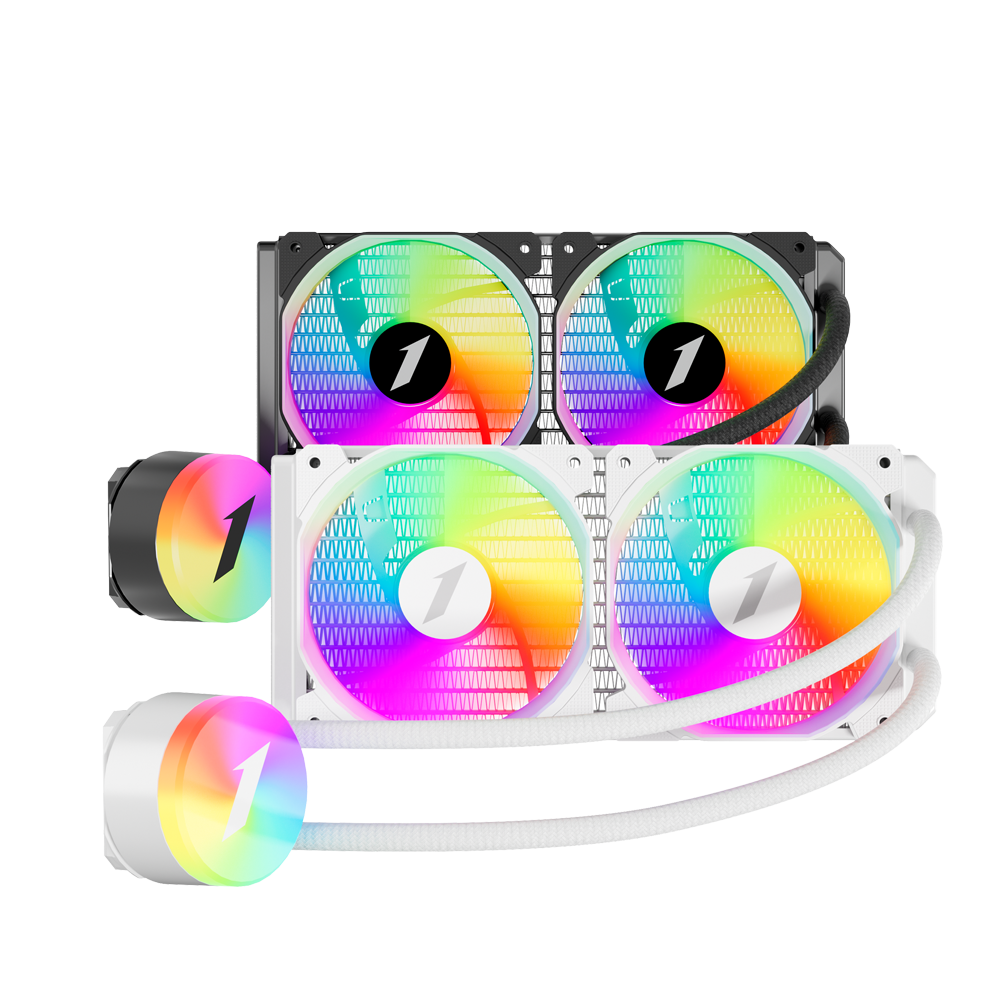

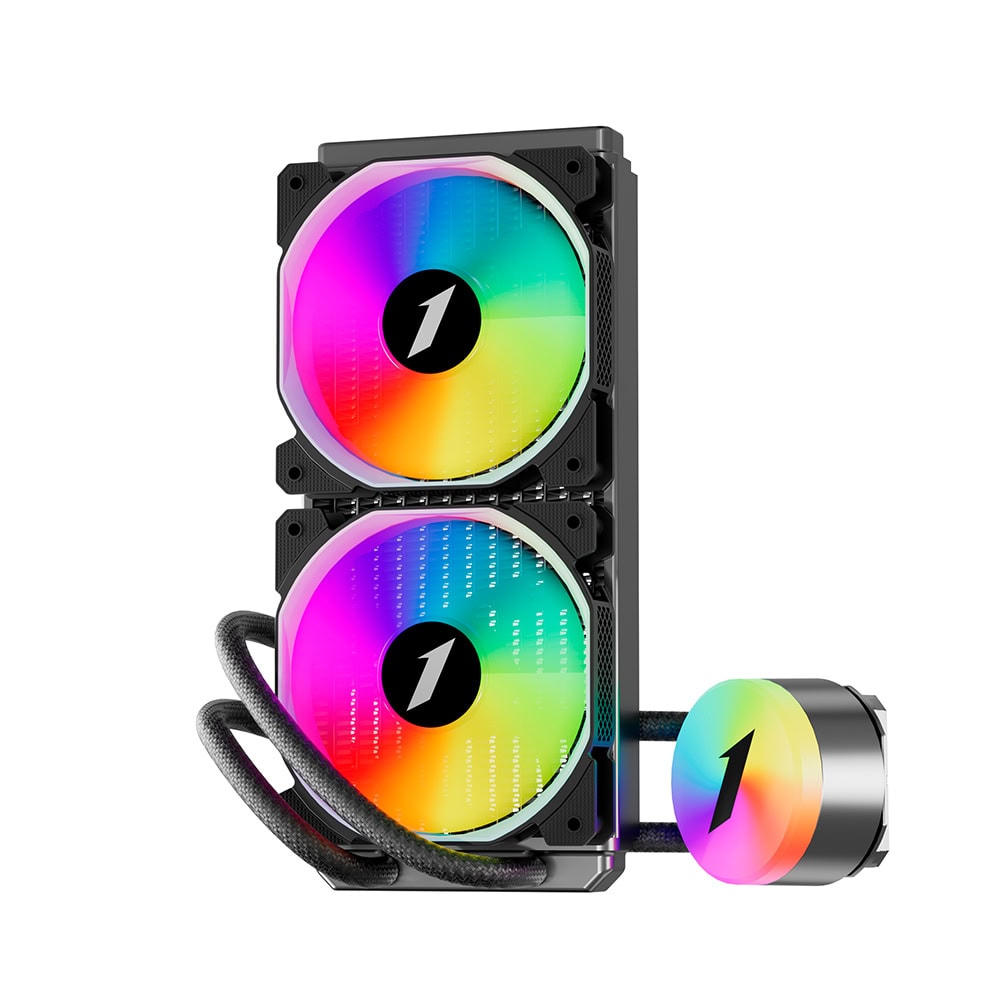

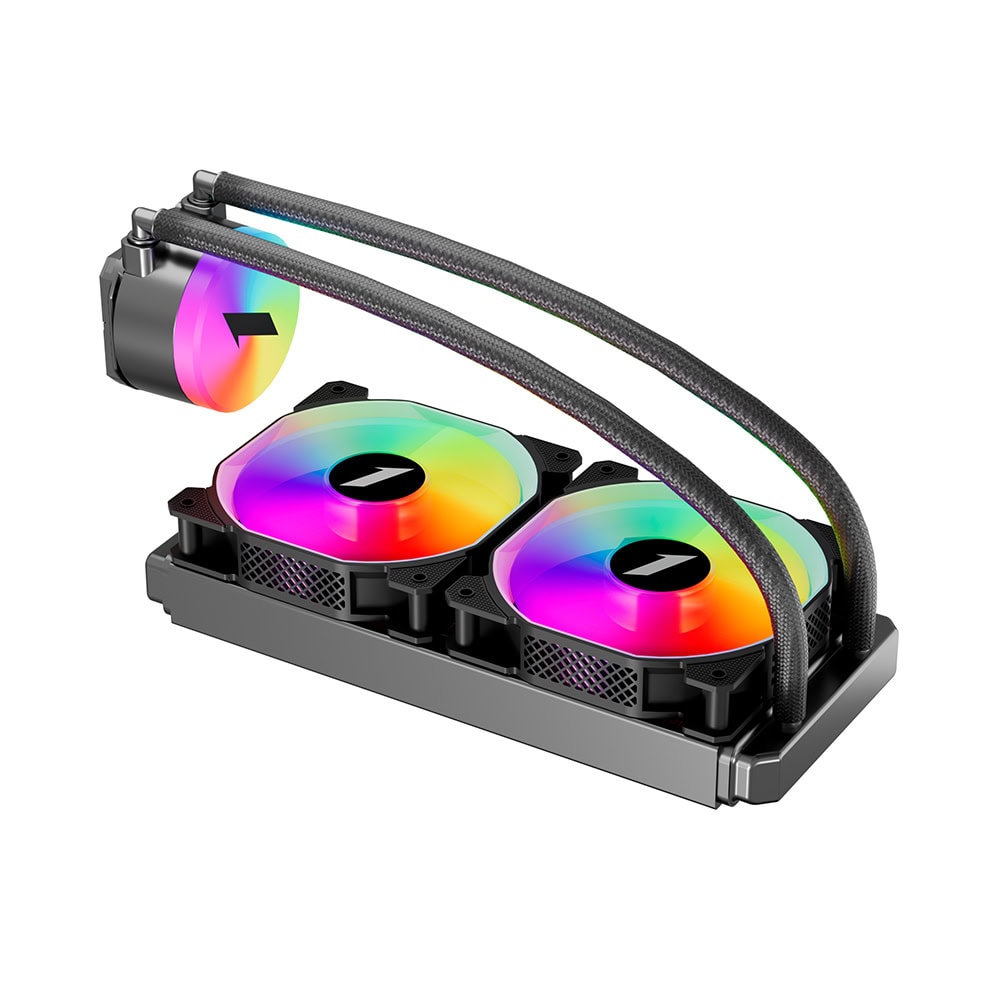

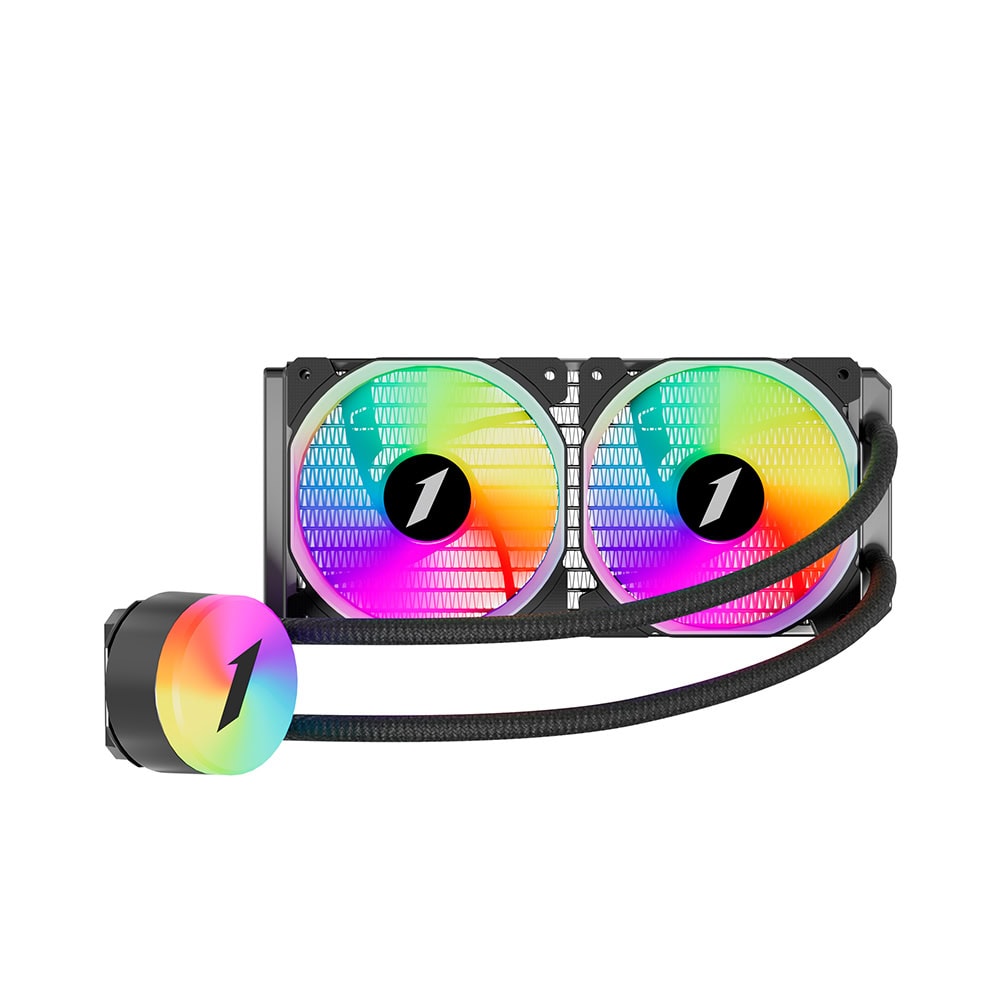

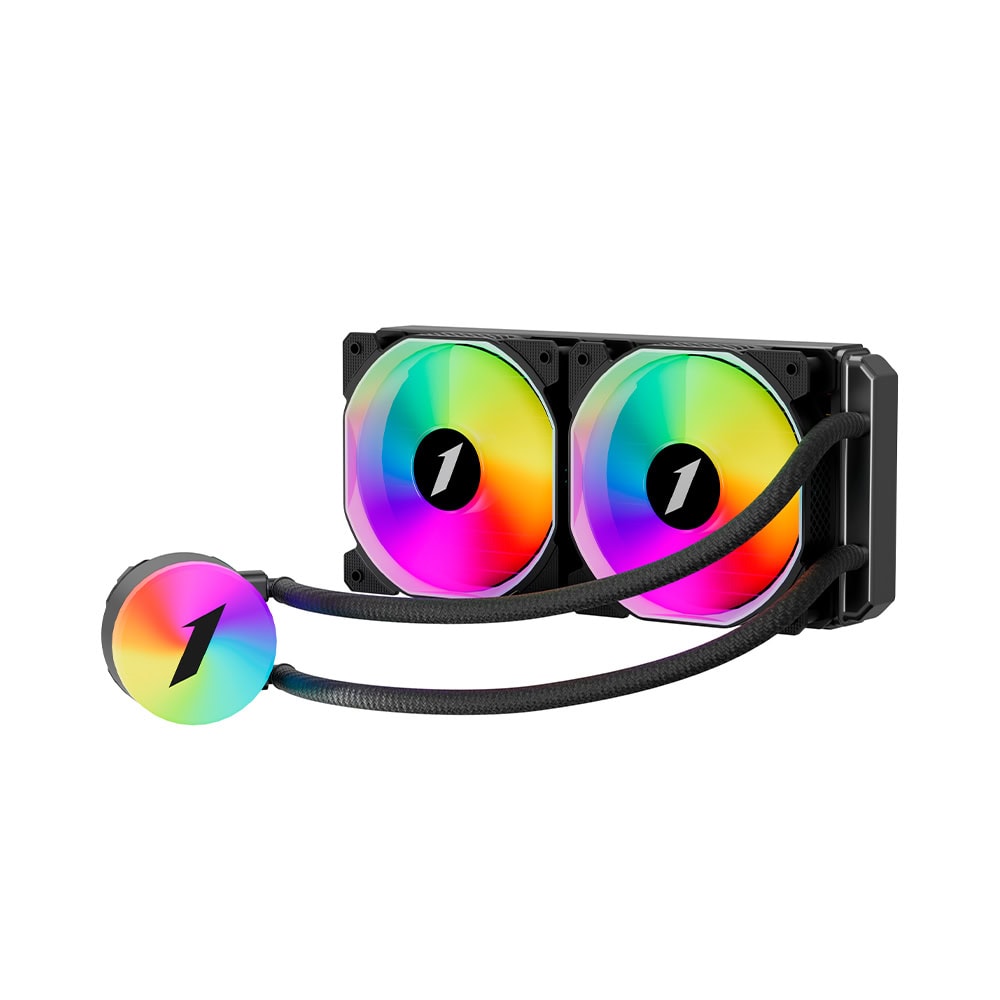

TS2-240 / TS2-360 Liquid Cooler

TS2-240 / TS2-360 Liquid Cooler

TS2-240 / TS2-360 Liquid Cooler

TS2-240 / TS2-360 Liquid Cooler

TS2-240 / TS2-360 Liquid Cooler

TS2-240 / TS2-360 Liquid Cooler

TS2-240 / TS2-360 Liquid Cooler

TS2-240 / TS2-360 Liquid Cooler

TS2-240 / TS2-360 Liquid Cooler

TS2-240 / TS2-360 Liquid Cooler

TS2-240 / TS2-360 Liquid Cooler

TS2-240 / TS2-360 Liquid Cooler

TS2-240 / TS2-360 Liquid Cooler

TS2-240 / TS2-360 Liquid Cooler

TS2-240 / TS2-360 Liquid Cooler

Keep your cool when the game heats up

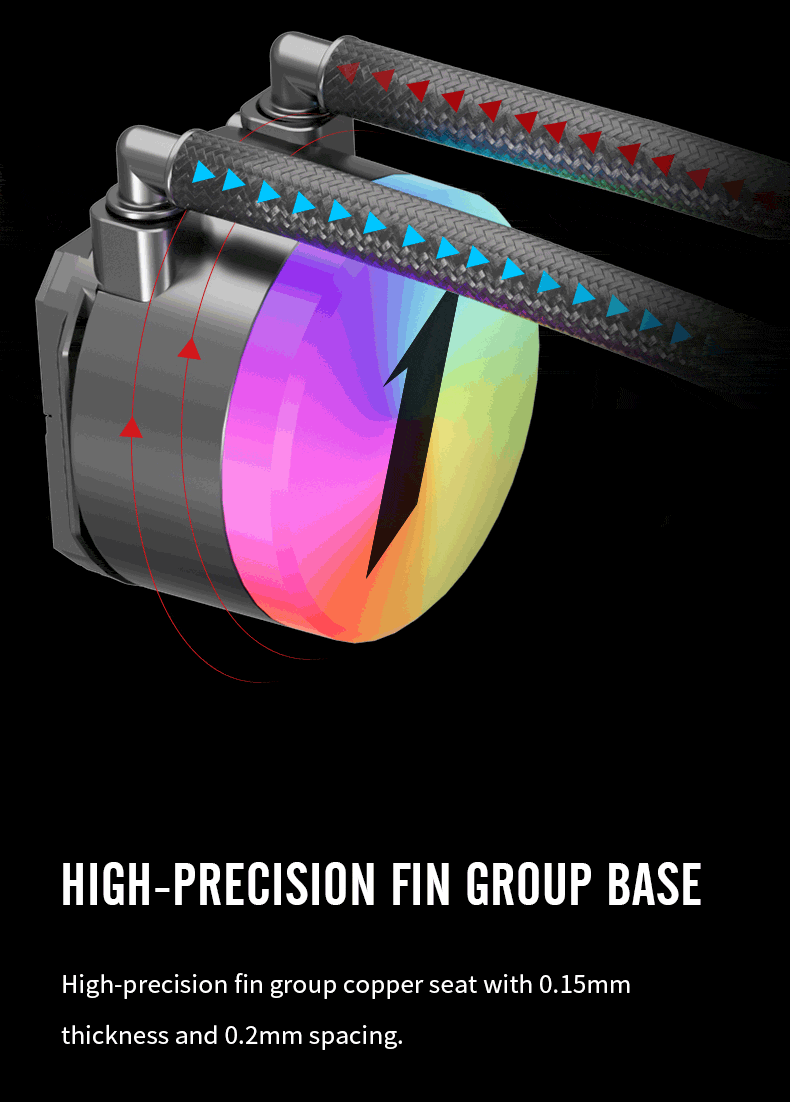

Pure copper cold plate for efficient heat absorption
Support 5v Sync with Motherboard (aRGB) on Pump and Fan

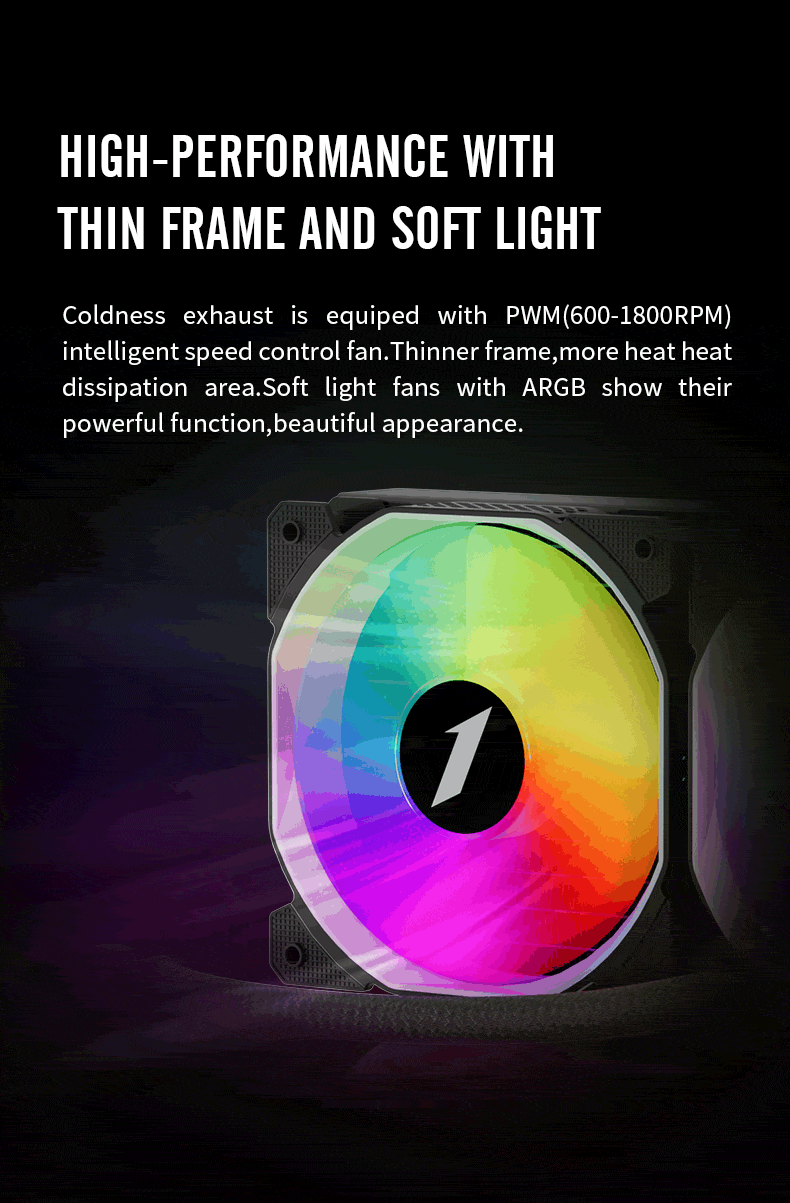

Temperature-controlled 9-blade fan with noise reduction

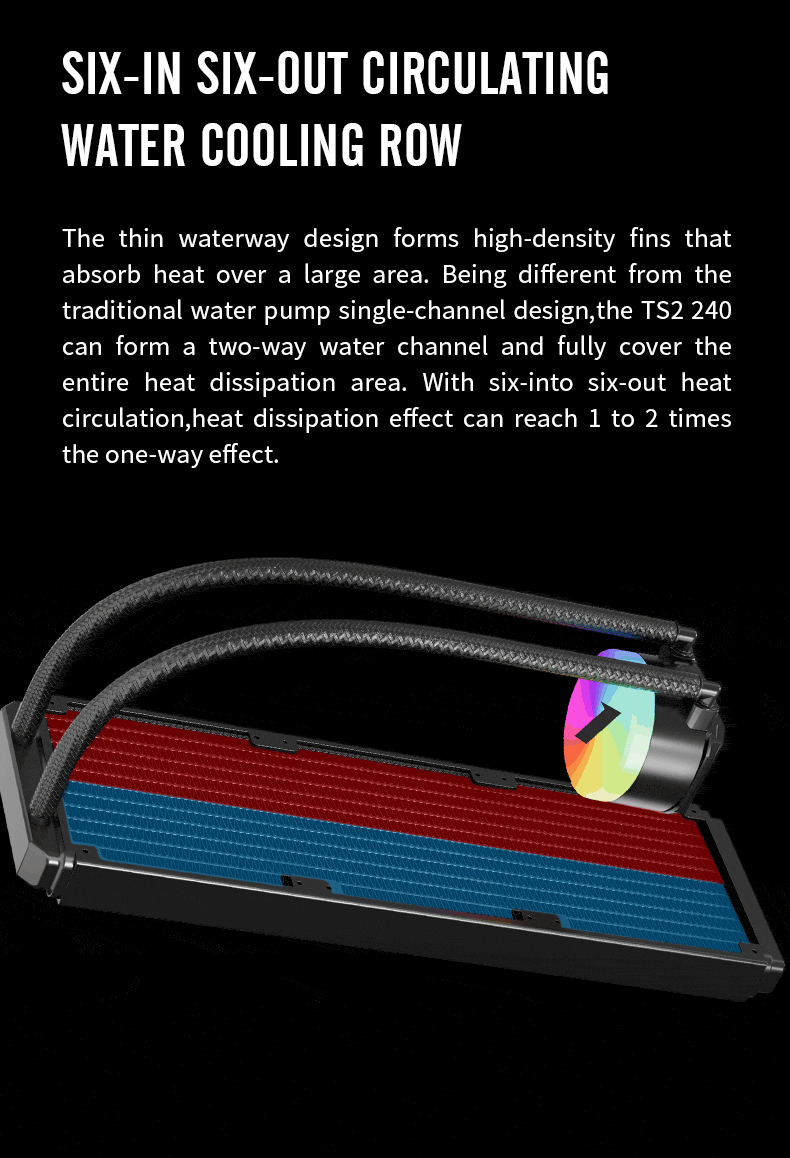

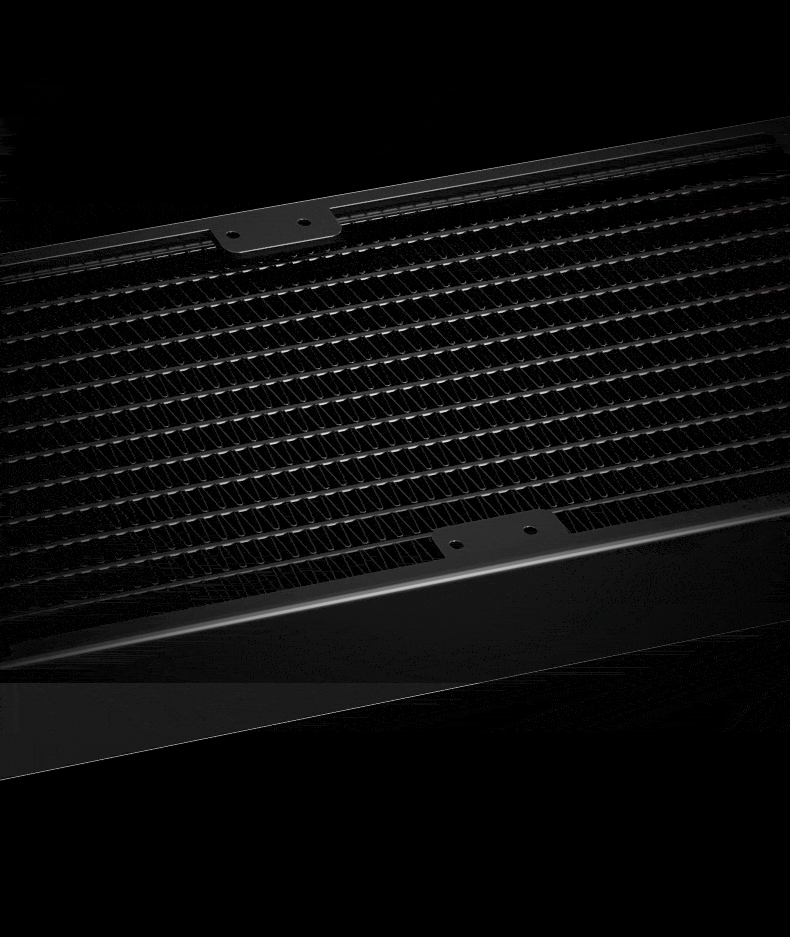

High-density fin heat sink for superior cooling
High-performance silicone grease for better thermal conductivity
Support Intel LGA 1851 / 1700 / 2011 / 115x / 1366 and AMD AM5 / AM4 / FM3 / FM2 / FM1 / AM3 / AM2

Color

Size

240 mm

360 mm

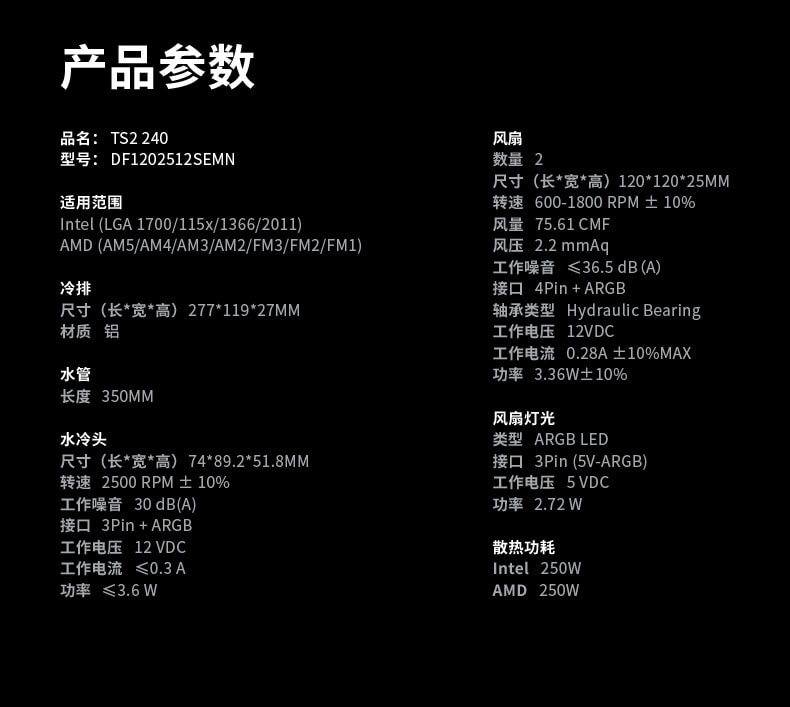

MODEL

TS2 240 / TS2 360

SUPPORTED CPU

Intel LGA 1851 / 1700 / 2011 / 115x / 1366
AMD AM5 / AM4 / FM3 / FM2 / FM1 / AM3 / AM2

RADIATOR DIMENSIONS

TS2 240: 277 x 119 x 27 mm
TS2 360: 397 x 120 x 27 mm

RADIATOR MATERIAL

Aluminum

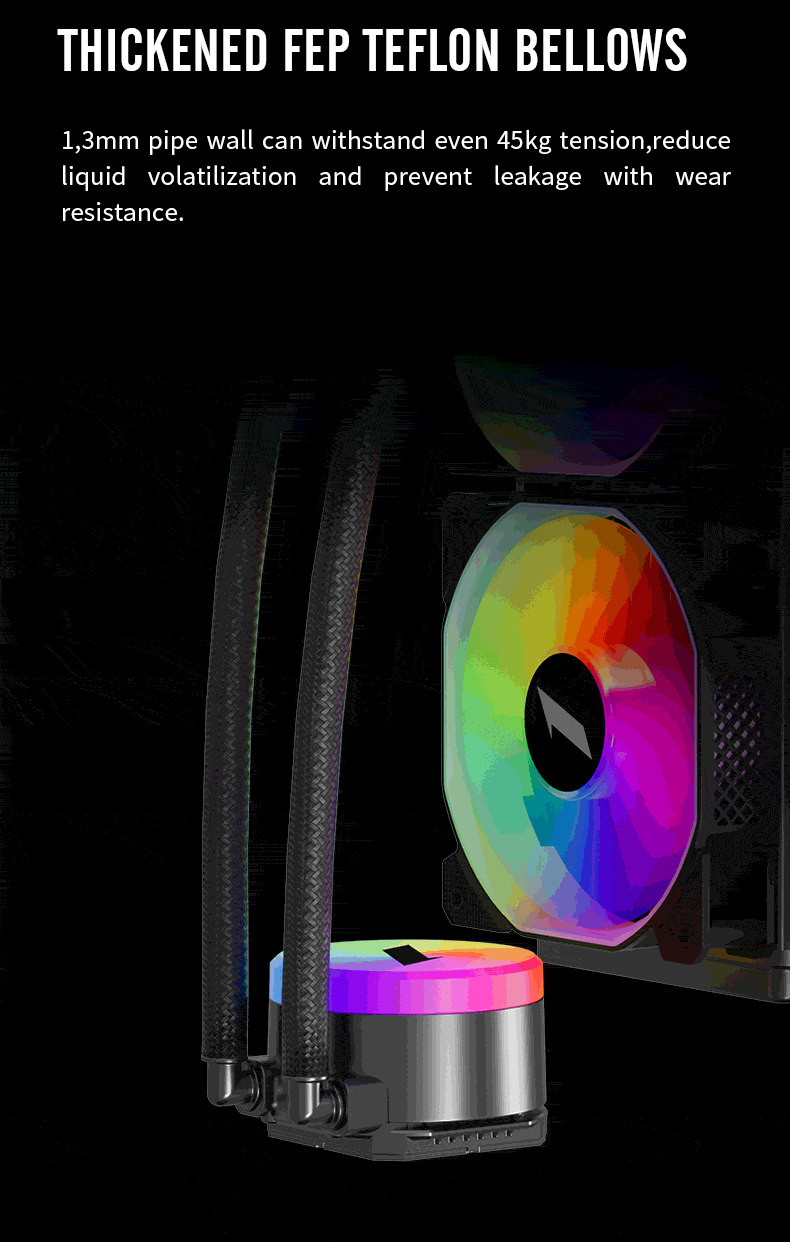

TUBE LENGTH

TS2 240: 350 mm
TS2 360: 380 mm

WARRANTY

5 years

PUMP DIMENSIONS

74 x 89.2 x 51.8 mm

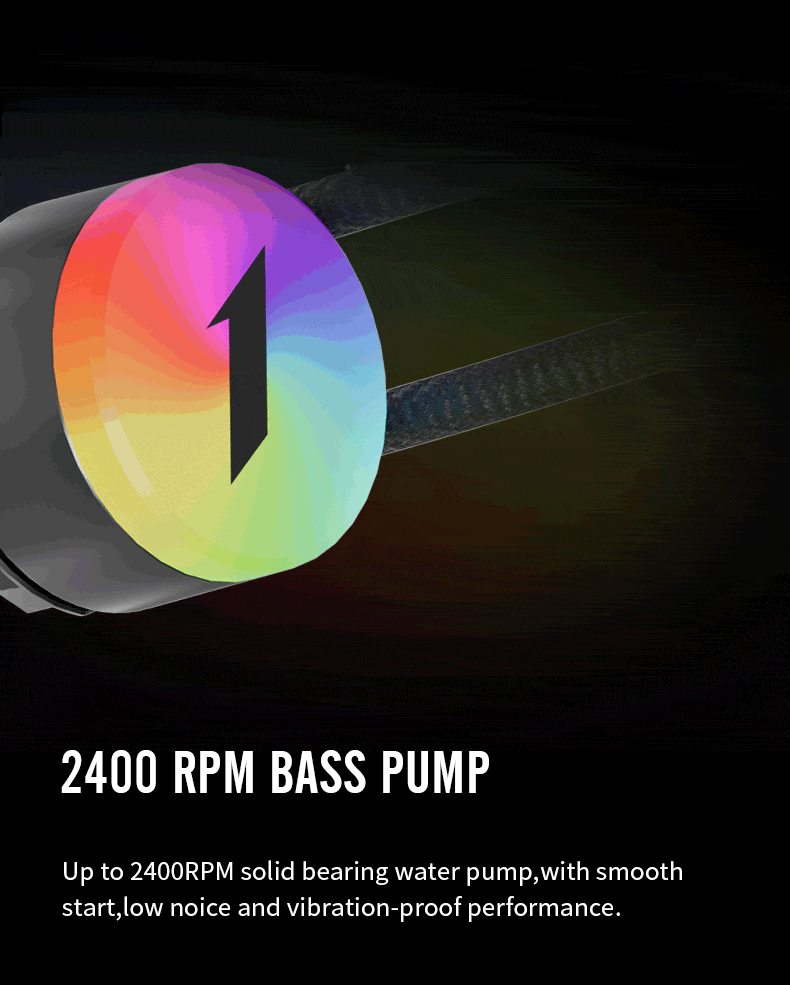

PUMP SPEED

2500 RPM ± 10%

PUMP NOISE

30 dB(A)

PUMP CONNECTOR

3 pin + aRGB

PUMP RATED VOLTAGE

12V DC

PUMP RATED CURRENT

≤ 0.3 A

PUMP POWER CONSUMPTION

≤ 3.6 W

FAN QTY

TS2 240: 2 pcs
TS2 360: 3 pcs

FAN DIMENSIONS

120 x 120 x 25 mm

FAN AIRFLOW

75.61 CFM

FAN AIR PRESSURE

2.2 mmAq

FAN NOISE

≤ 36.5 dB(A)

FAN CONNECTOR

4 pin (PWM) + aRGB

FAN BEARING TYPE

Hydraulic bearing

FAN SPEED

600 - 1800 RPM ± 10%

FAN RATED VOLTAGE

12V DC

FAN RATED CURRENT

0.28 A ± 10% MAX

FAN POWER CONSUMPTION

3.36 W ± 10%
