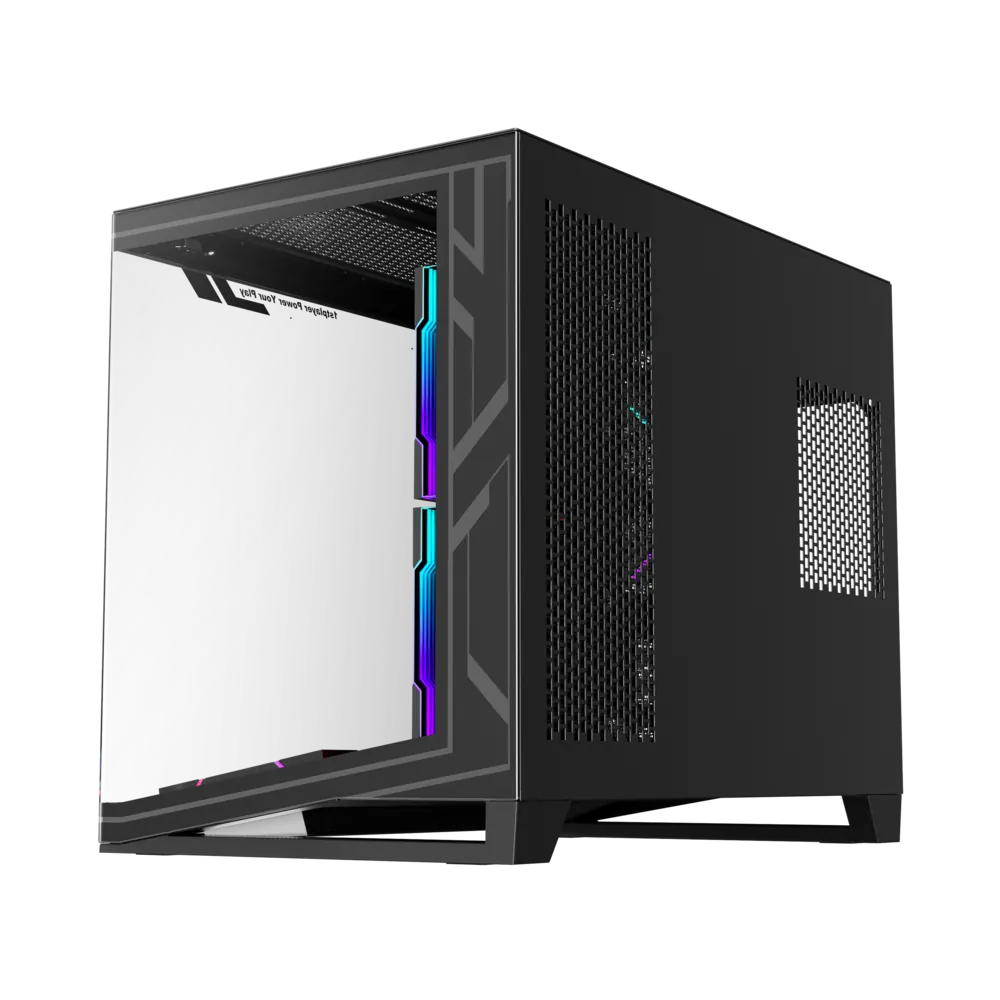

SG6

BUILT TO BE SEEN

Support GPU length up to 400 mm
Support CPU cooler height up to 160 mm
Support Top: 240 mm / 360mm radiator

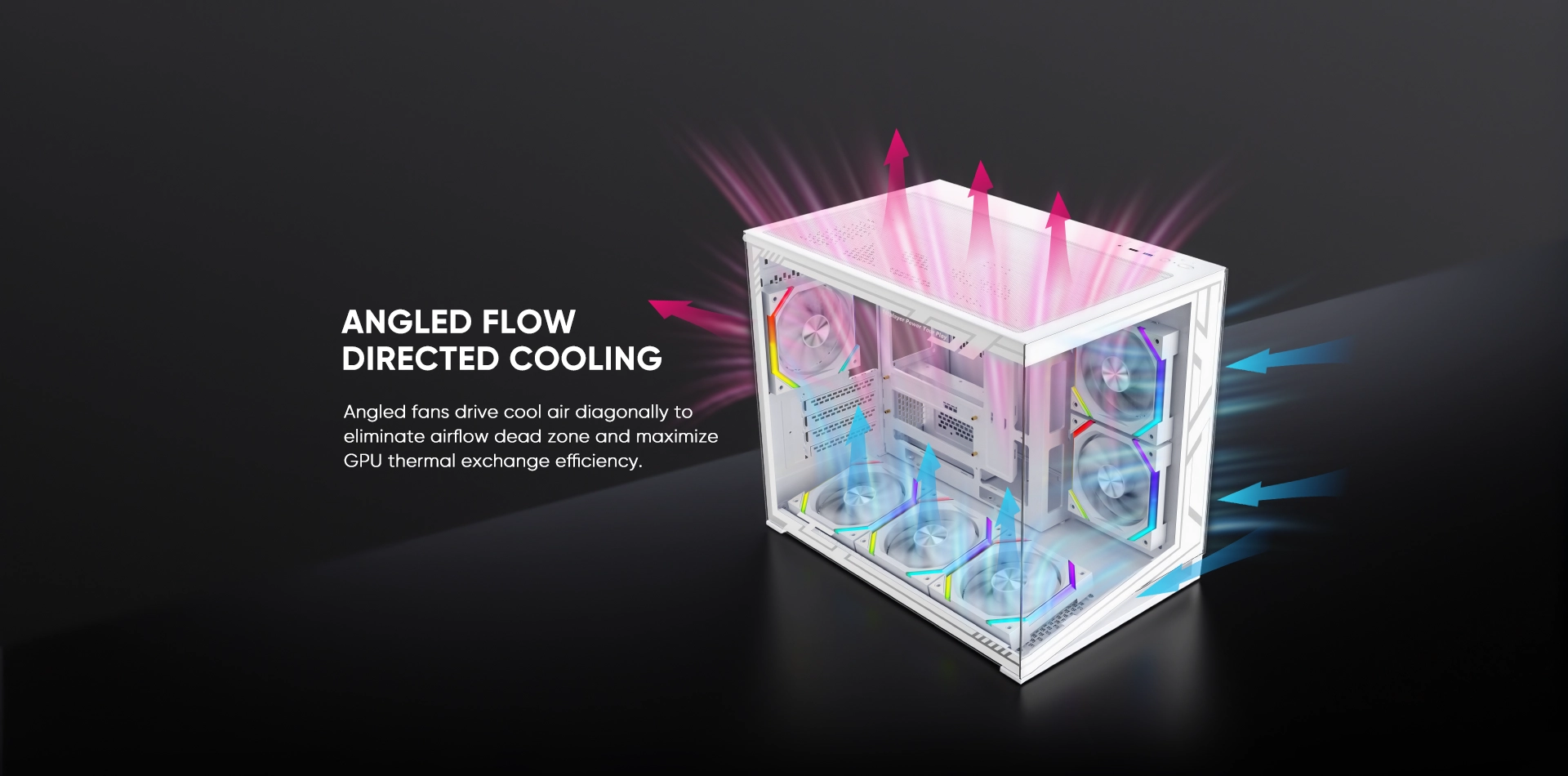

Slanted bottom and angled fans channel vertical airflow for peak thermals.

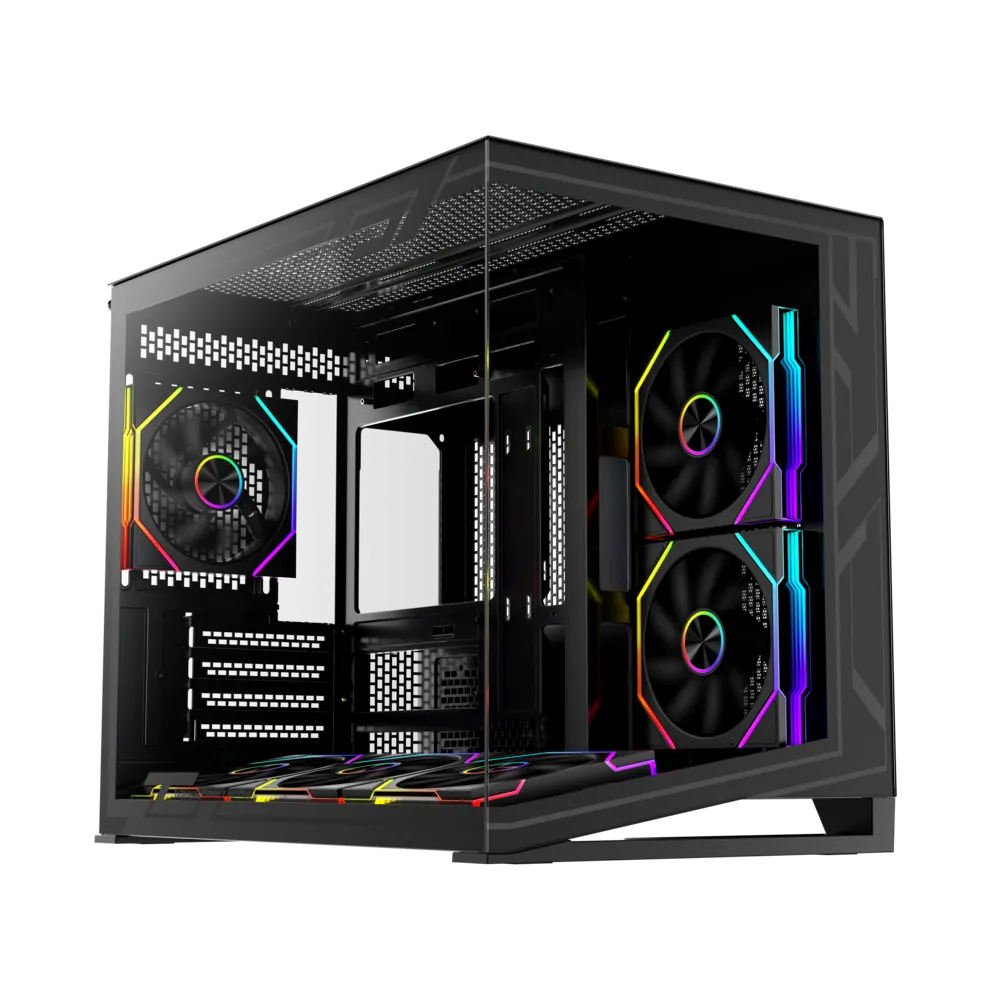

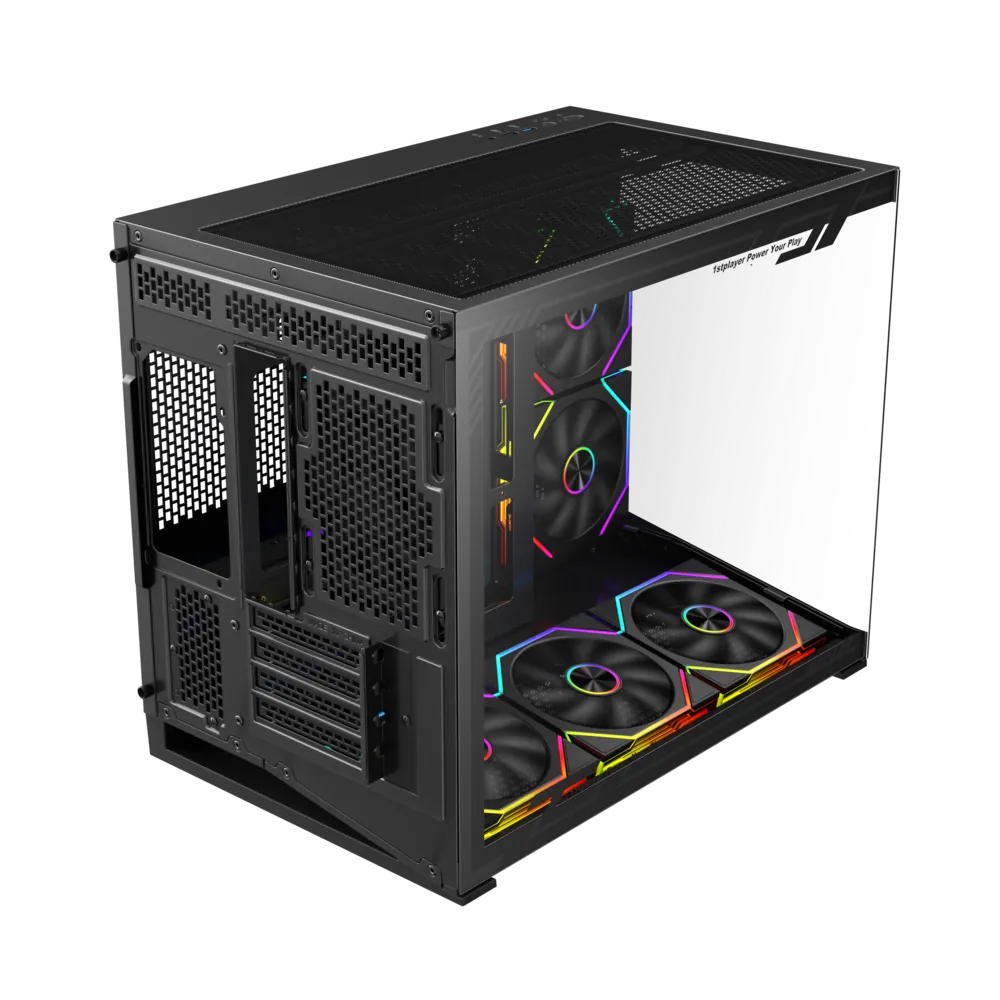

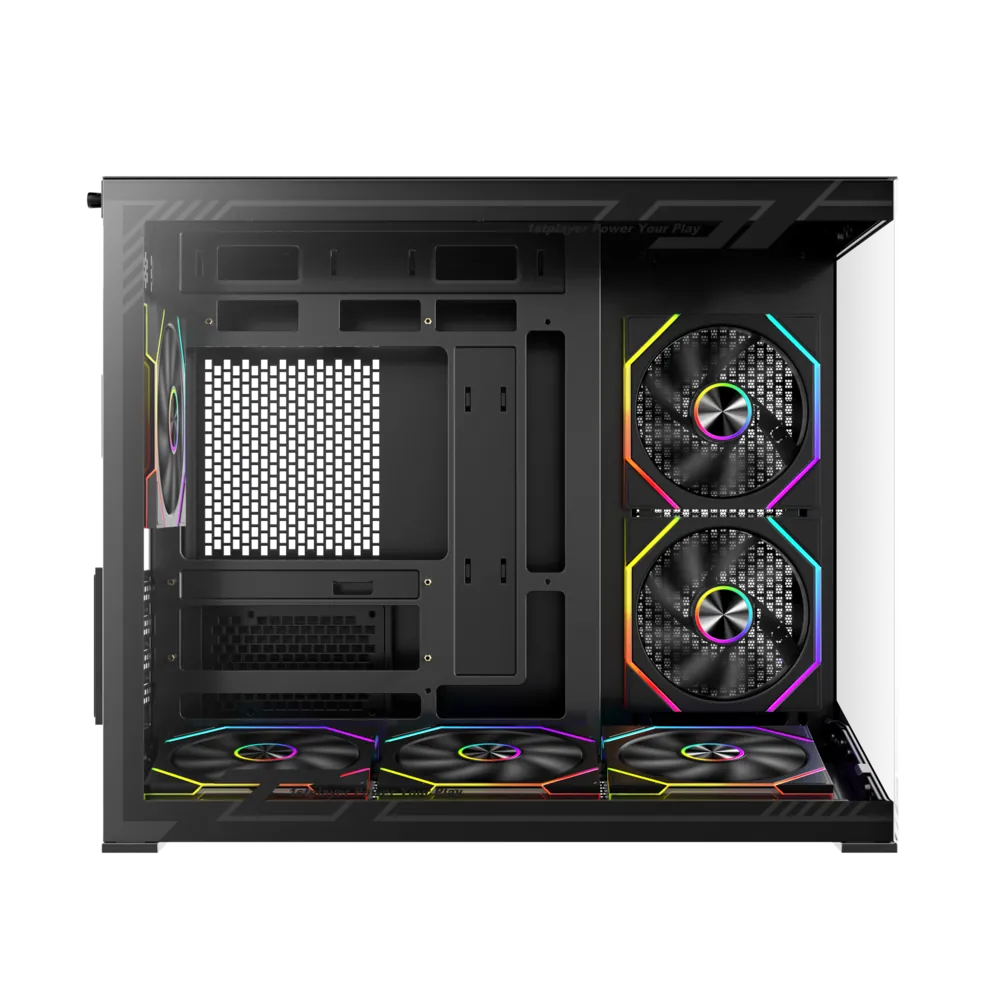

Column-less design joins glass panels seamlessly for a 270-degree hardware showcase.

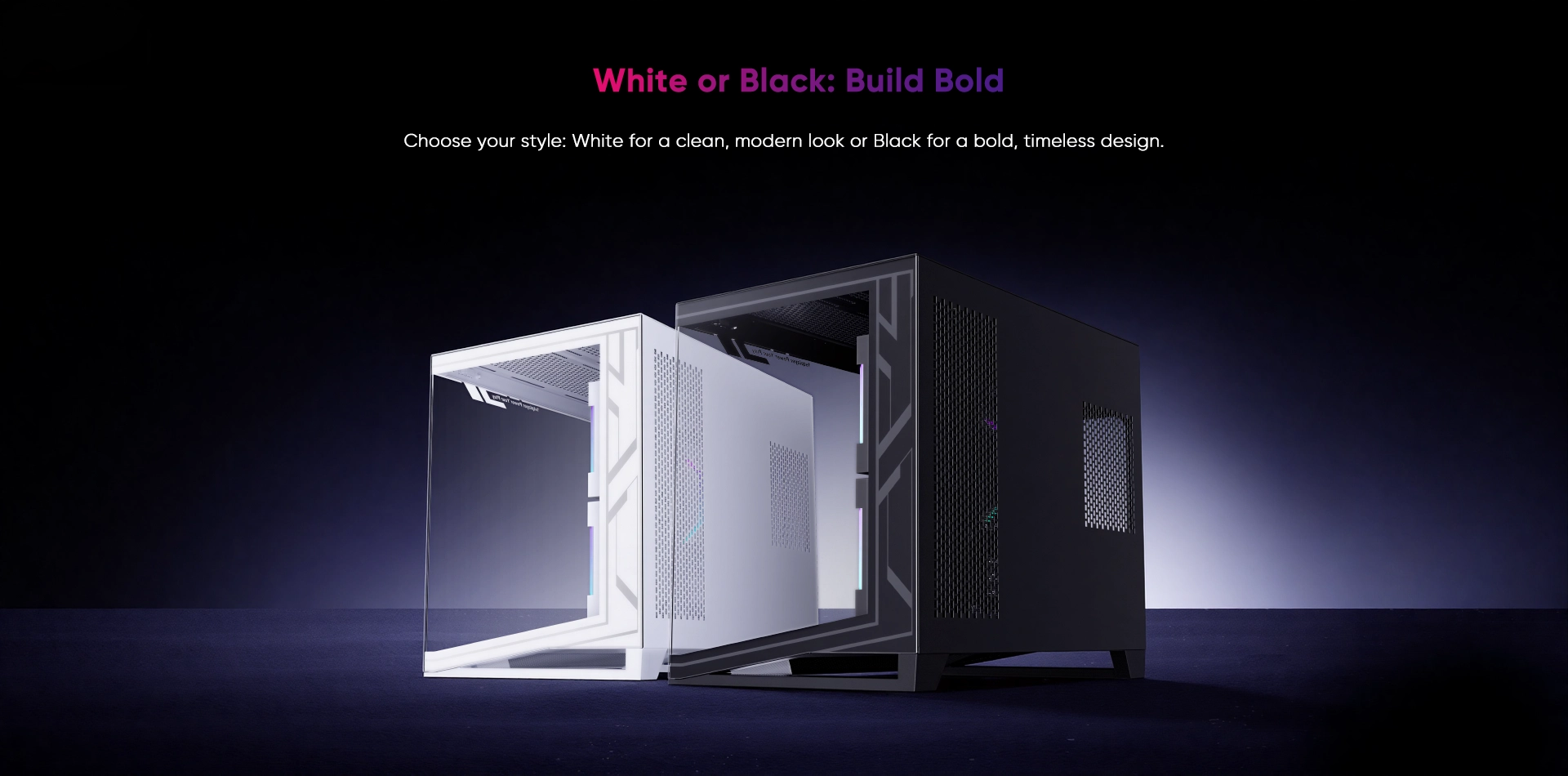

Color

MODEL

SG6

STRUCTURE DIMENSIONS (L x W x H)

420 x 280 x 355 mm

PRODUCT DIMENSIONS (L x W x H)

420 x 280 x 360 mm

PACKAGE DIMENSIONS (L x W x H)

408 x 342 x 490 mm

STRUCTURE THICKNESS

0.5 mm

MATERIALS

0.5 mm SPCC, tempered glass, plastic

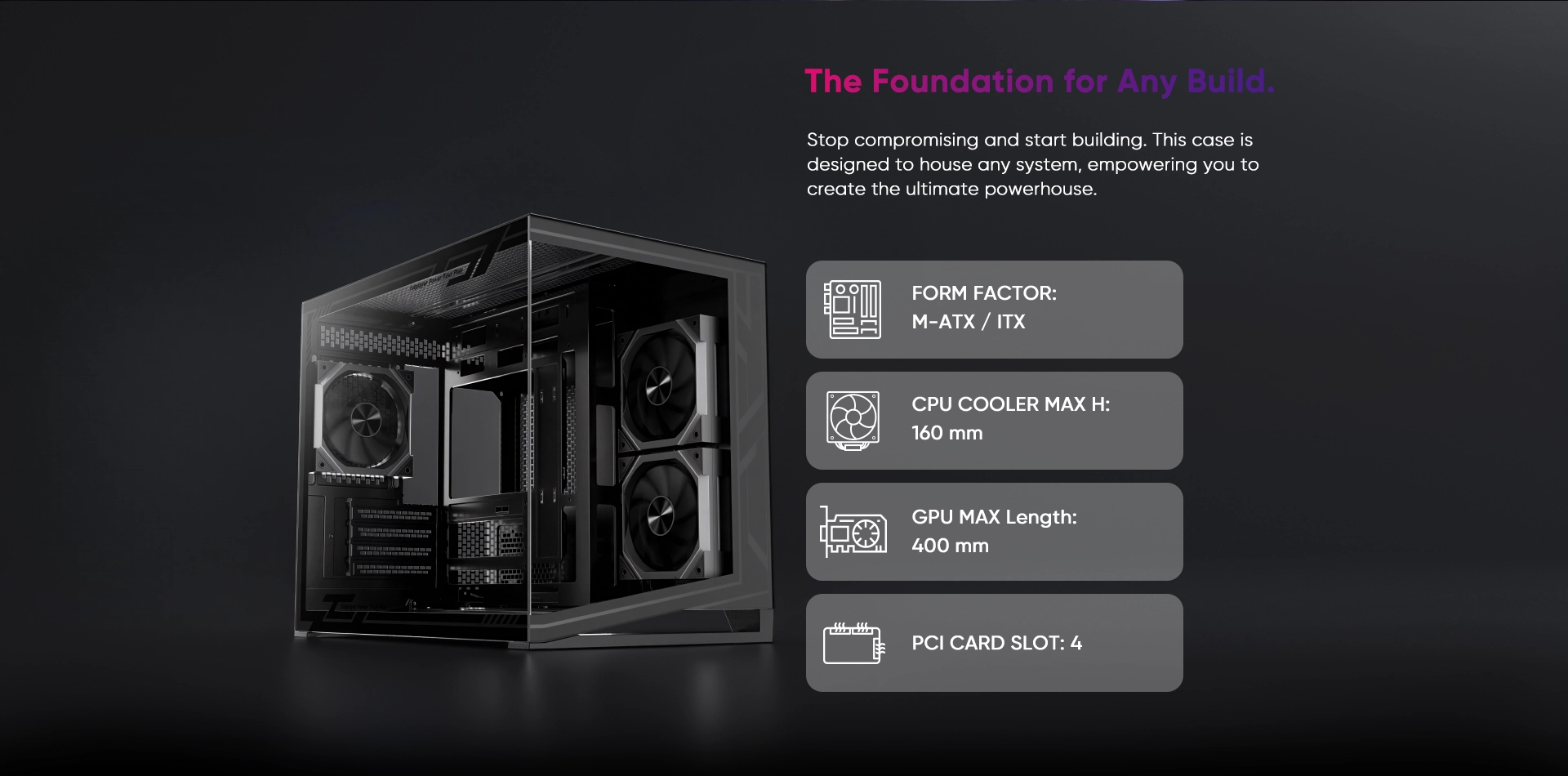

FORM FACTOR

M-ATX / ITX

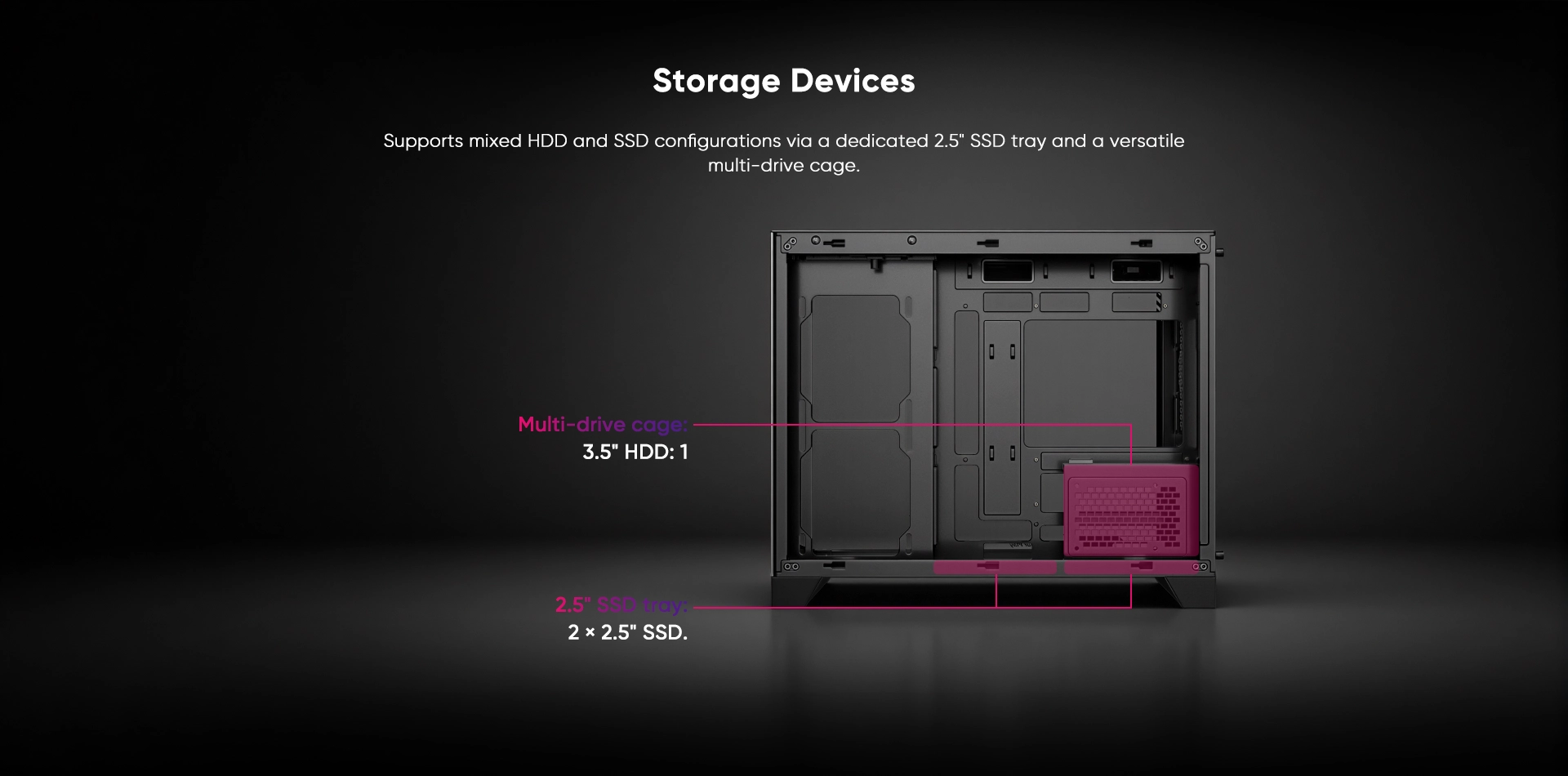

DRIVE BAYS

3.5" HDD: 1, 2.5" SSD: 2

CPU COOLER MAX HEIGHT

160 mm

GPU MAX LENGTH

400 mm

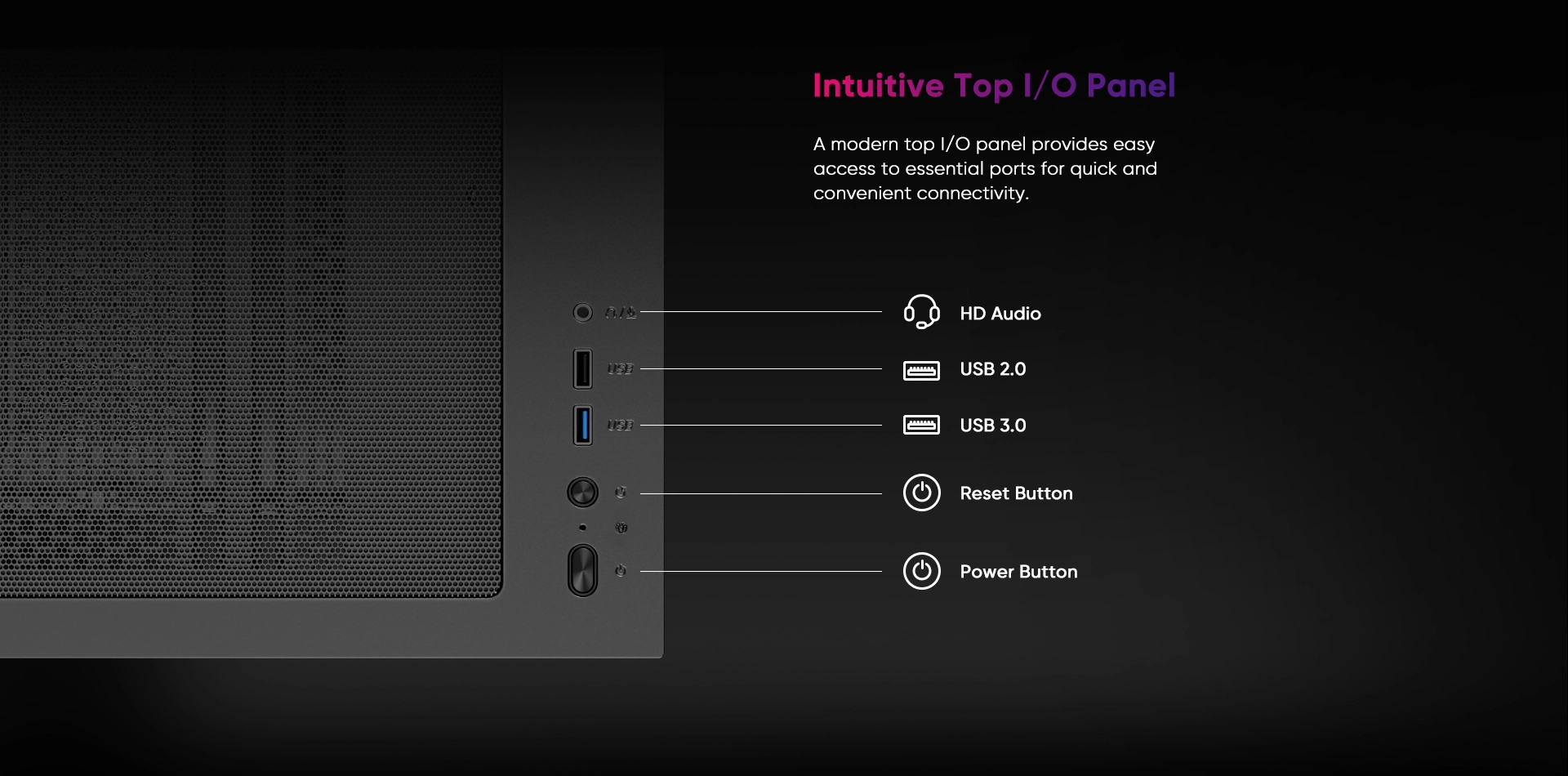

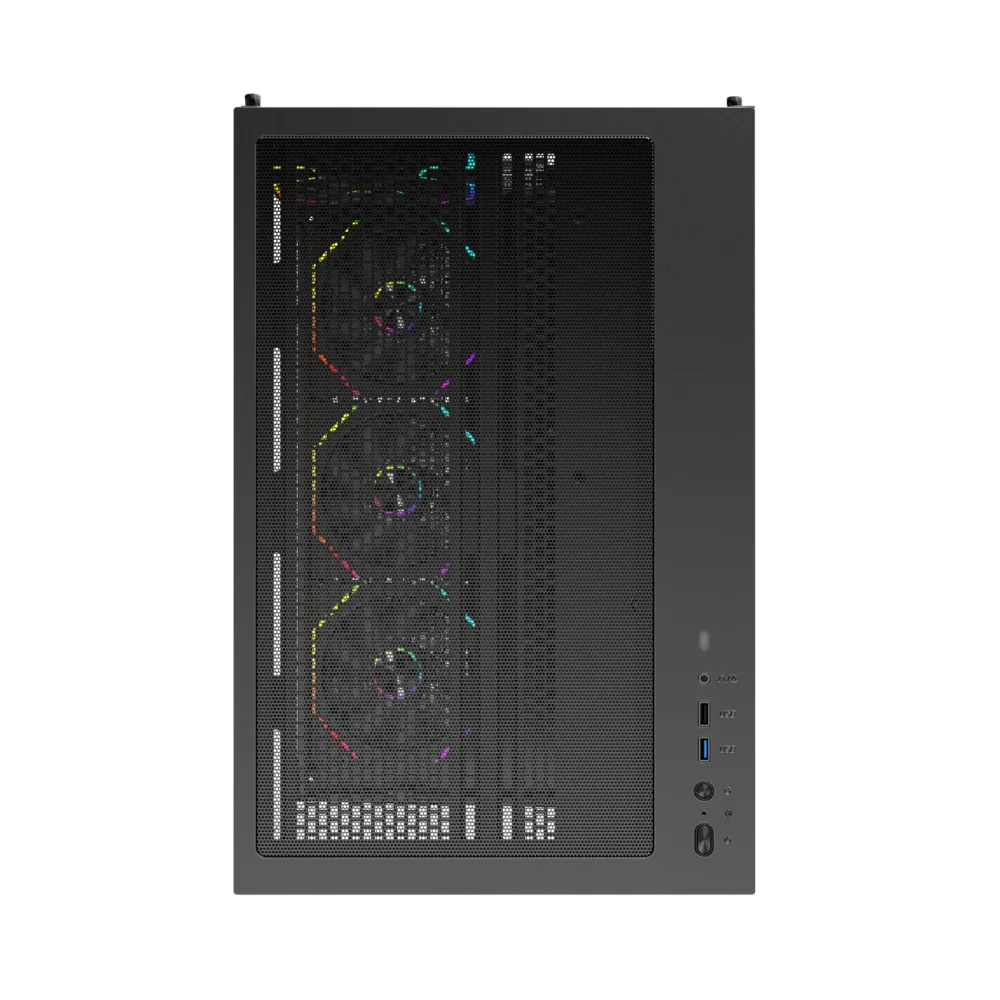

I/O PANEL

USB 3.0 x 1, USB 2.0 x 1, HD Audio

PCI CARD SLOT

4

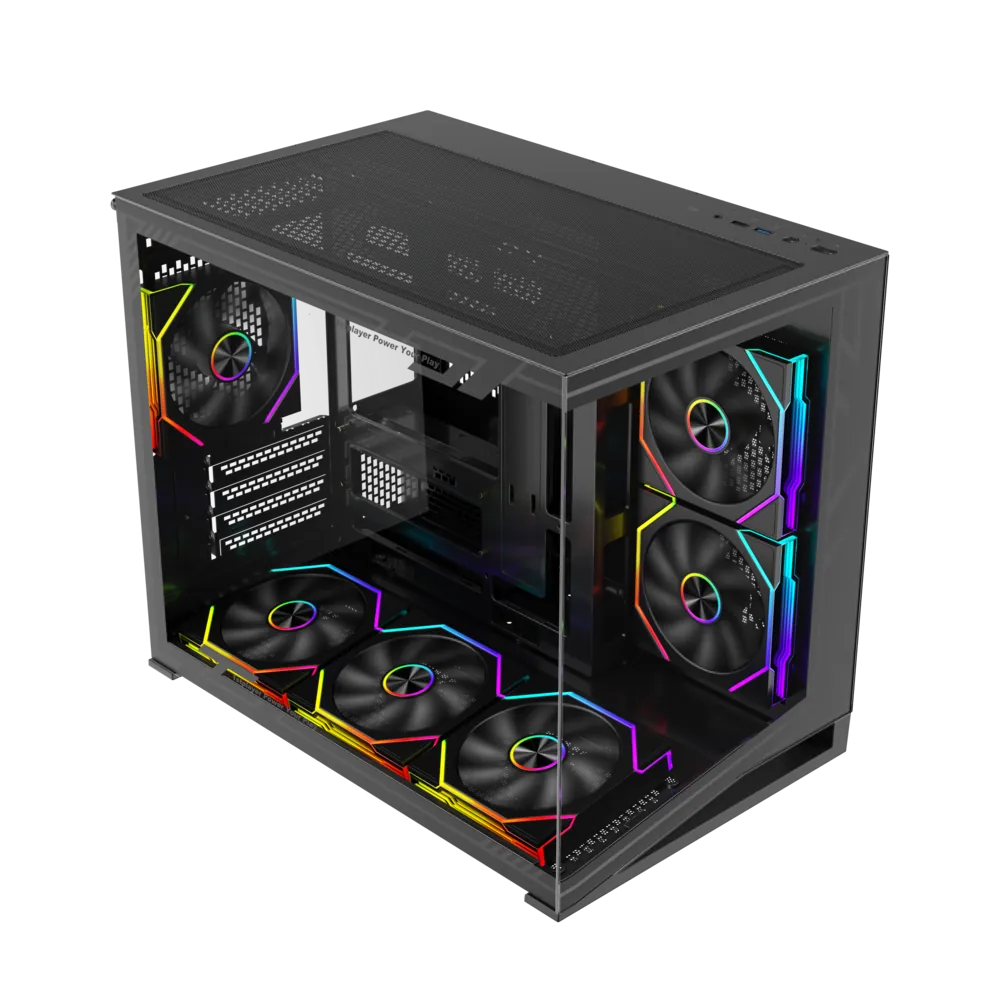

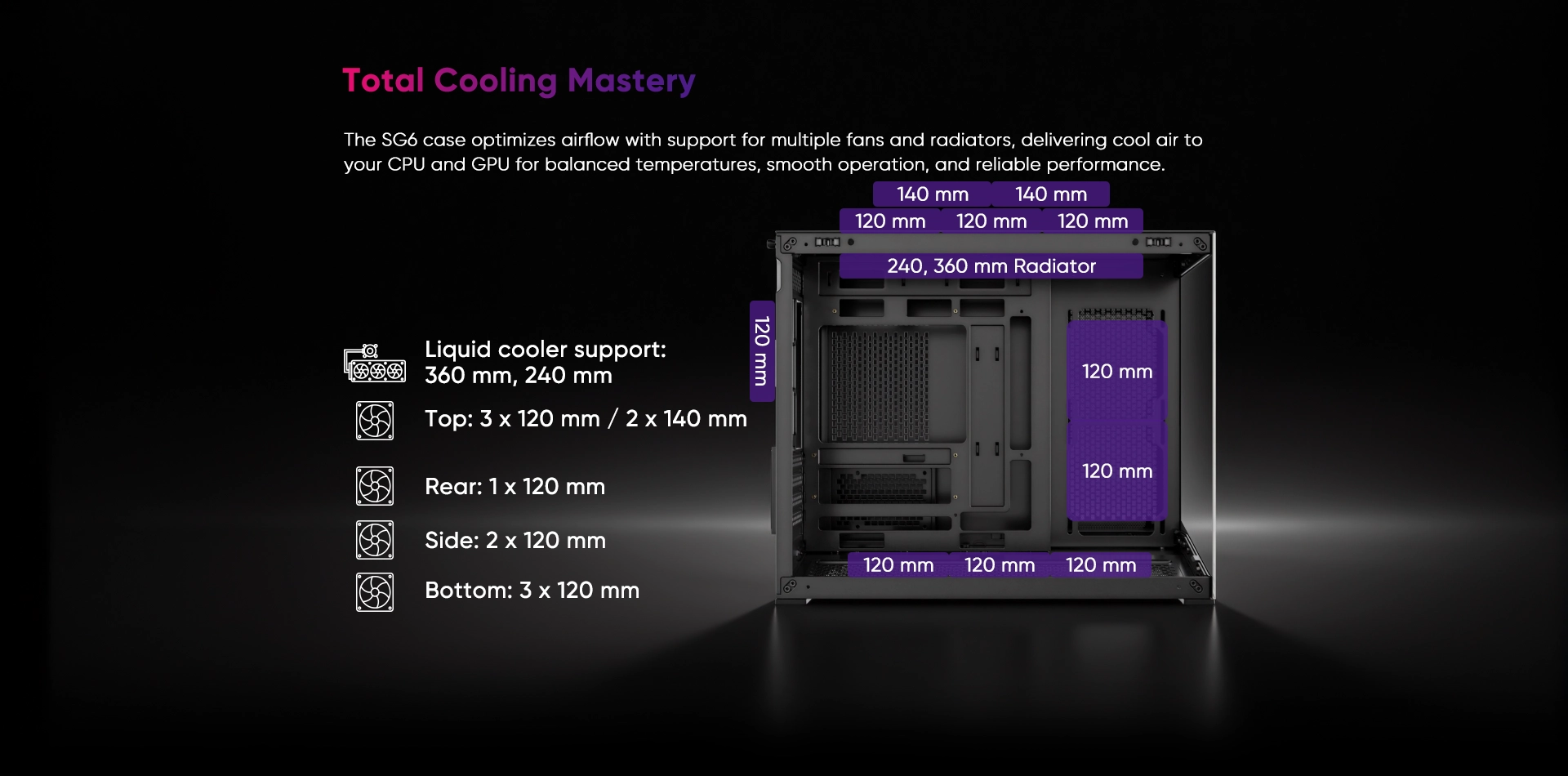

FAN SUPPORT

Top: 3 x 120 mm / 2 x 140 mm
Side: 2 x 120 mm
Rear: 1 x 120 mm

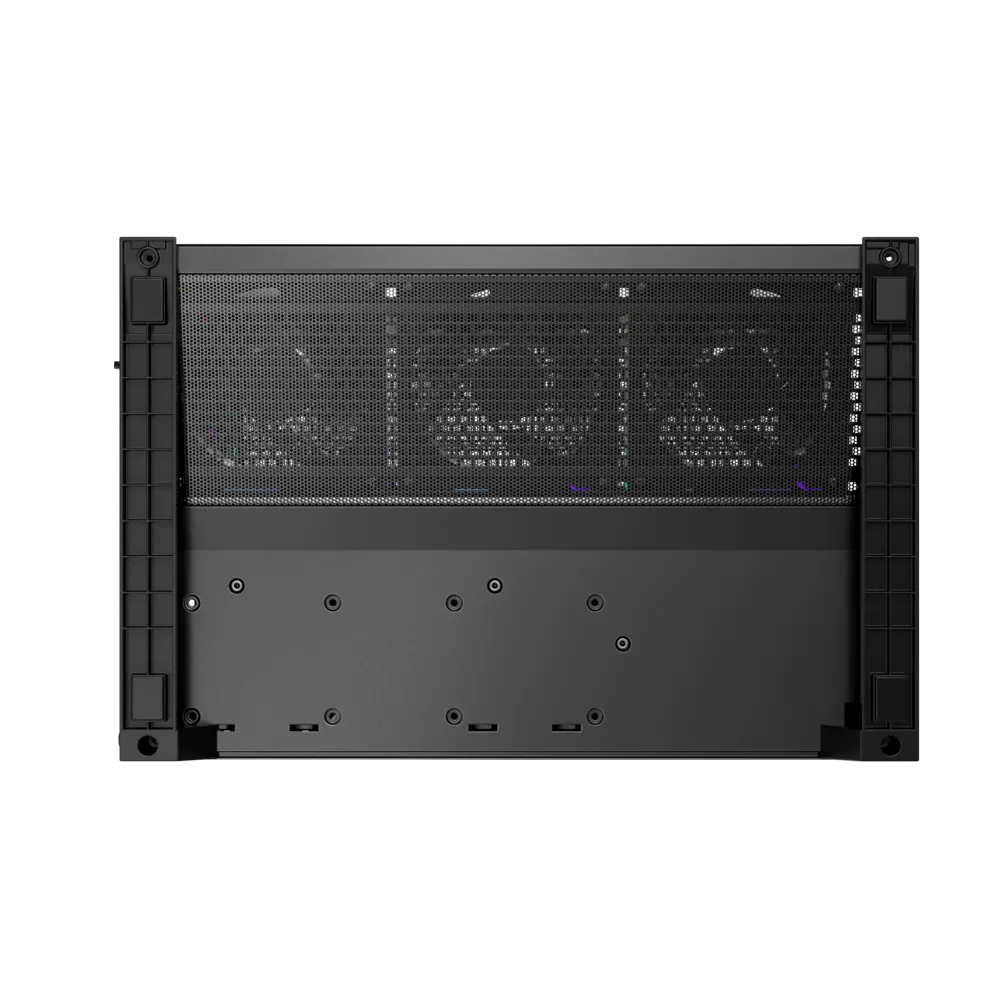

Bottom: 3 x 120 mm

POWER SUPPLY SUPPORT

Top Mounted ATX

WEIGHT

N.W.: 4.65 kg ±10%
G.W.: 5.65 kg ±10%

Product Comparison

Compare this product with other models in our lineup to find the perfect fit for your needs.

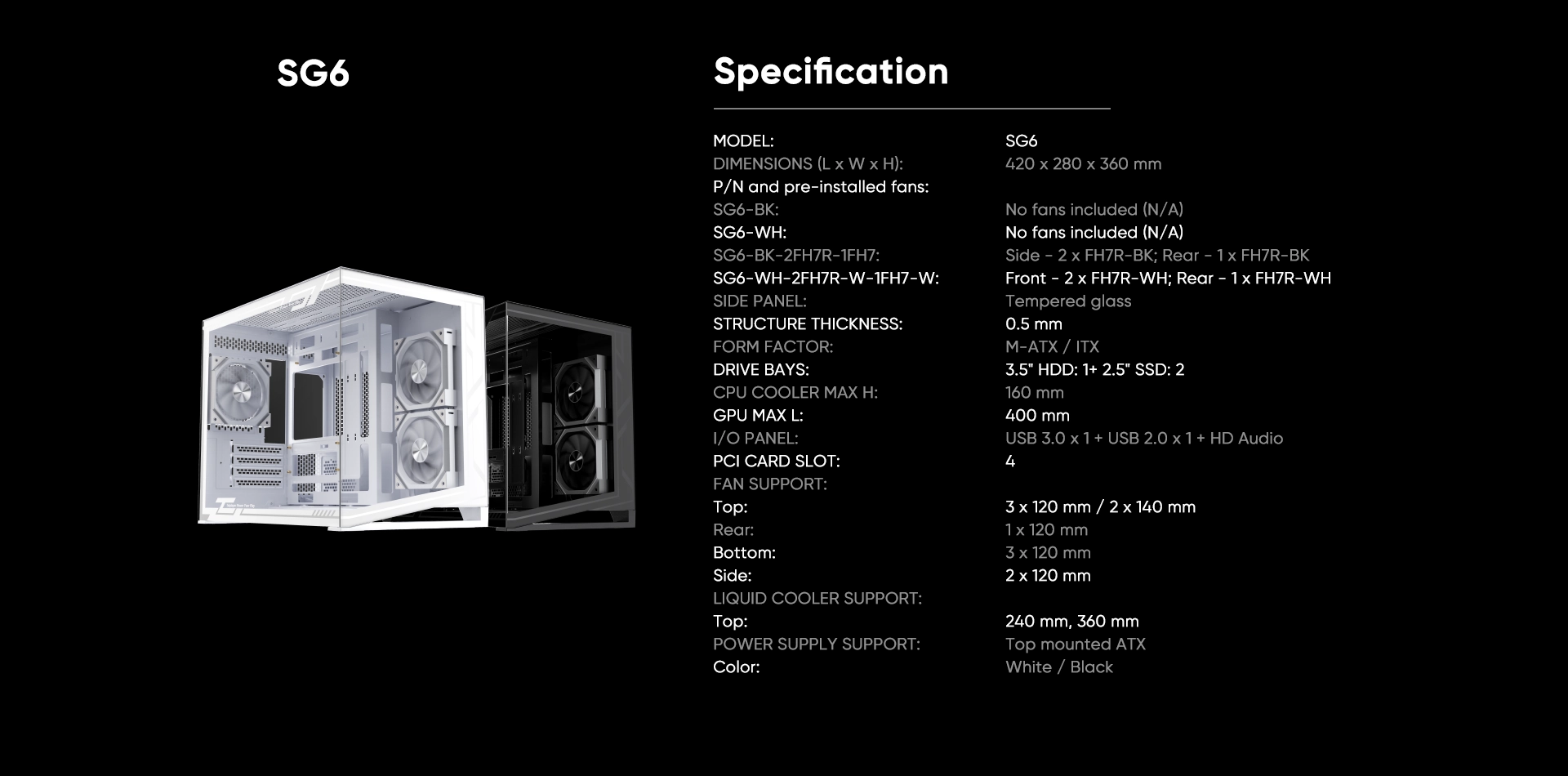

SG6-Specification
