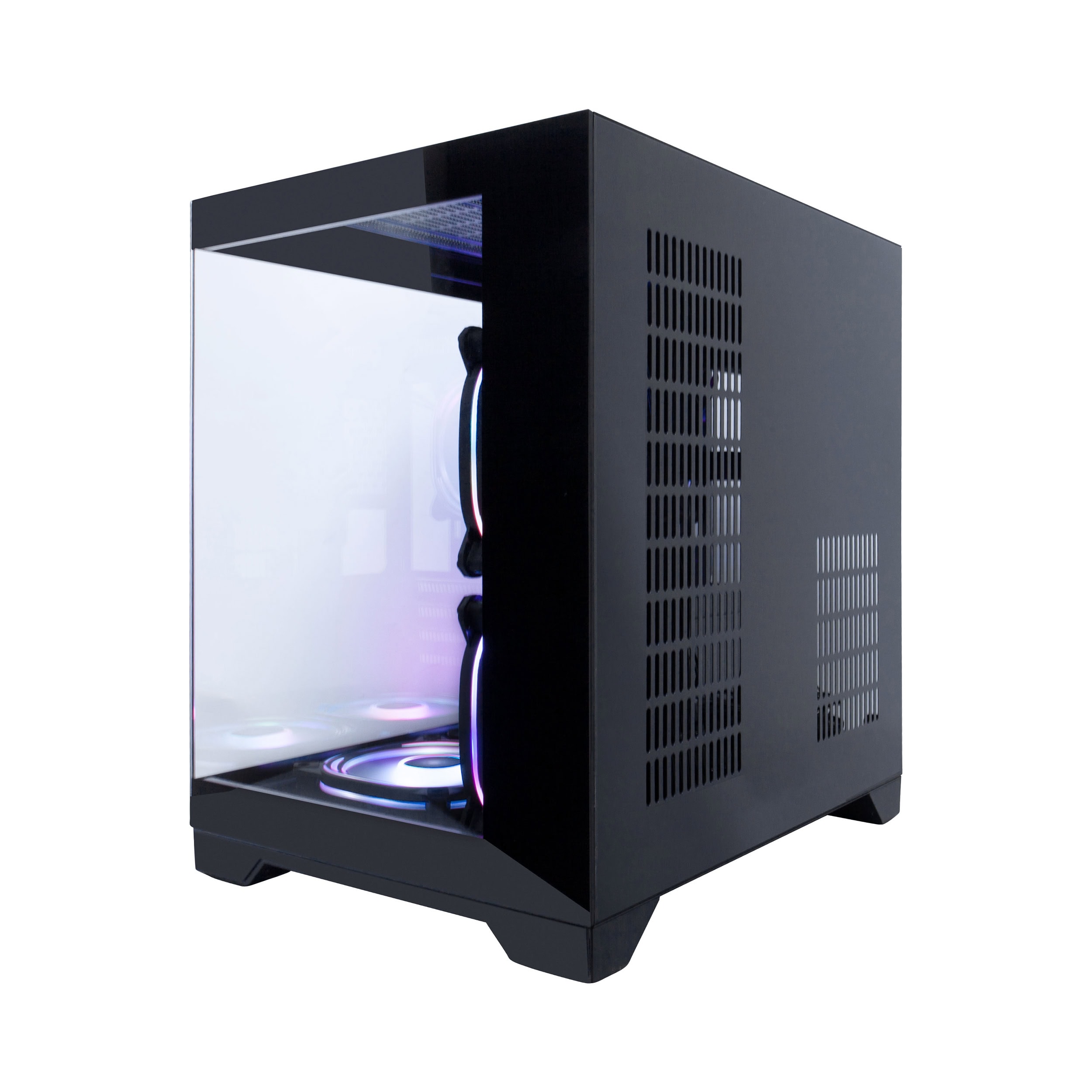

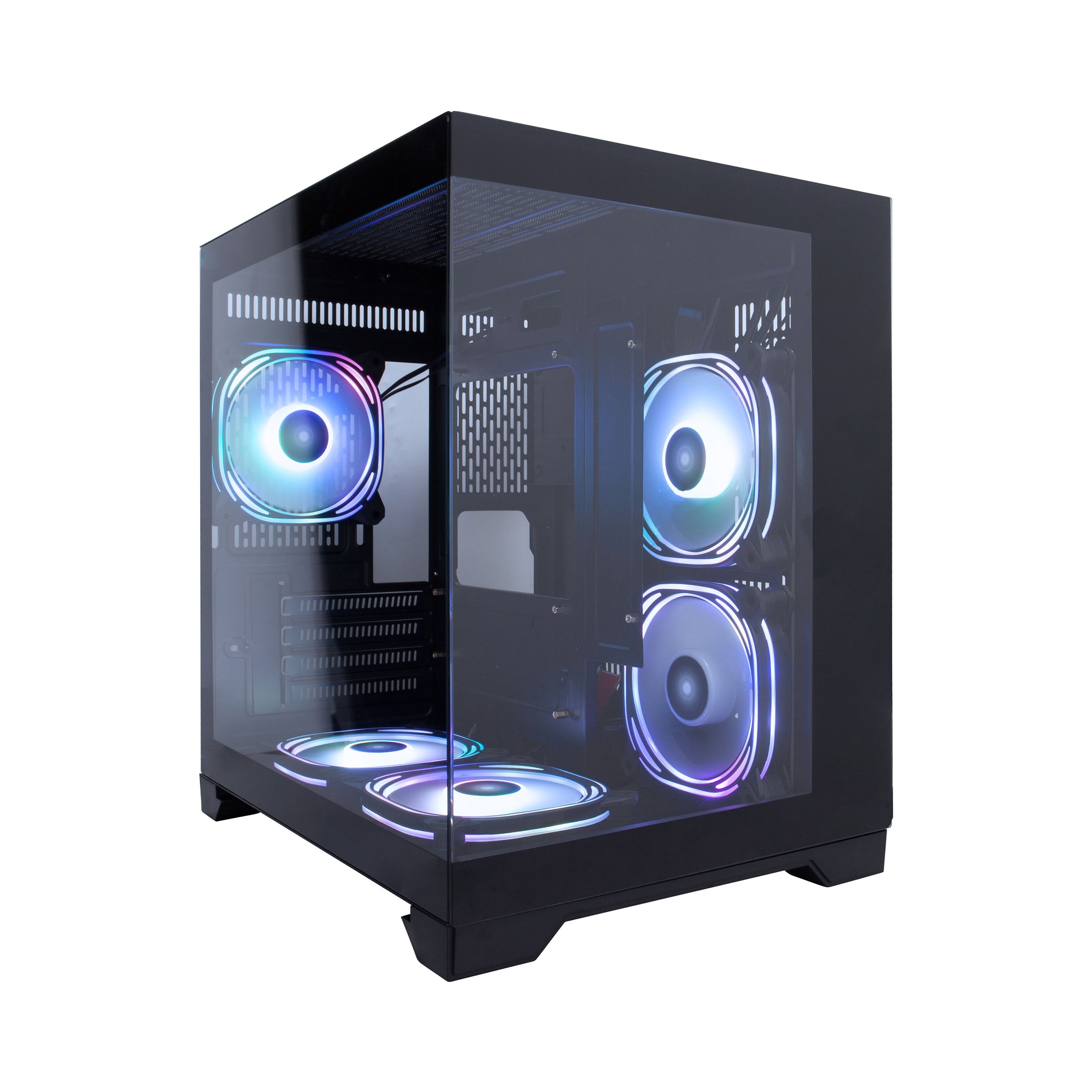

MV5-TP

MV5-TRANSPARENT

Support up to 7 fans
MAX GPU length: 330 mm
MAX CPU cooler height: 157 mm
Support 240 mm liquid cooling at the top and front
Tempered glass panel on front and left offer a clear view of components

*Computer parts are not included. Cooling fan may vary among different countries/regions.

Color

MODEL

MV5-TP

STRUCTURE DIMENSIONS (L x W x H)

345 x 277 x 350 mm

PRODUCT DIMENSIONS (L x W x H)

360 x 282 x 377 mm

PACKAGE DIMENSIONS (L x W x H)

435 x 340 x 425 mm

STRUCTURE THICKNESS

0.5 mm

MATERIALS

SPCC 0.5 mm
Front / Left Panel: Tempered glass

FORM FACTOR

M-ATX / ITX

DRIVE BAYS

3.5" HDD: 1, 2.5" SSD: 2

CPU COOLER MAX HEIGHT

157 mm

GPU MAX LENGTH

330 mm

I/O PANEL

USB 3.0 x 2, HD Audio

PCI CARD SLOT

4

FAN SUPPORT

Front: 2 x 12 cm
Top: 2 x 12 cm
Rear: 1 x 12 cm
Bottom: 2 x 12 cm

LIQUID COOLING SUPPORT

Top: 24 cm

POWER SUPPLY SUPPORT

Bottom mounted

WEIGHT

N.W.: 4.1 kg
G.W.: 4.9 kg

Product Comparison

Compare this product with other models in our lineup to find the perfect fit for your needs.

MV5-TP Specs
