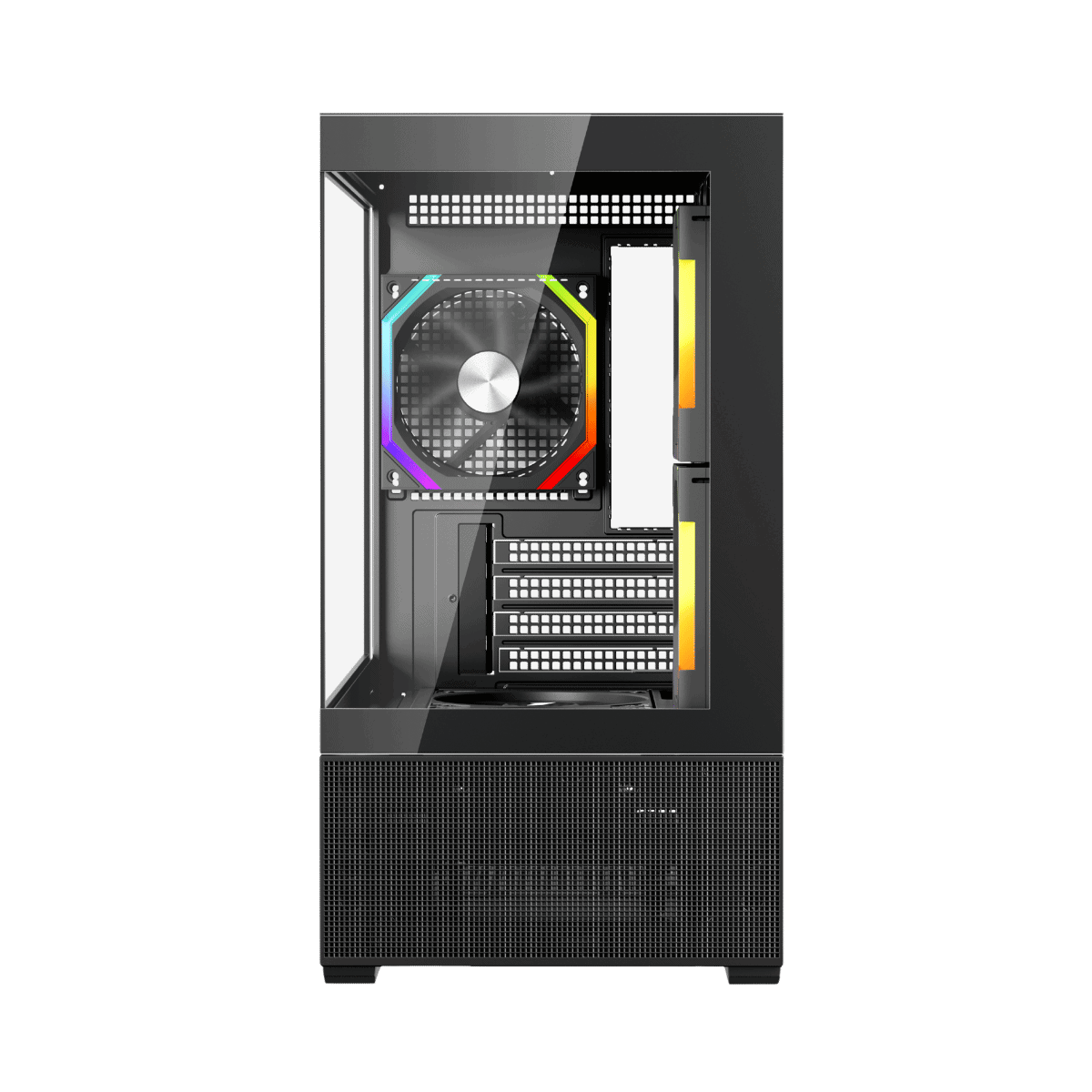

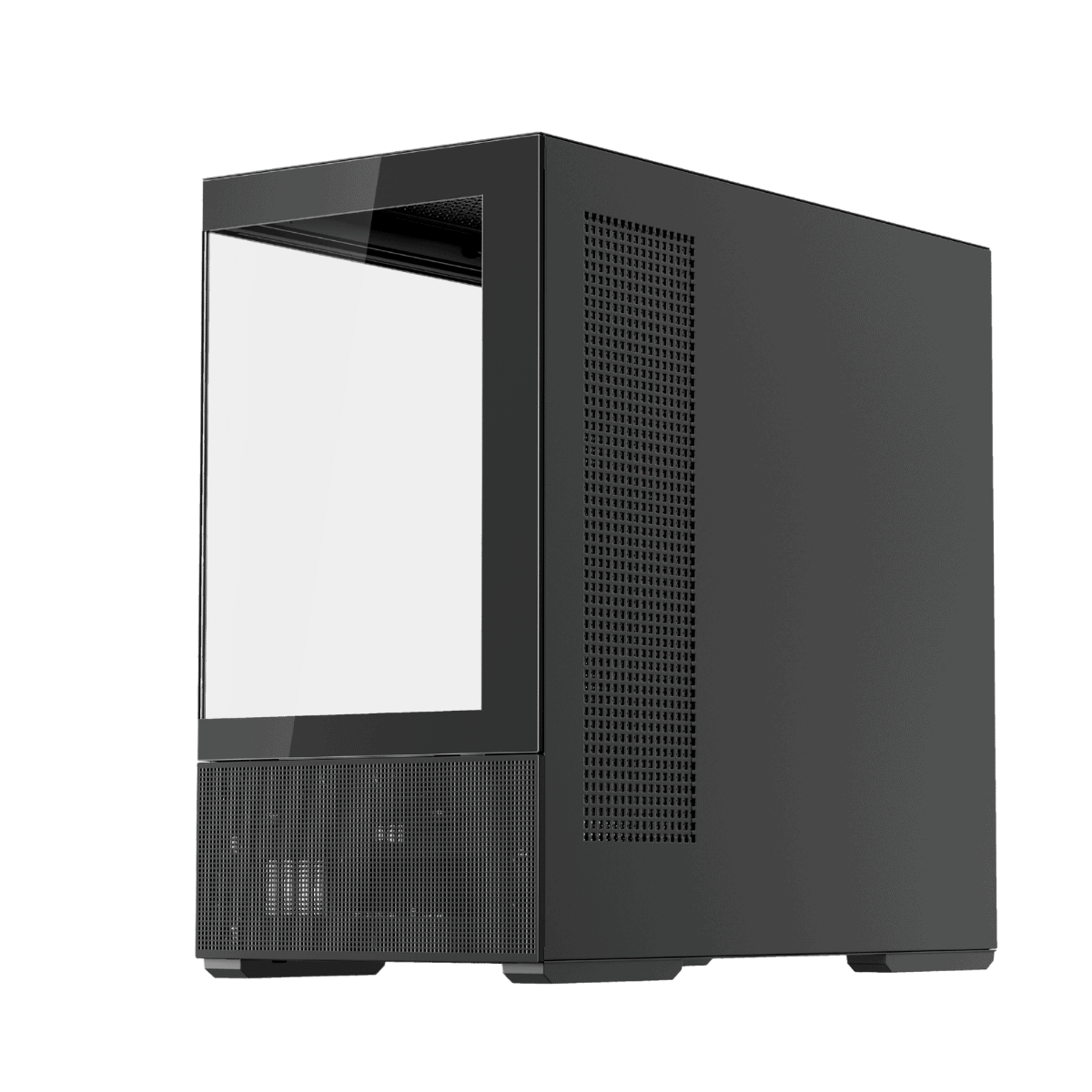

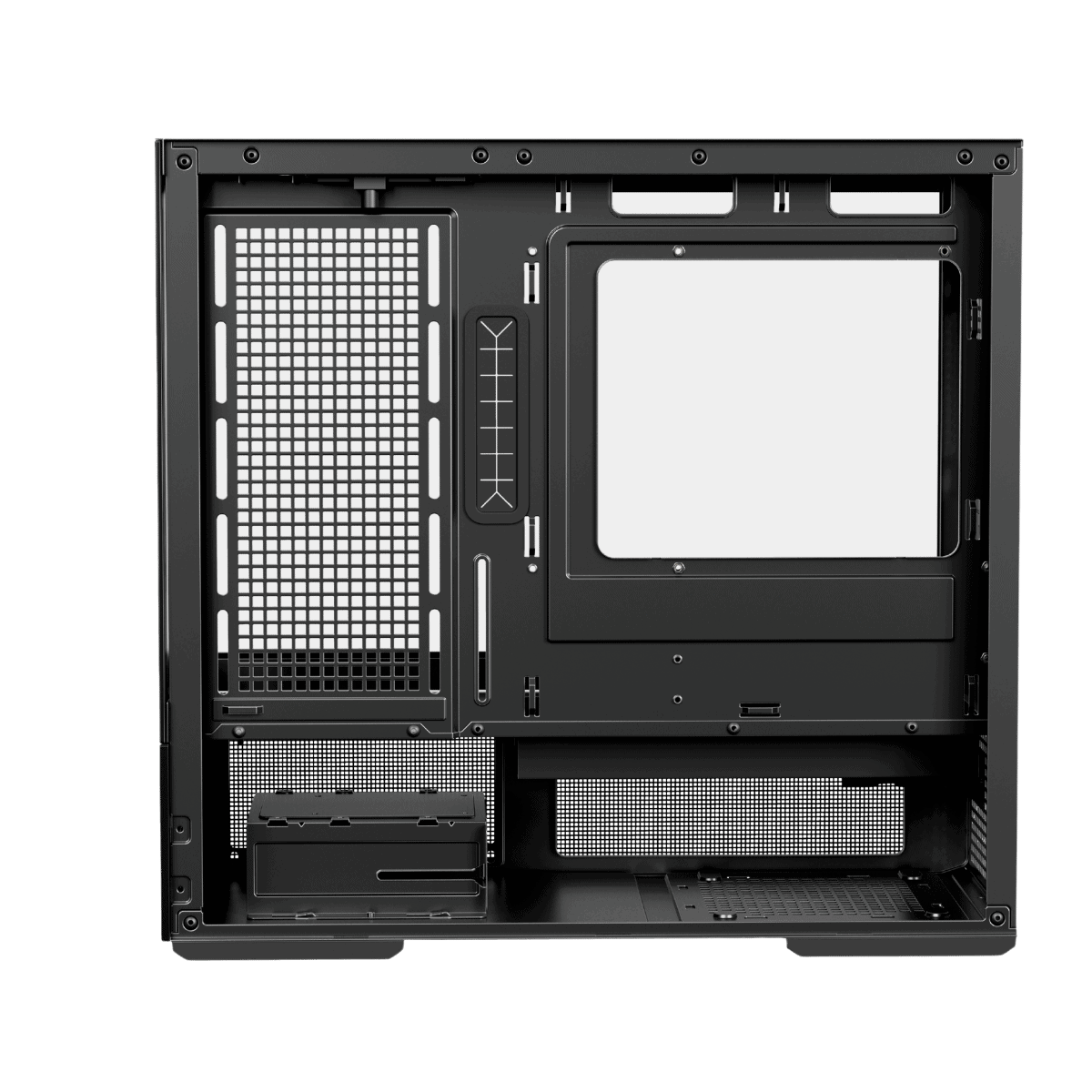

CV6

PC CASE

Support GPU length up to 390 mm
Support CPU cooler height up to 170 mm

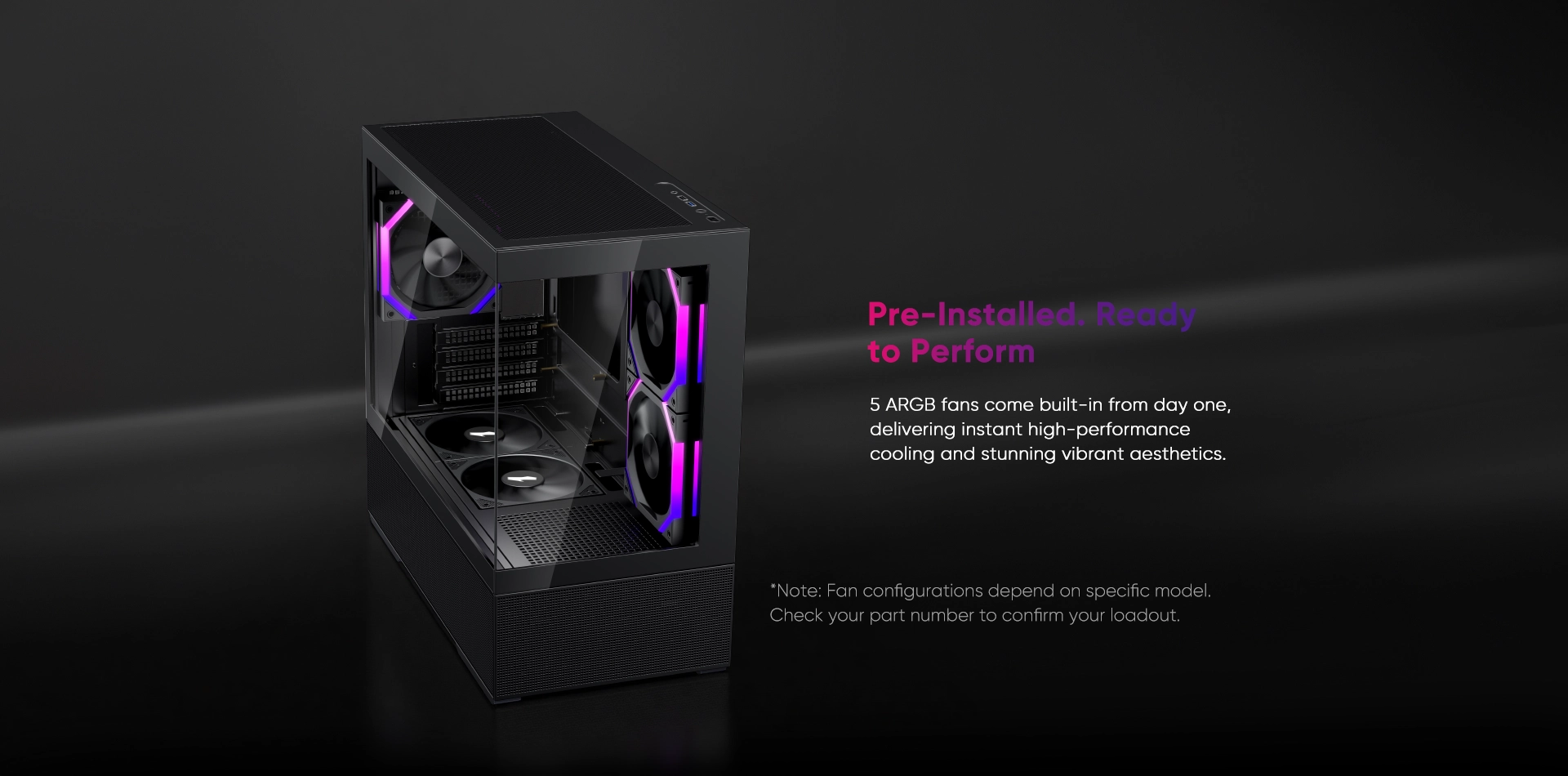

Support installing of up to 8 x 120 mm fans
Support 360 mm radiator on the top
Expansive mesh base draws cool air directly beneath vital components, boosting cooling capacity

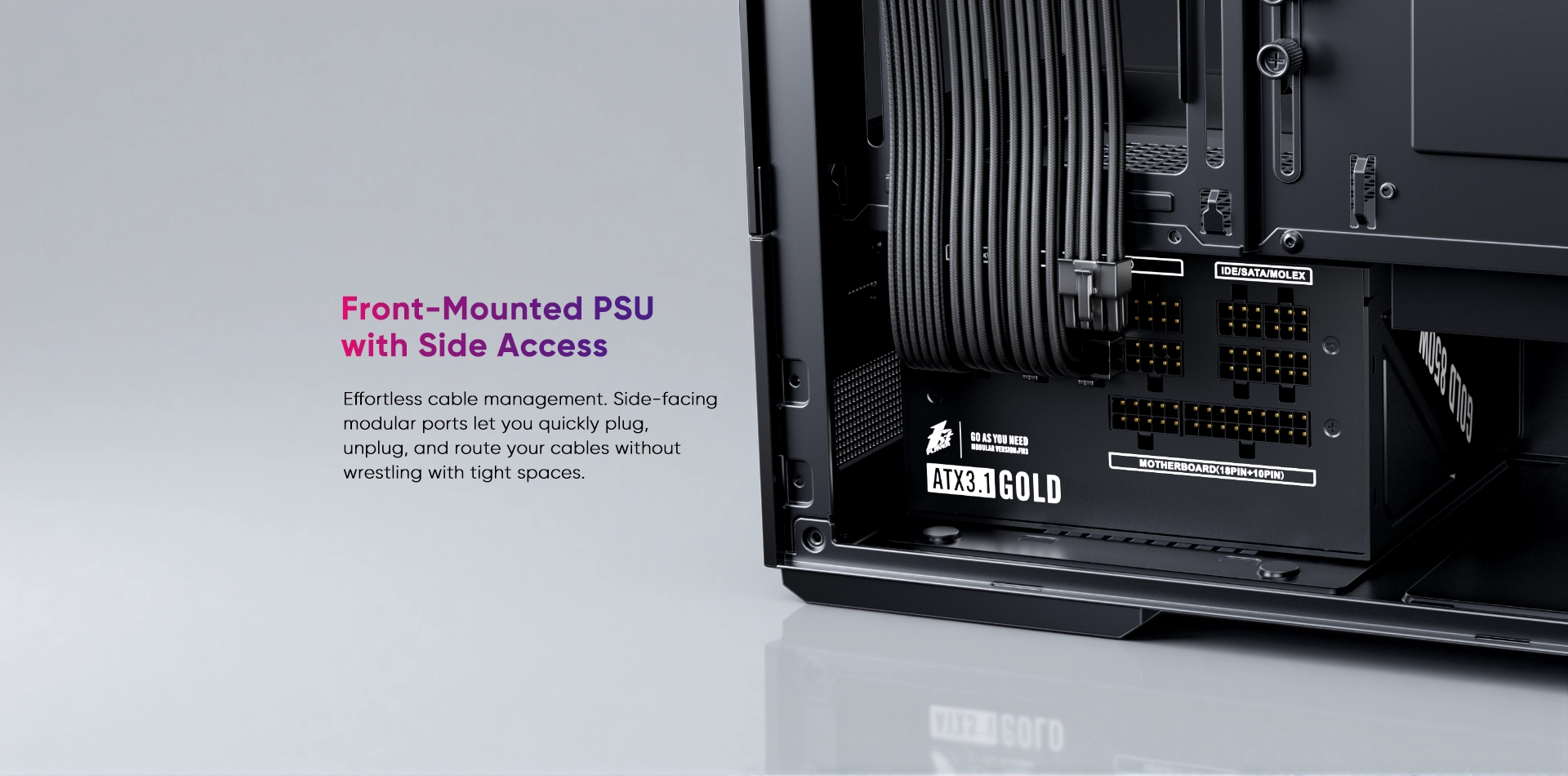

Bottom-front PSU placement allows for increased airflow beneath the fans and enhances GPU heat dissipation

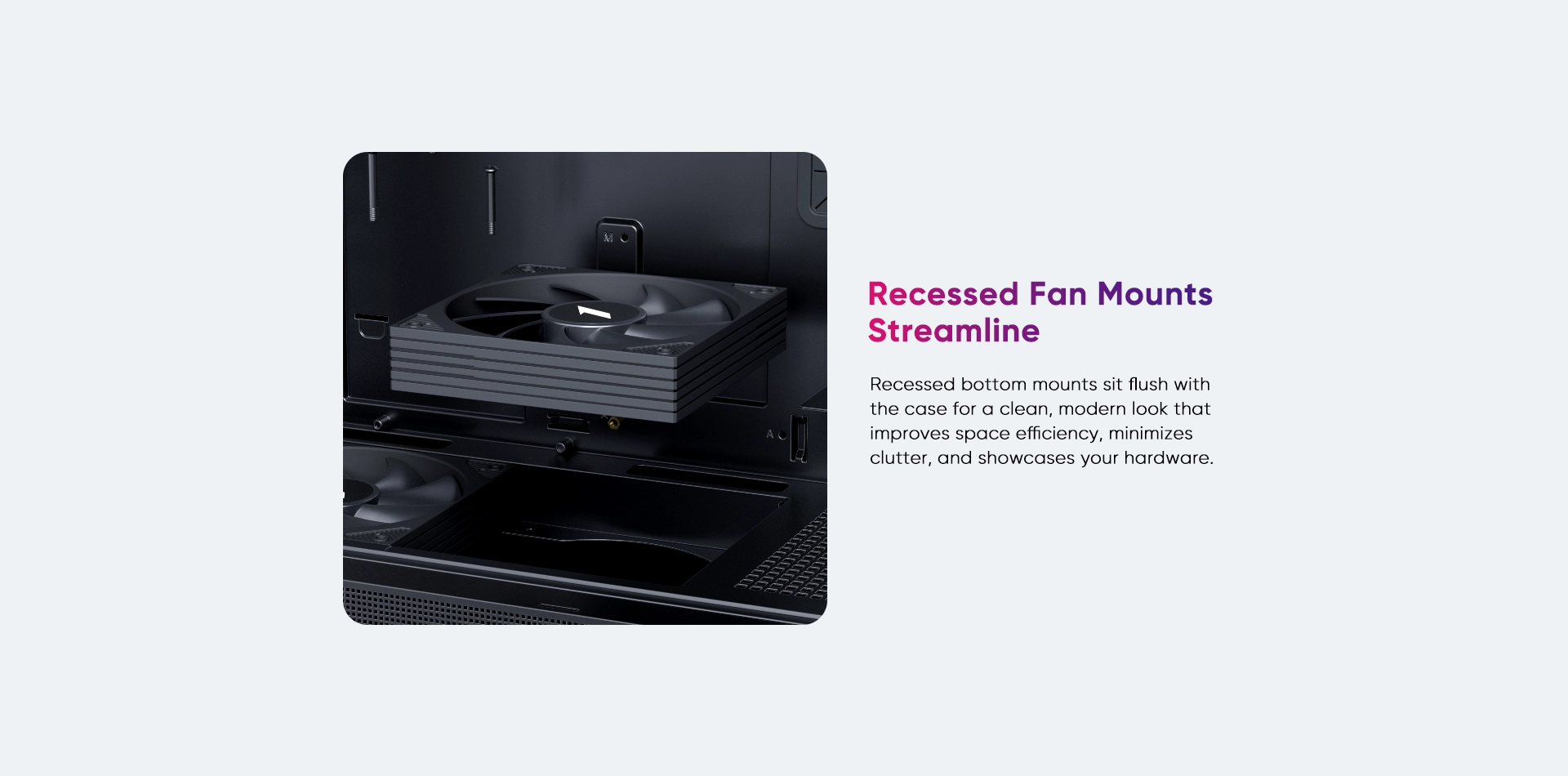

Recessed bottom fan mounts keep fans flush with the case, preserving a sleek, clean aesthetic

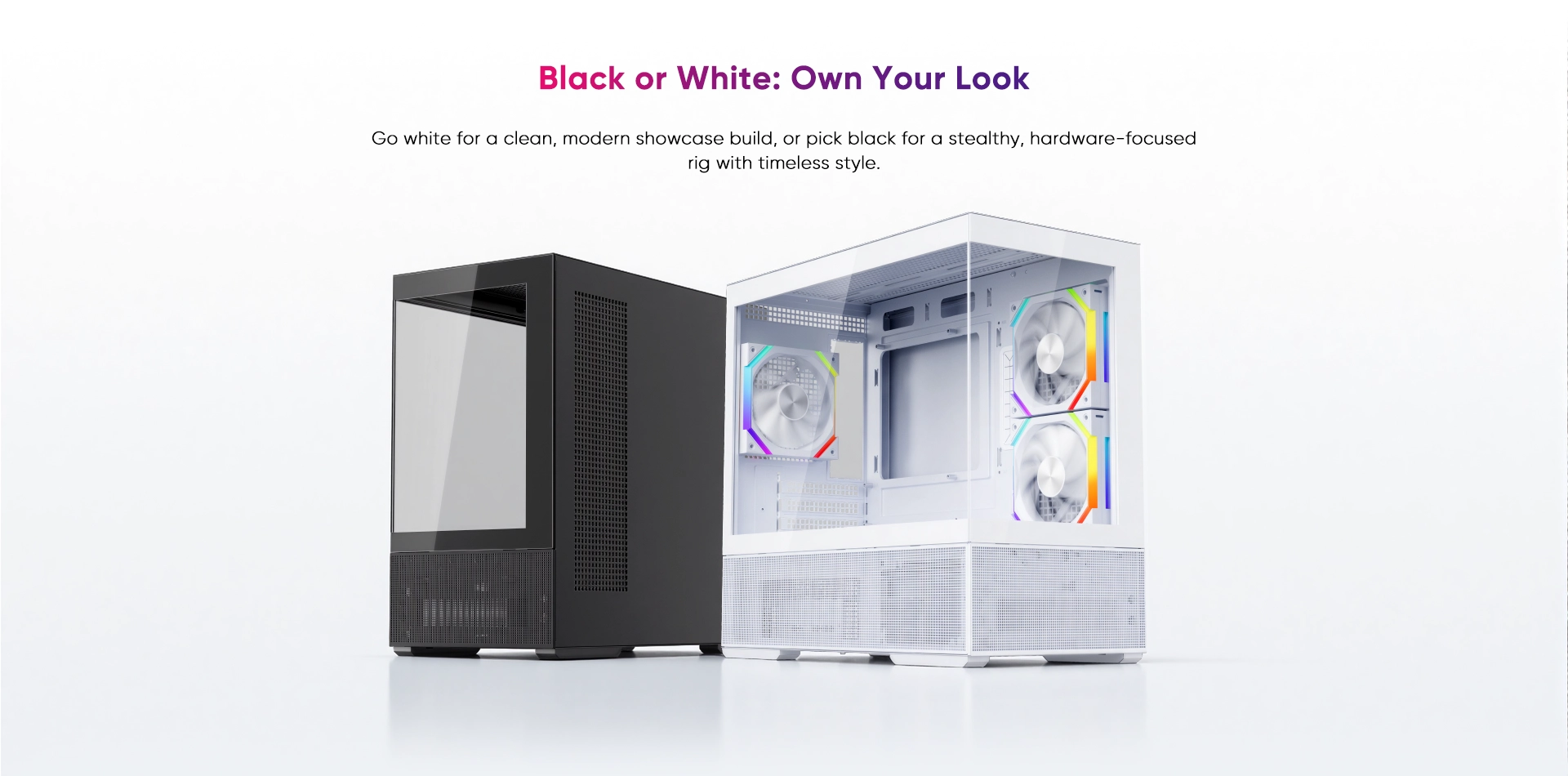

Color

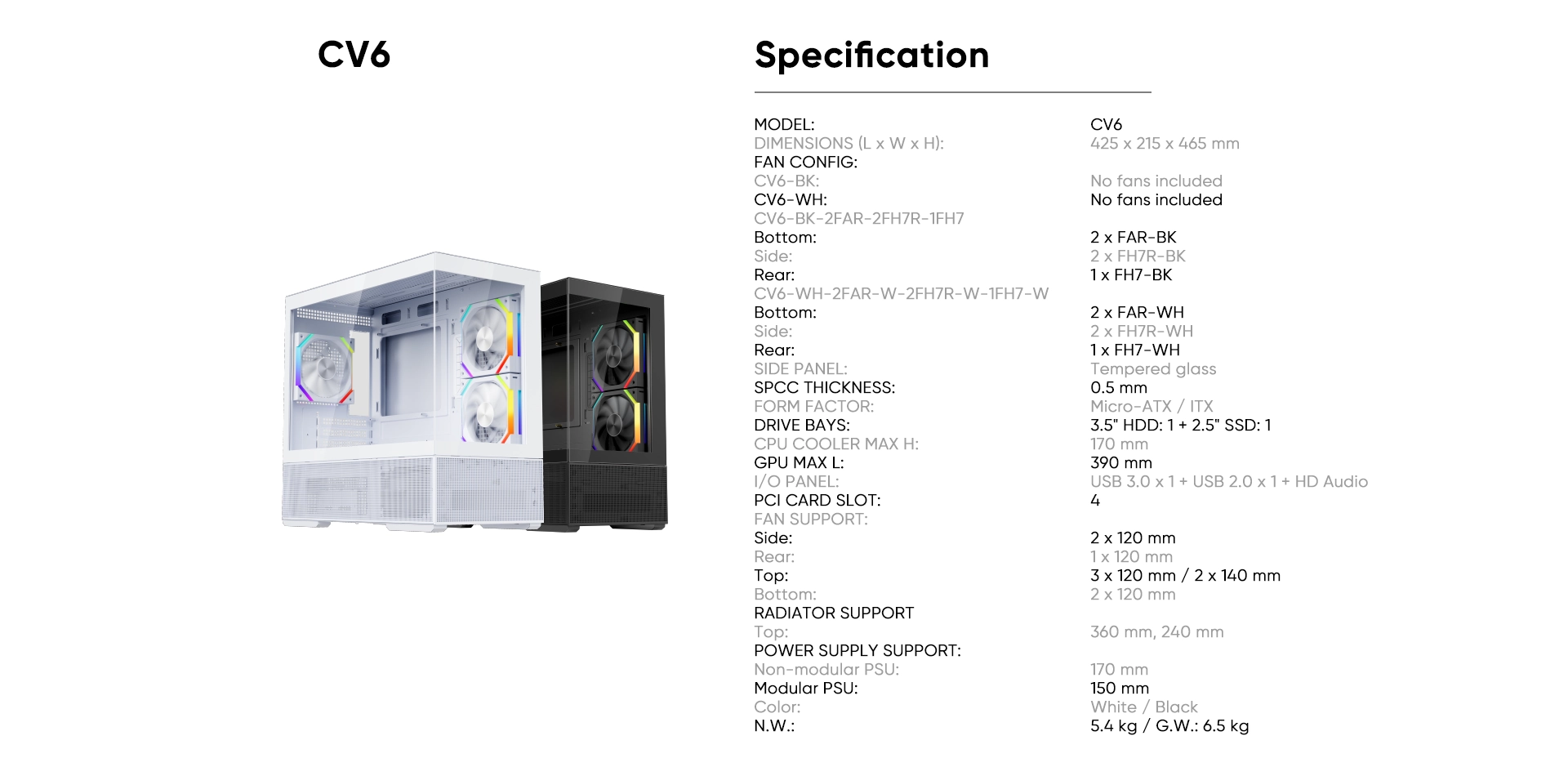

MODEL

CV6

STRUCTURE DIMENSIONS (L x W x H)

420 x 215 x 395 mm

PRODUCT DIMENSIONS (L x W x H)

425 × 215 × 407 mm

PACKAGE DIMENSIONS (L x W x H)

450 × 275 × 500 mm

STRUCTURE THICKNESS

0.5 mm

MATERIALS

SPCC, tempered glass, plastic

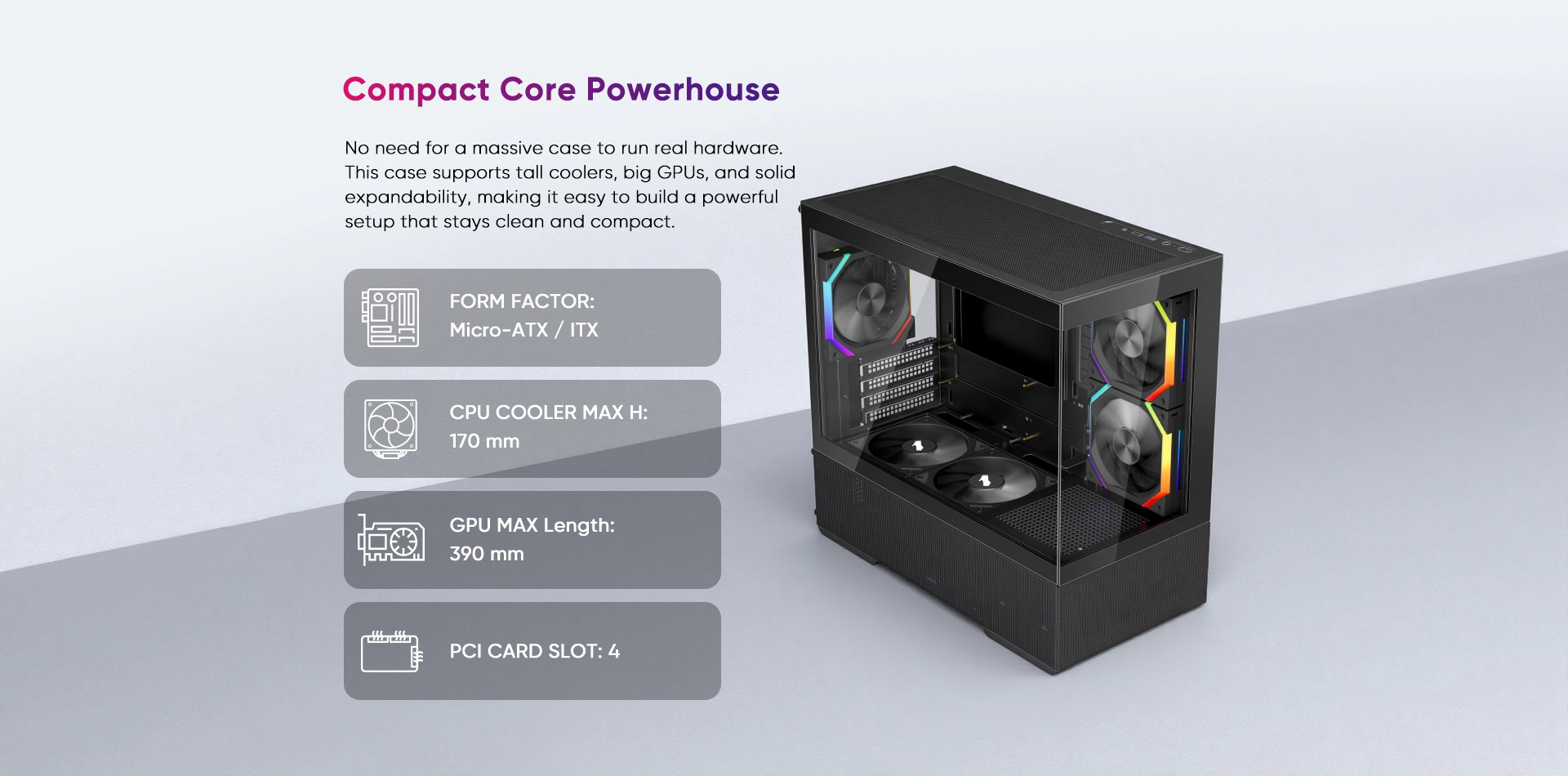

FORM FACTOR

ATX / M-ATX / ITX

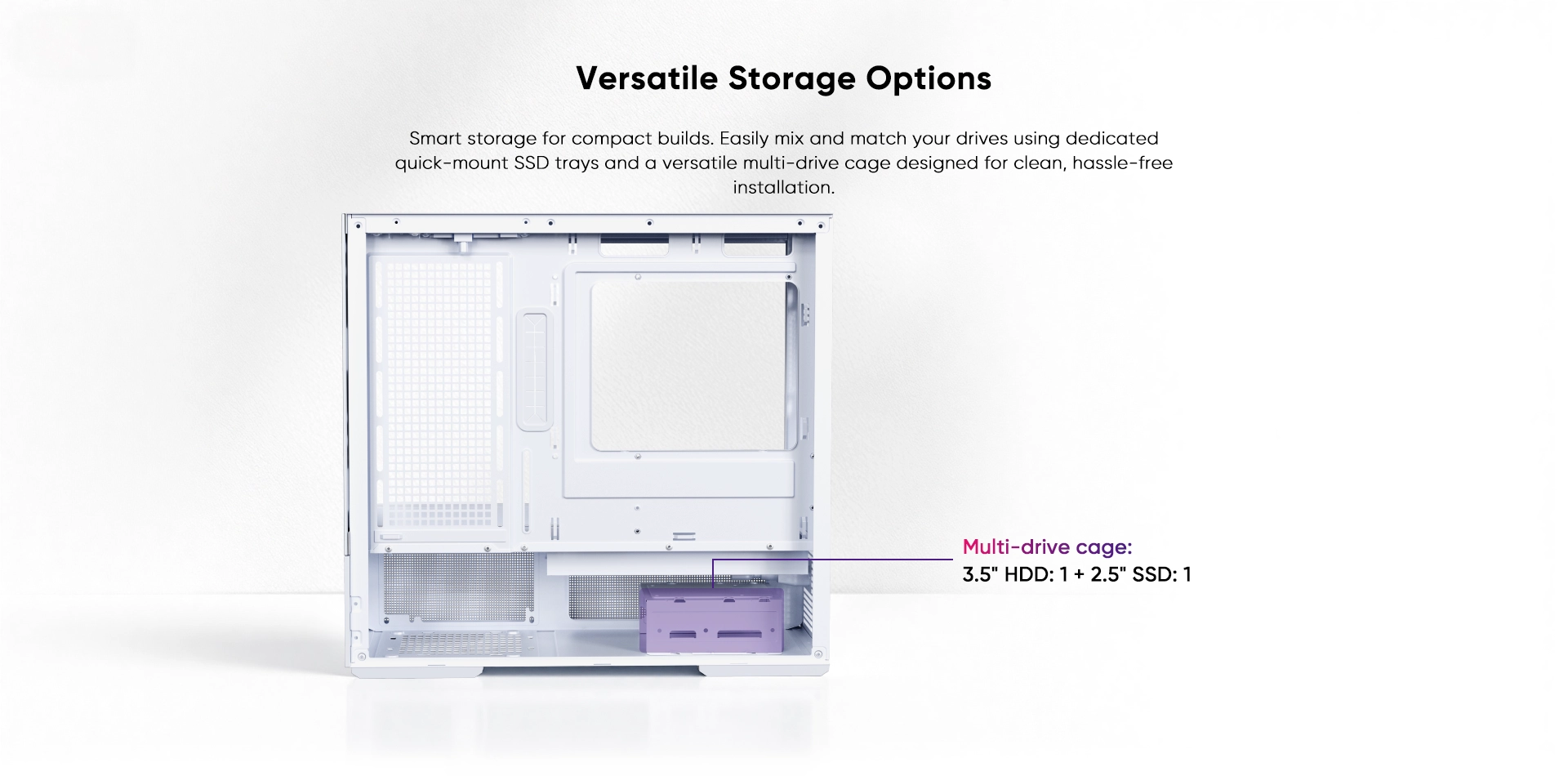

DRIVE BAYS

3.5" HDD: 1, 2.5" SSD: 1

CPU COOLER MAX HEIGHT

170 mm

GPU MAX LENGTH

390 mm

I/O PANEL

USB 3.0 x 1, USB 2.0 x 1, HD Audio

PCI CARD SLOT

4

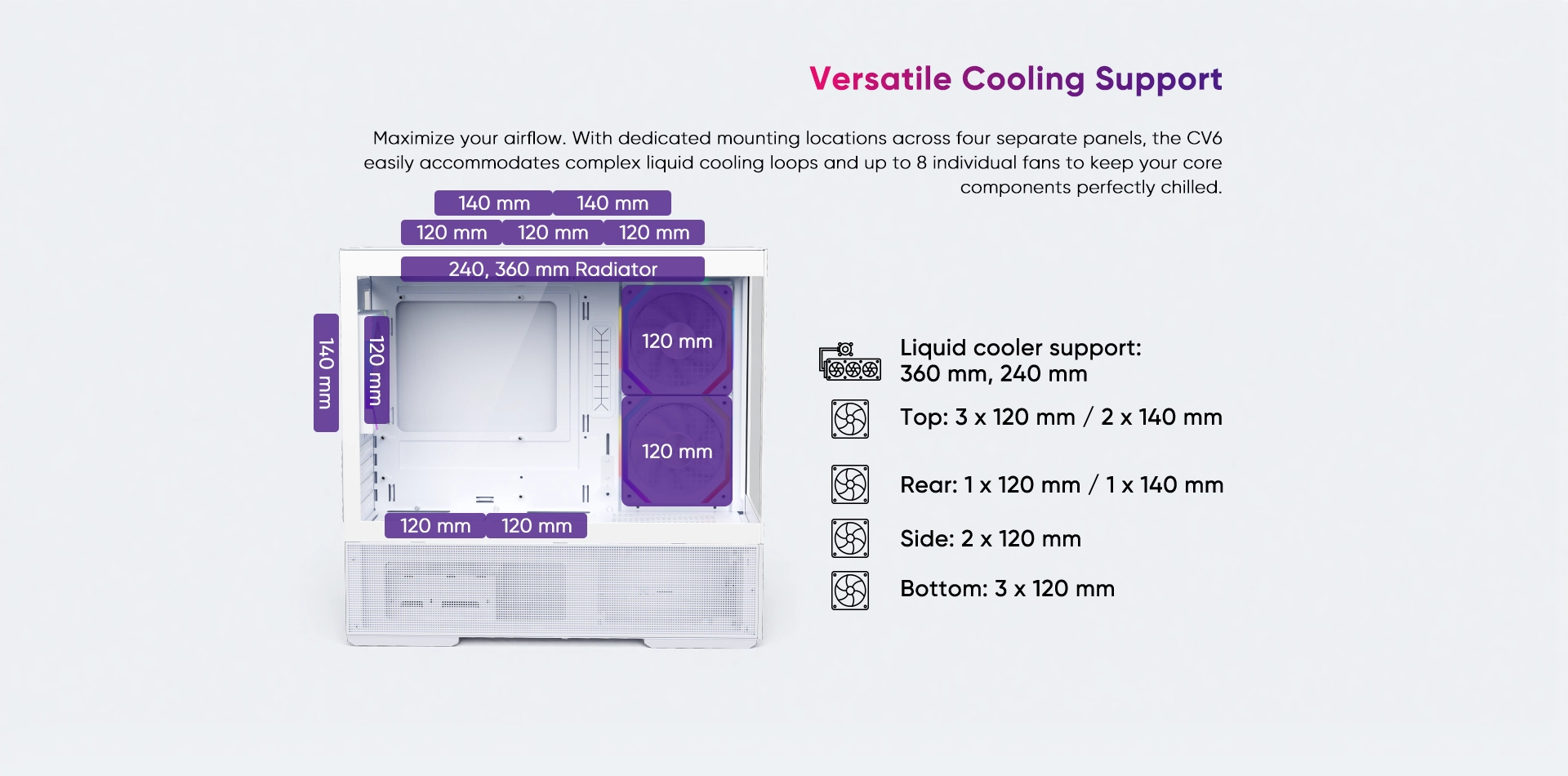

FAN SUPPORT

Side: 2 x 120 mm
Rear: 1 x 120 mm
Top: 3 x 120 mm / 2 x 140 mm
Bottom: 2 x 120 mm

LIQUID COOLING SUPPORT

Front: 360 mm, 240 mm
Side: 240 mm

POWER SUPPLY SUPPORT

Non-modular PSU: 170 mm
Modular PSU: 150 mm

WEIGHT

N.W.: 5.4 kg ± 10%
G.W.: 6.5 kg ± 10%
