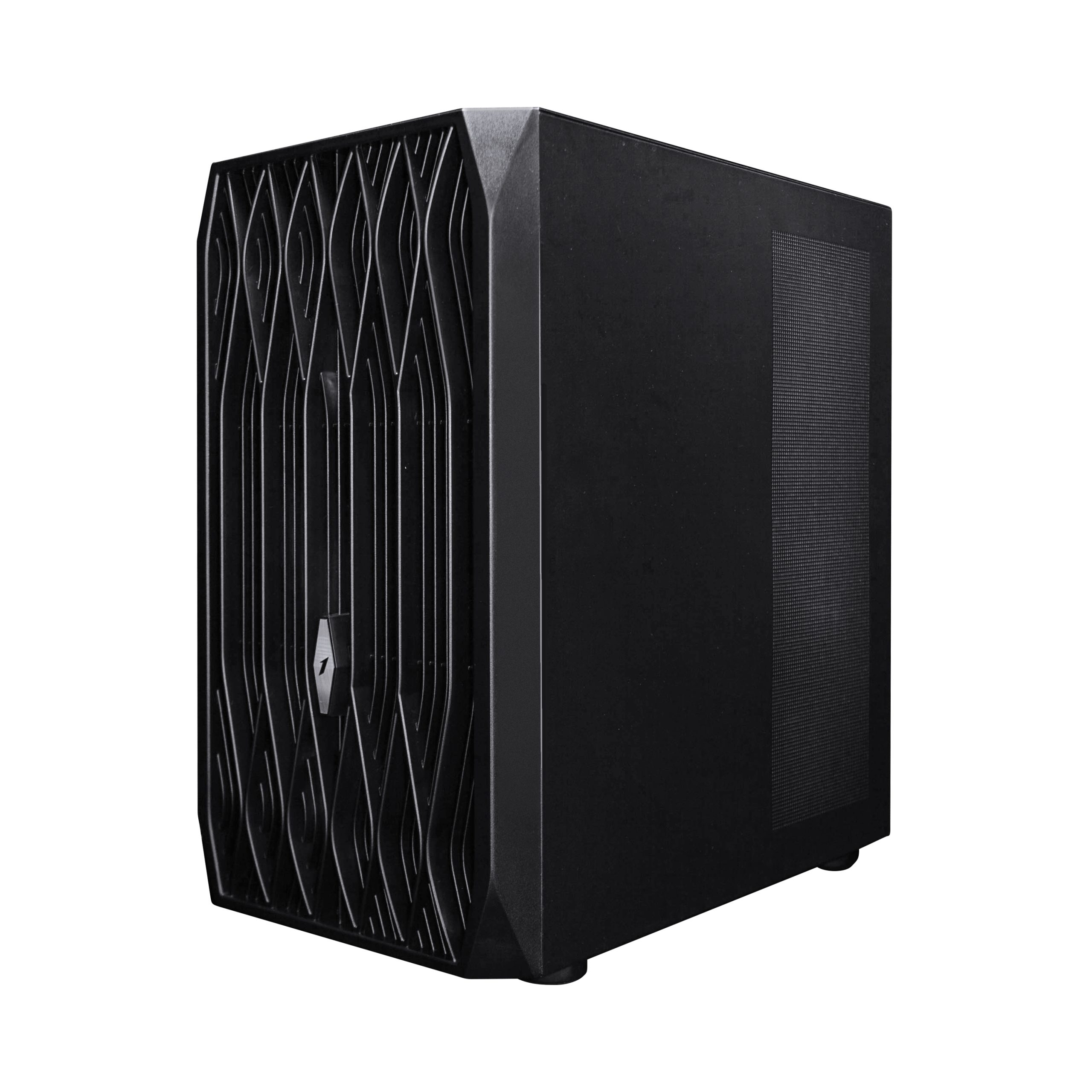

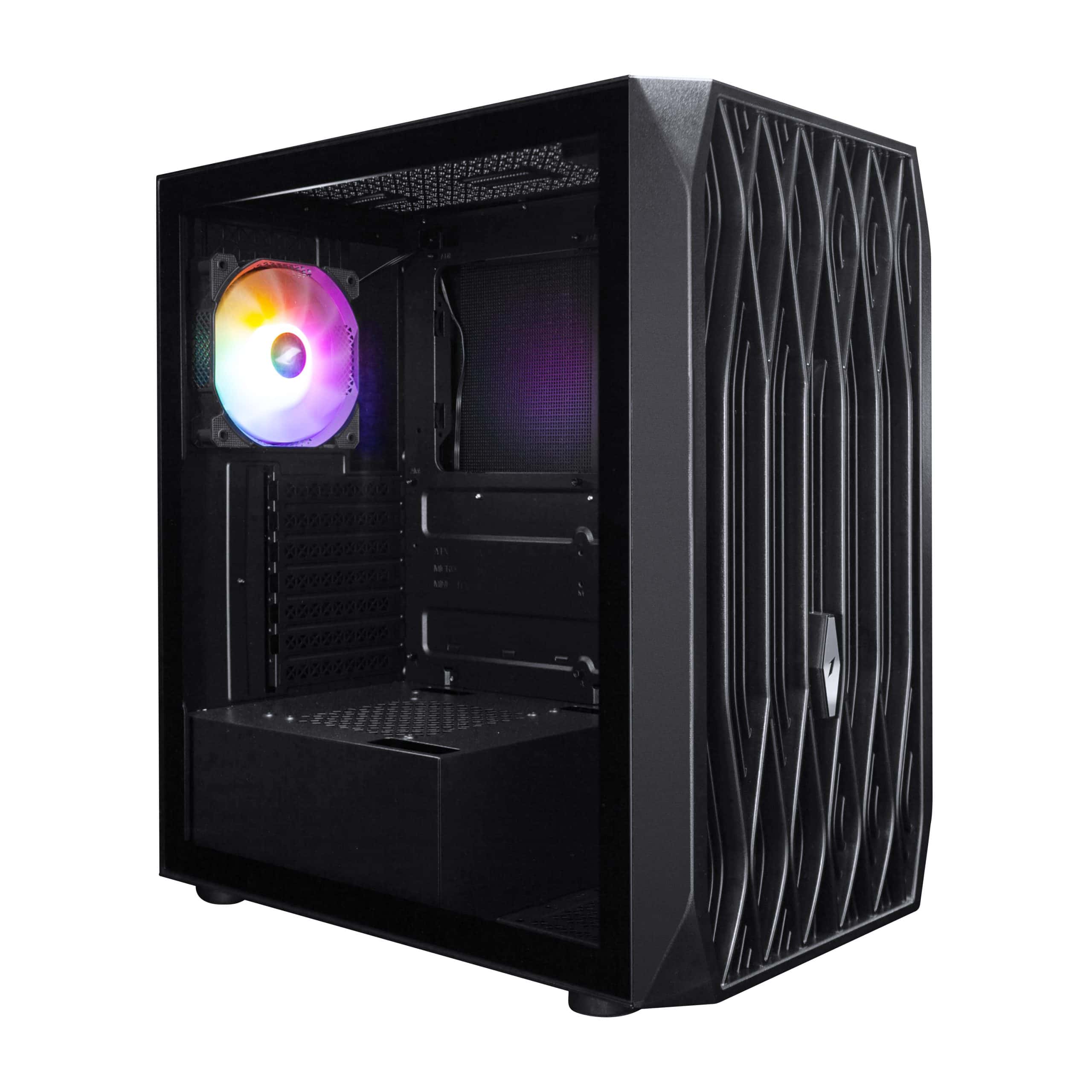

AY7

PC CASE

Support up to 7 x 120 mm fans
Support GPU length up to 340 mm
Support CPU cooler height up to 185 mm
Support 240 mm radiator at the top
Ample ventilation for optimized cooling performance
Front panel combines stunning tempered glass with strategic air vents for superior cooling
*Computer parts are not included. Cooling fan may vary among different countries/regions.

Color

MODEL

AY7

STRUCTURE DIMENSIONS (L x W x H)

370 x 235 x 430 mm

PRODUCT DIMENSIONS (L x W x H)

402 x 235 x 440 mm

PACKAGE DIMENSIONS (L x W x H)

505 x 298 x 475 mm

STRUCTURE THICKNESS

0.5 mm

MATERIALS

SPCC 0.5 mm
Left Panel: Tempered glass
Front Panel: Plastic mesh

FORM FACTOR

ATX / M-ATX / ITX

DRIVE BAYS

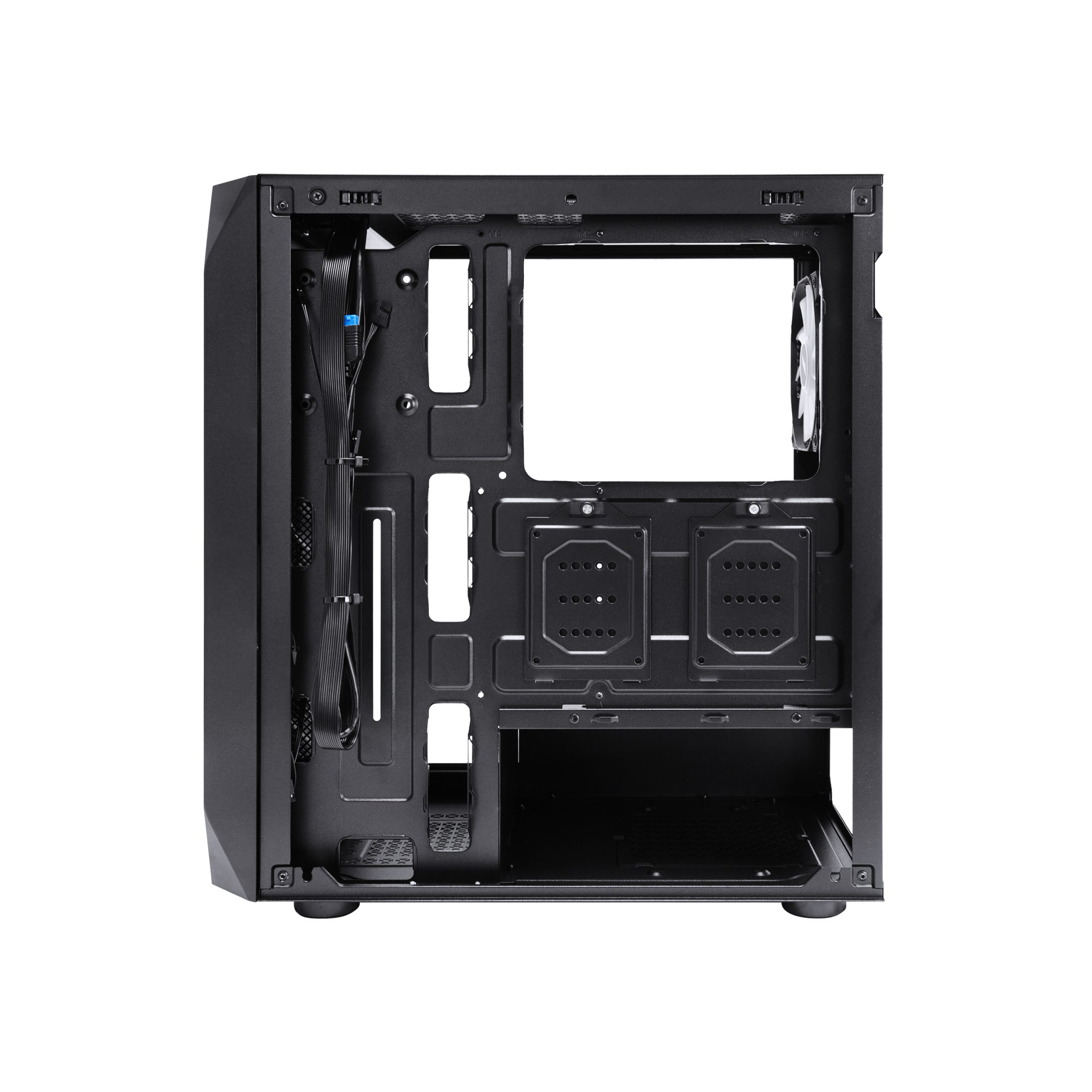

3.5" HDD: 1, 2.5" SSD: 3

CPU COOLER MAX HEIGHT

185 mm

GPU MAX LENGTH

340 mm

I/O PANEL

USB 3.0 x 1, USB 2.0 x 1, HD Audio

PCI CARD SLOT

7

FAN SUPPORT

Front: 3 x 12 cm

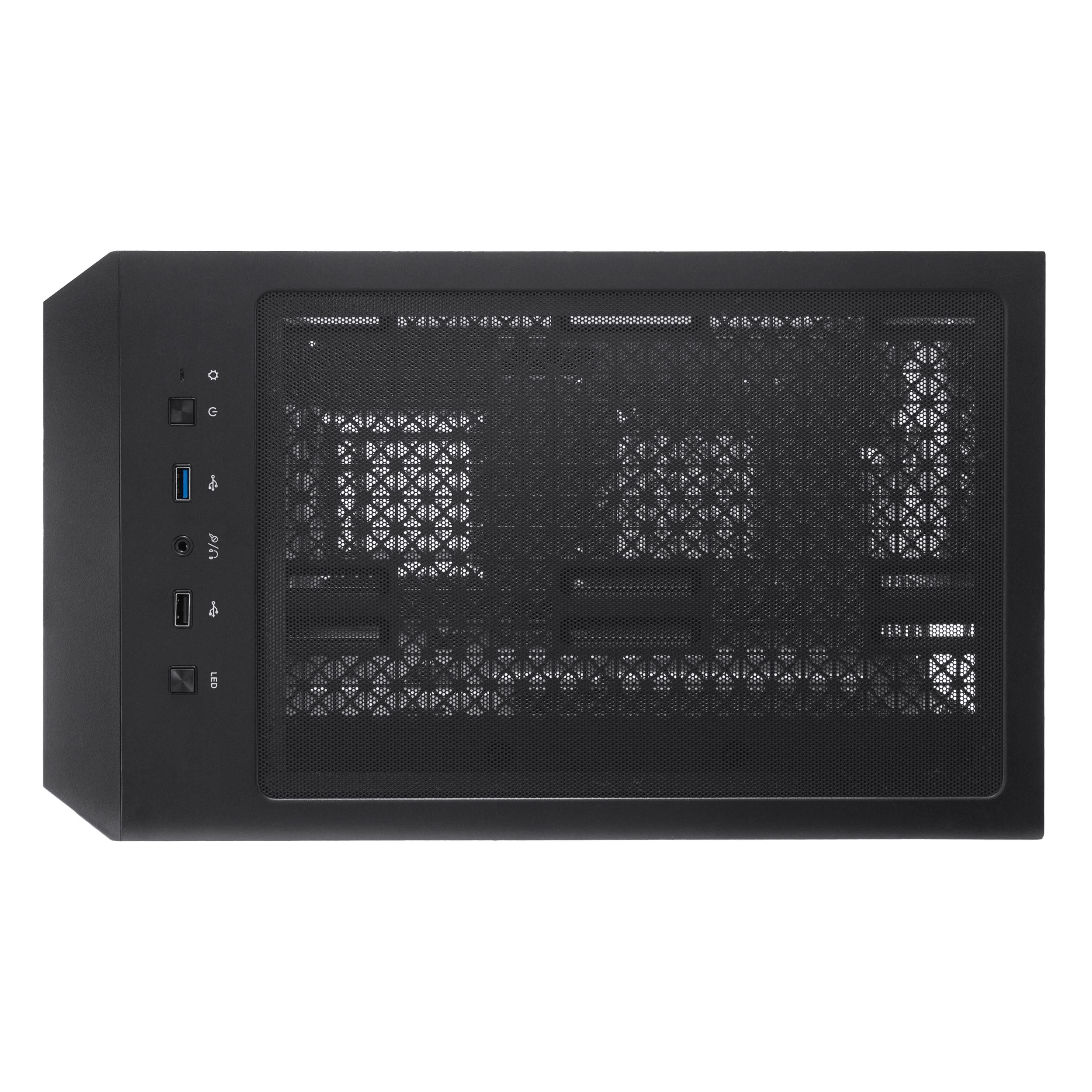

Top: 2 x 12 cm
Rear: 1 x 12 cm

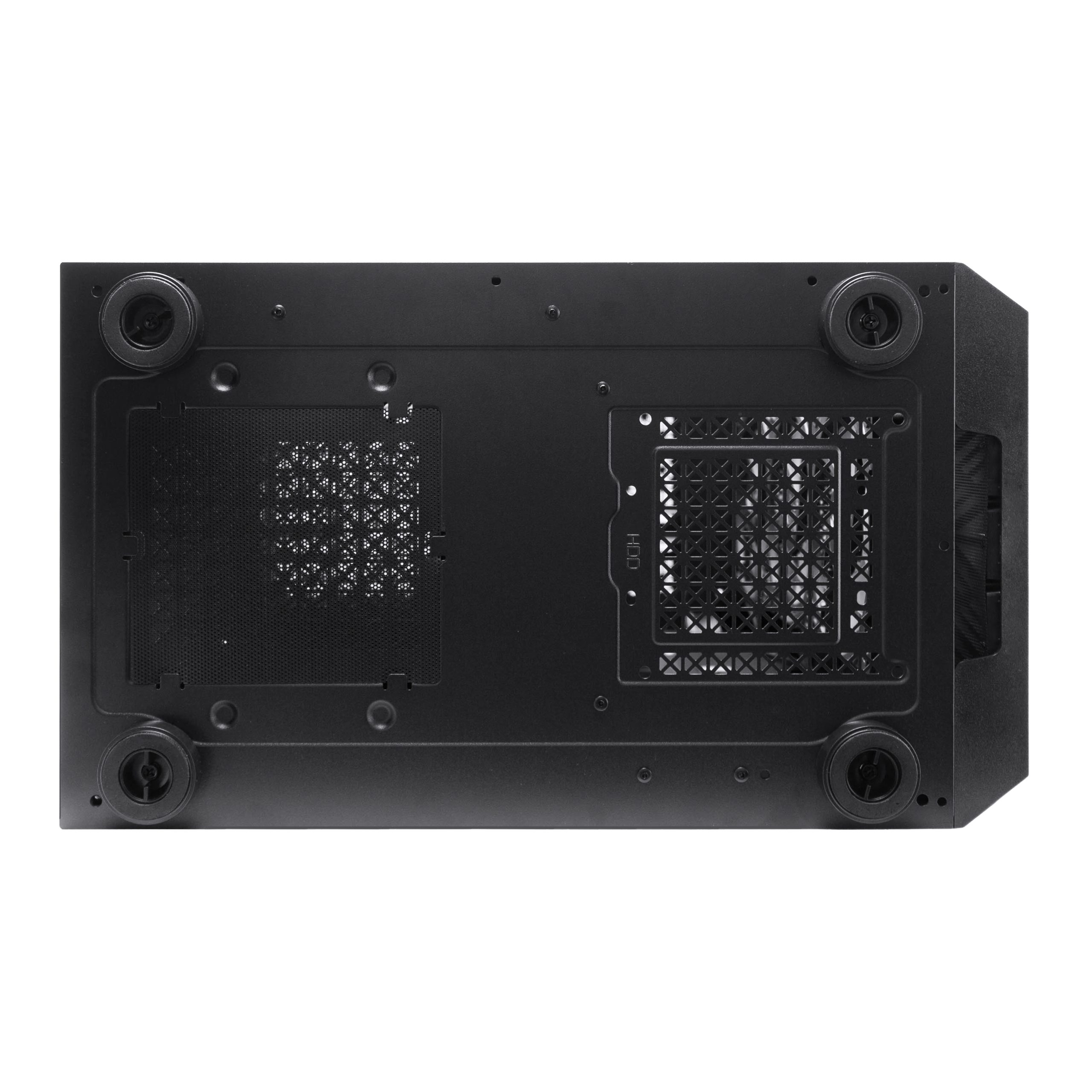

Bottom: 1 x 12 cm

LIQUID COOLING SUPPORT

Top: 240 mm

POWER SUPPLY SUPPORT

Bottom mounted 160 mm

WEIGHT

N.W.: 5 kg
G.W.: 6.2 kg
