AU8

Minimal Aesthetics. Maximum Performance.

PPLP certified
Support GPU length up to 400 mm
Support CPU cooler height up to 174 mm
Support installing of up to 12 x 120 mm fans
Support 360mm liquid cooler at top
Optional 140 x 30 mm fans deliver high-airflow, high-static pressure cooling performance
Smooth contours, sleek precision, and craftsmanship that defines modern elegance

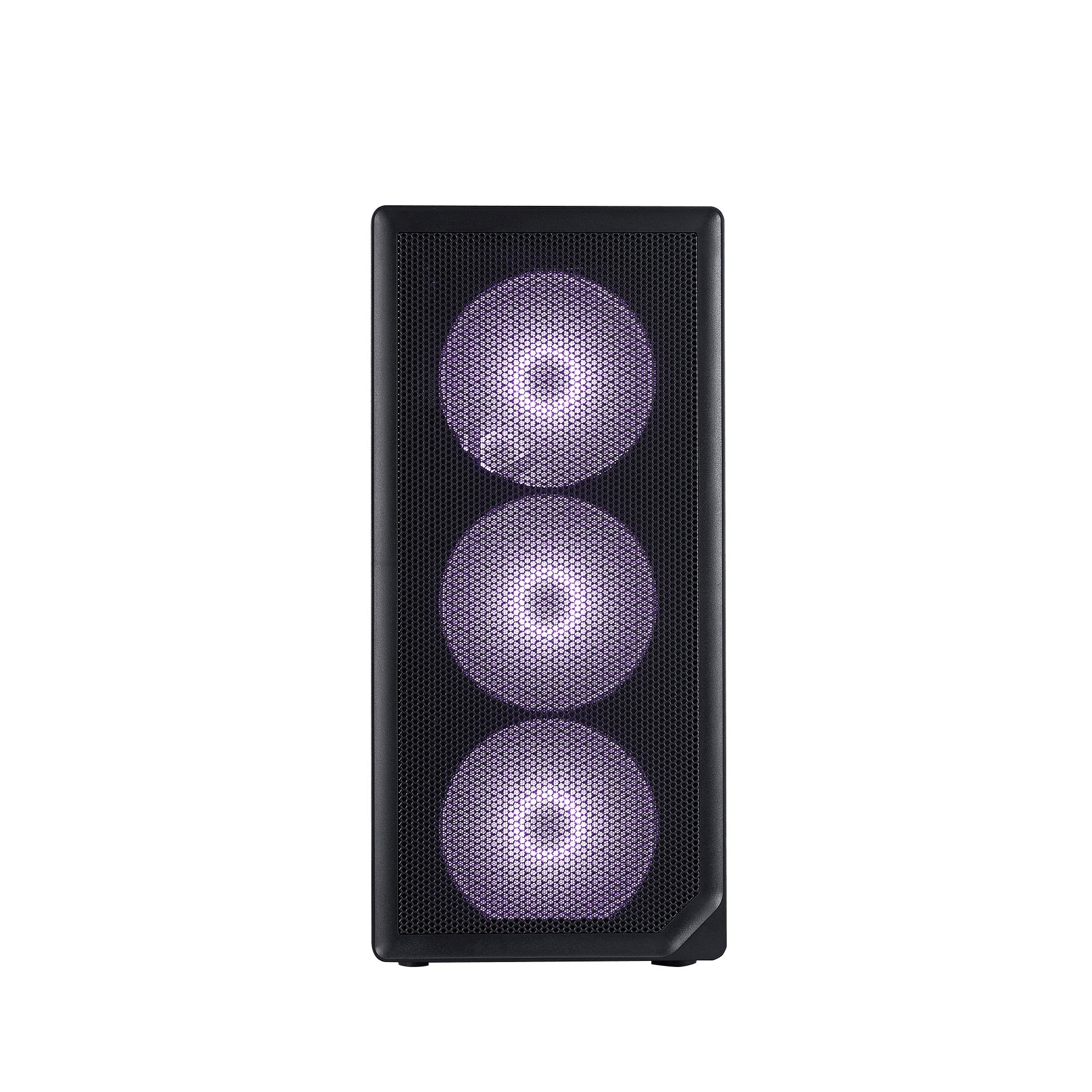

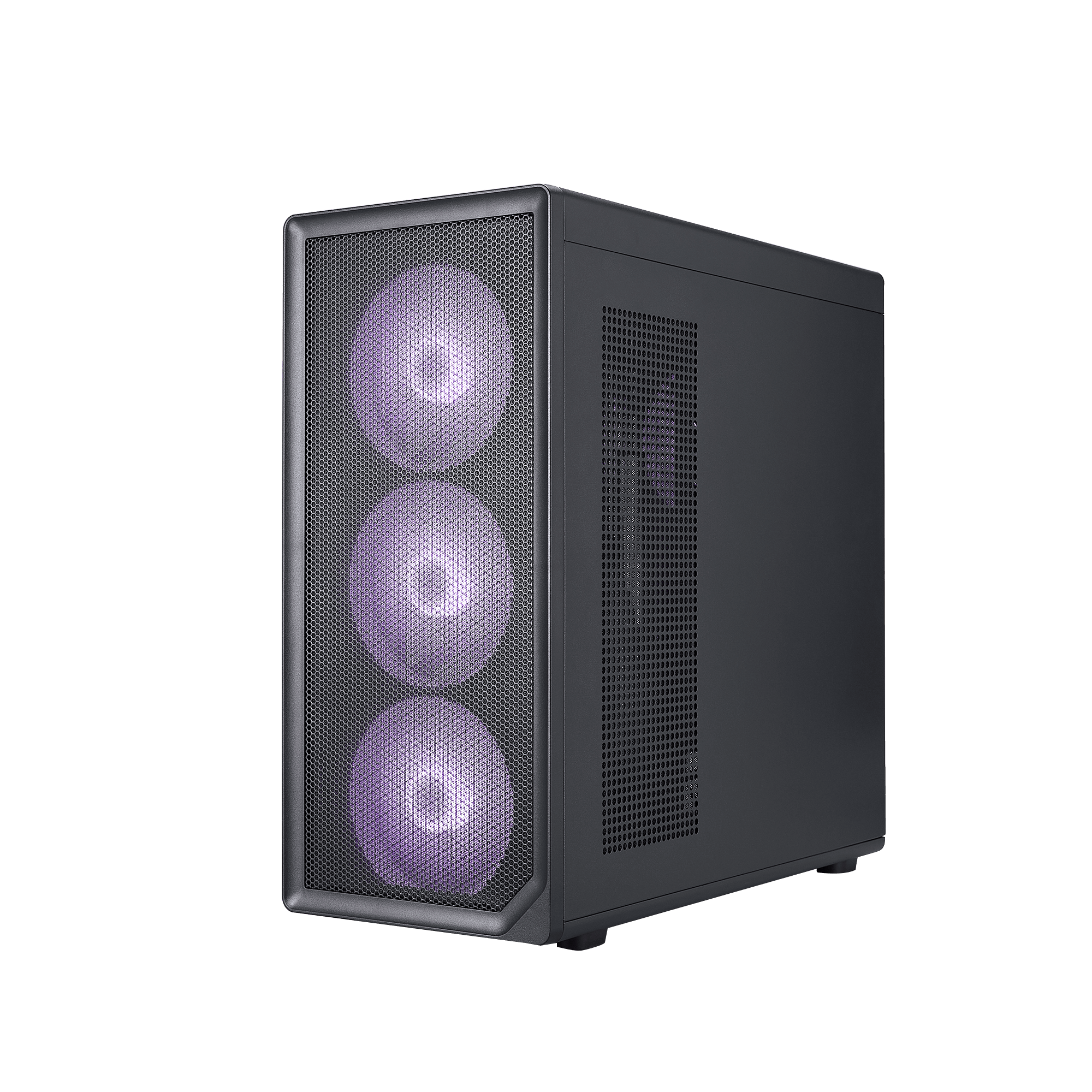

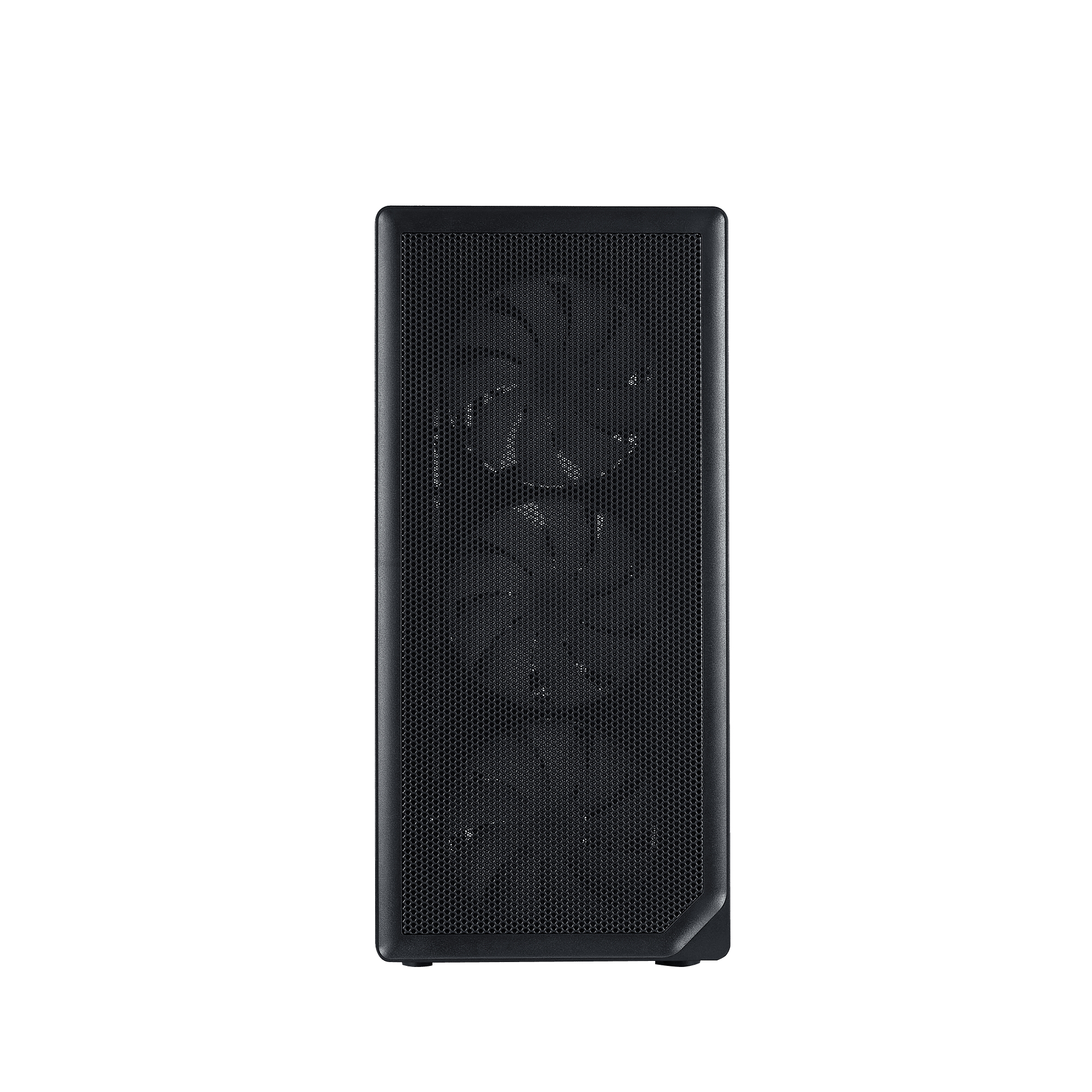

Extreme cooling with ultra airflow front mesh design

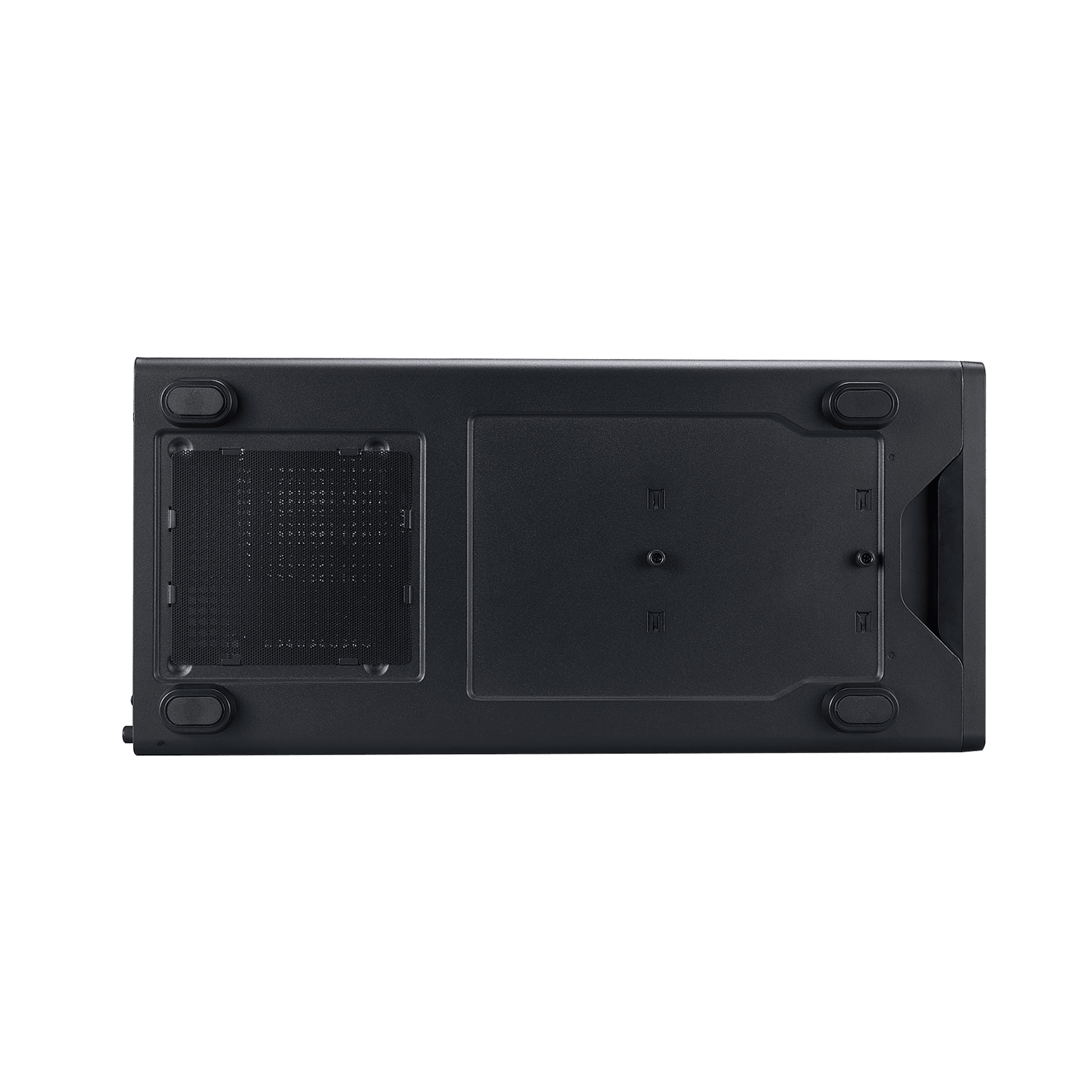

Quick-release dust filters on both top and bottom simplify dust cleaning and upkeep

Color

MODEL

AU8

STRUCTURE DIMENSIONS (L x W x H)

459 × 220 × 467 mm

PRODUCT DIMENSIONS (L x W x H)

471 × 220 × 480 mm

PACKAGE DIMENSIONS (L x W x H)

521 x 277 × 538 mm

STRUCTURE THICKNESS

0.5 mm

MATERIALS

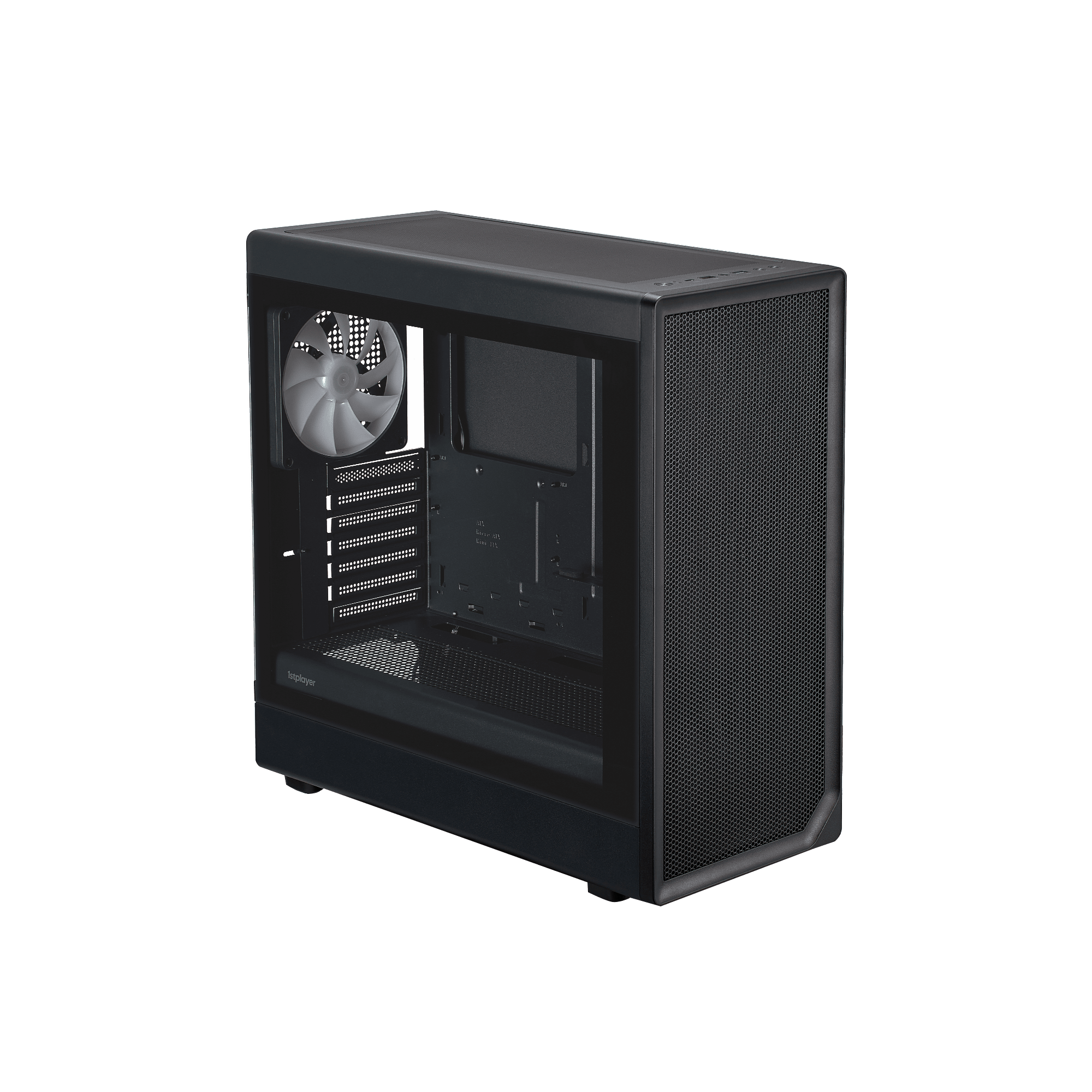

SPCC, tempered glass, plastic

FORM FACTOR

E-ATX / ATX / M-ATX

DRIVE BAYS

3.5" HDD: 2, 2.5" SSD: 2 or
3.5" HDD: 1, 2.5" SSD: 3

CPU COOLER MAX HEIGHT

174 mm

GPU MAX LENGTH

400 mm

I/O PANEL

USB 3.0 x 1, USB 2.0 x 1, Type-C x 1, HD Audio

PCI CARD SLOT

7

FAN SUPPORT

Front: 3 x 140 mm / 3 x 120 mm
Top: 3 x 120 mm
Rear: 1 x 140 mm / 1 x 120 mm
Bottom: 2 x 120 mm
Side: 2 x 120 mm

LIQUID COOLING SUPPORT

Top: 360 mm, 240 mm

POWER SUPPLY SUPPORT

Bottom mounted ATX (240 mm)

WEIGHT

N.W.: 5.8 kg
G.W.: 7.0 kg
