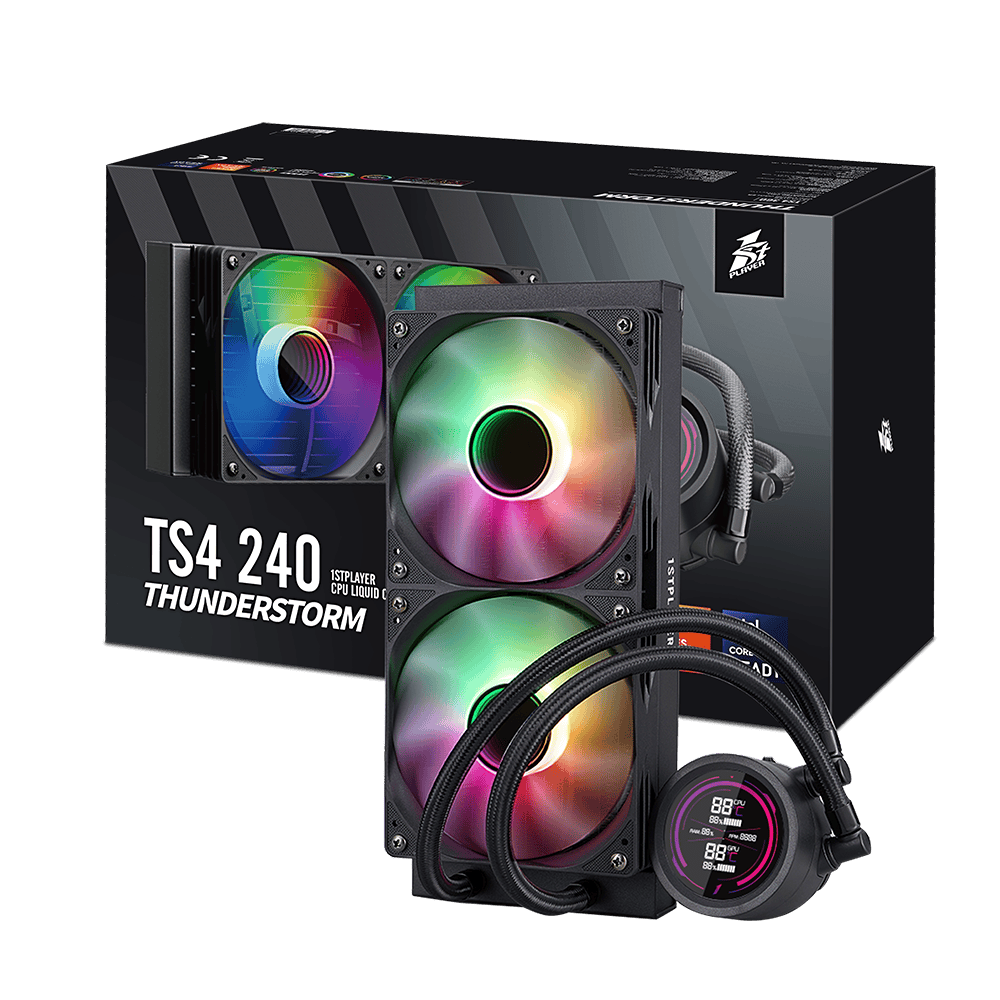

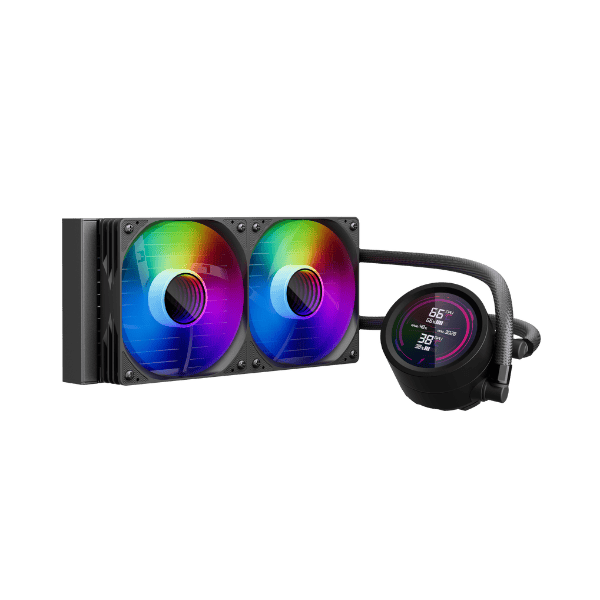

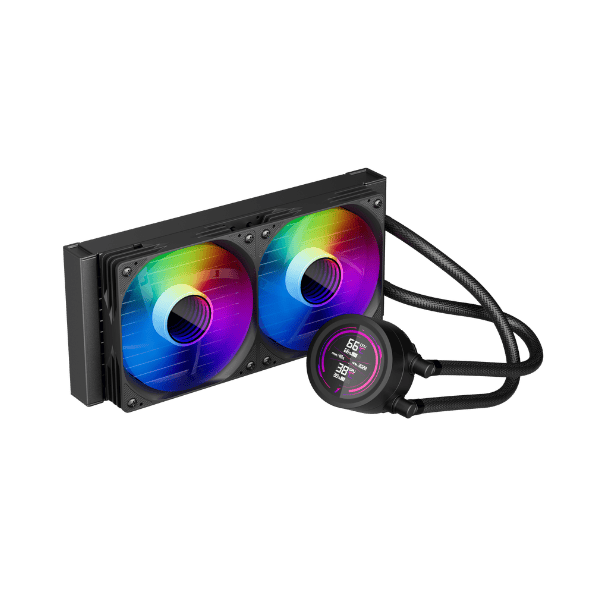

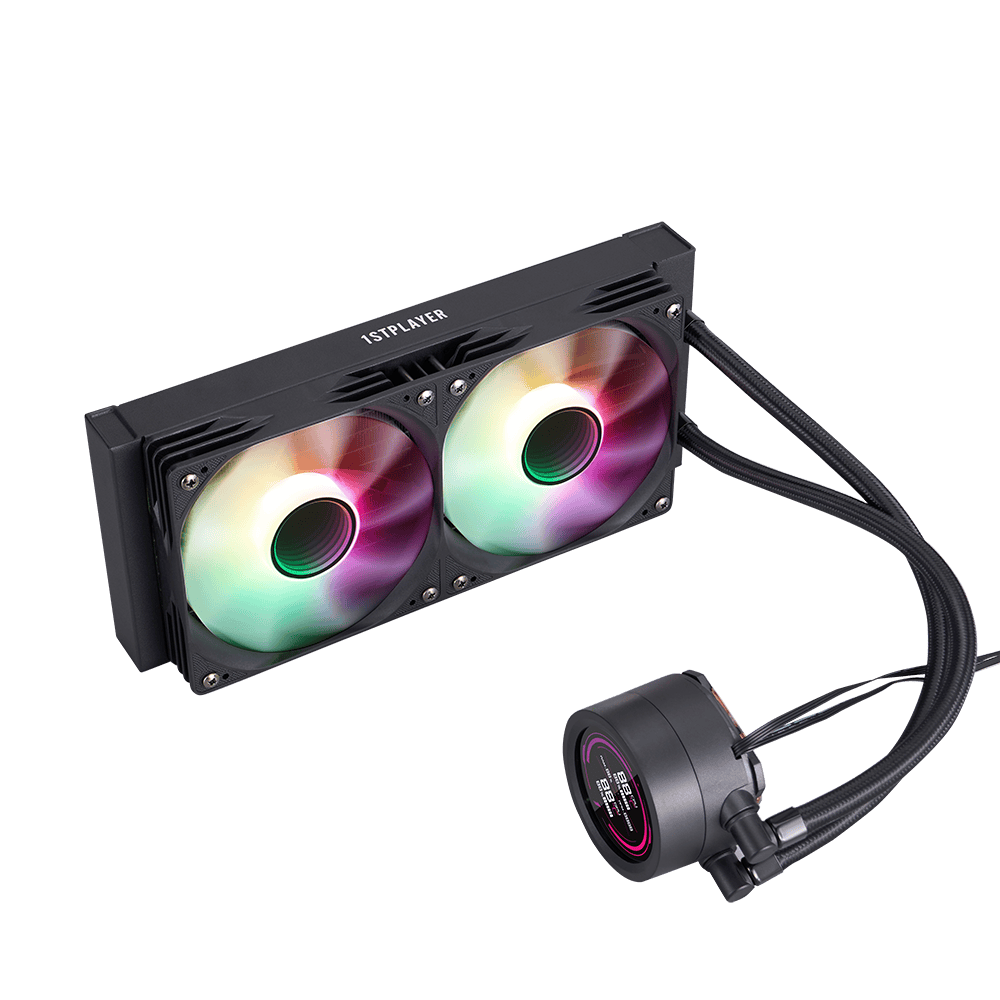

TS4-240 / TS4-360 Liquid Cooler

Keep your cool when the game heats up

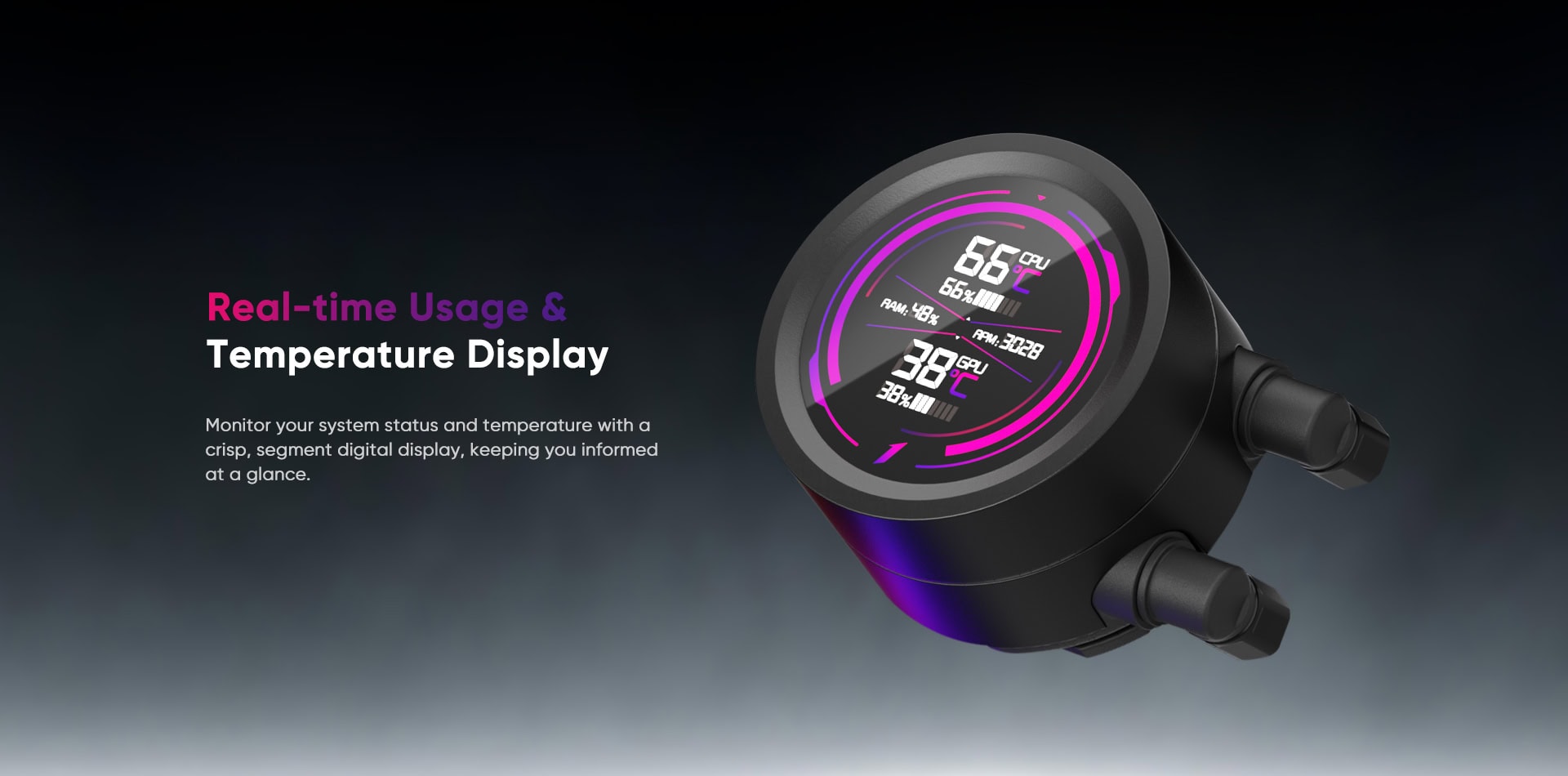

Real-time system usage and temperature display
9-blade fan for low noise operation
High-density fin radiator for effecient heat dissipation

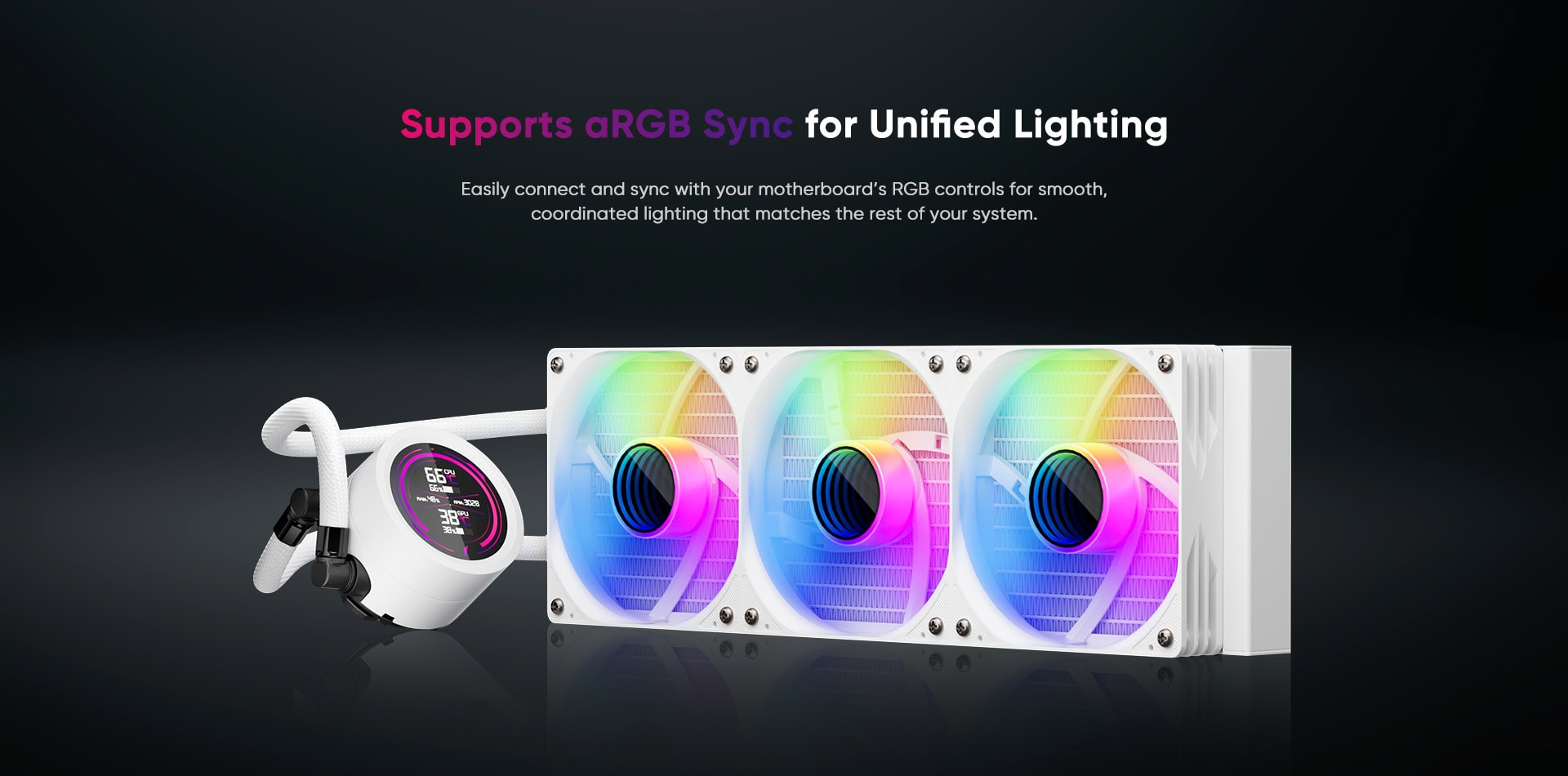

aRGB lighting that synchronizes with the motherboard

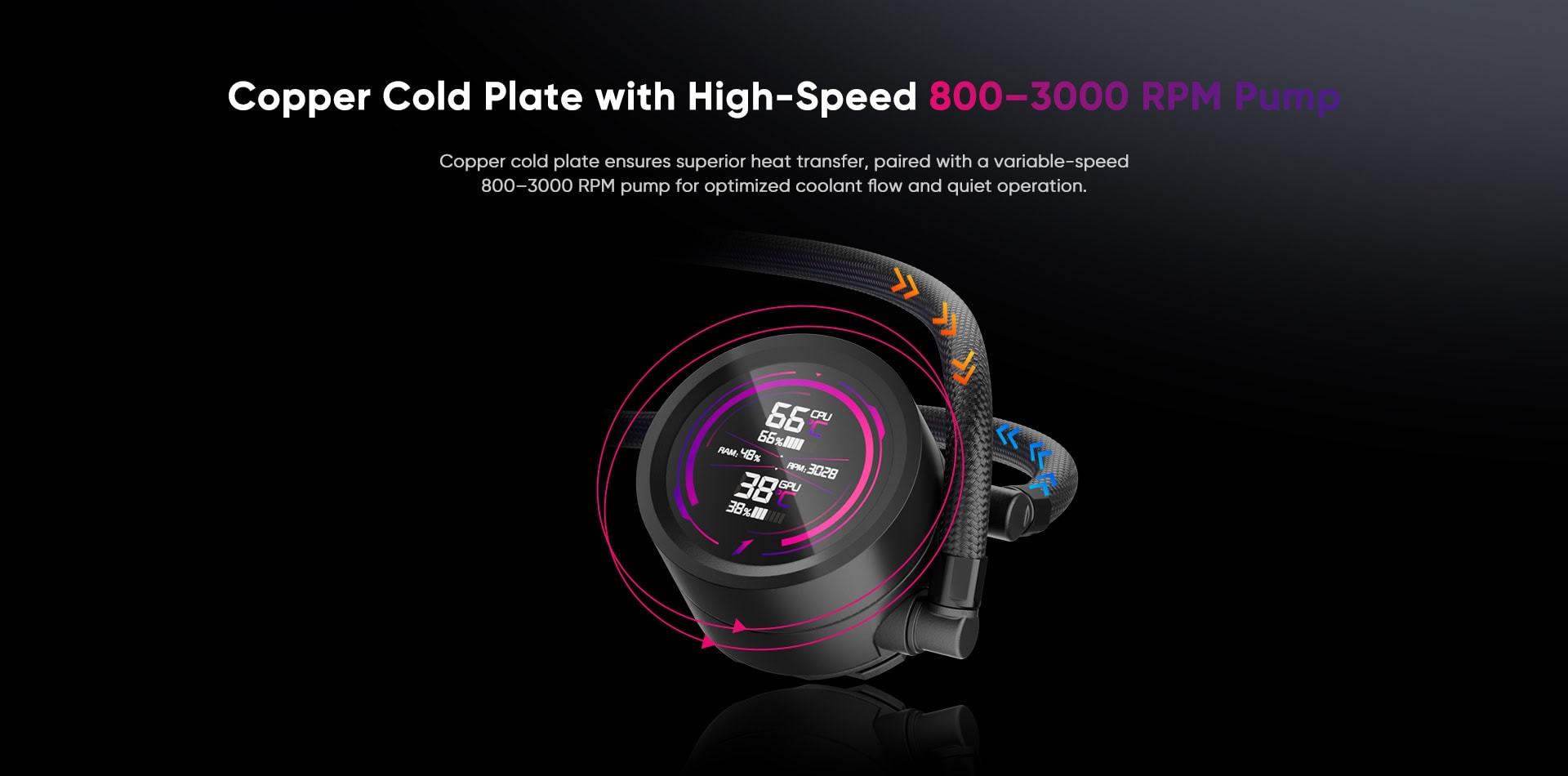

Copper endothermic cold plate for optimal heat absorption

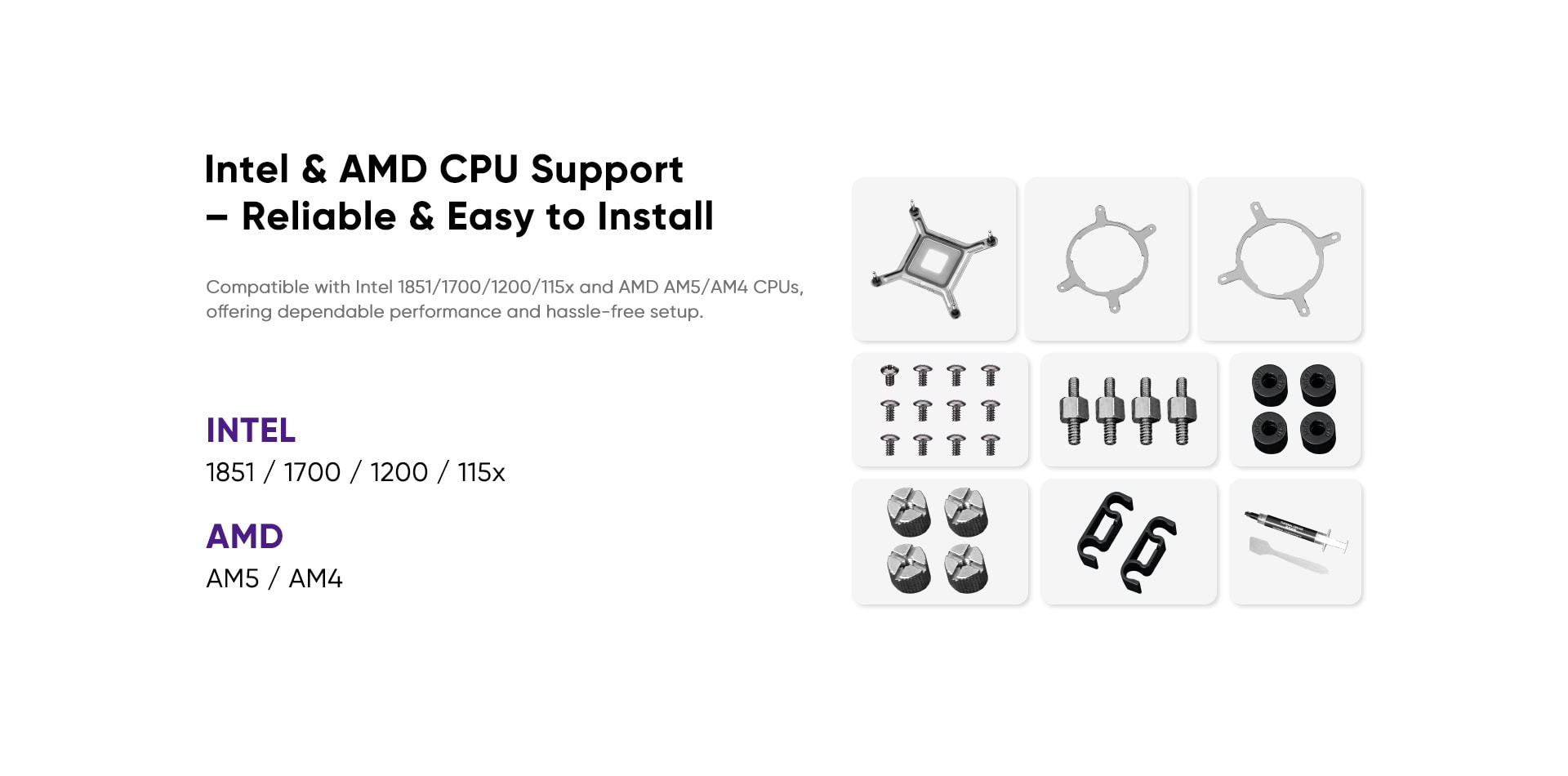

Compatible with Intel LGA 1851 / 1700 / 1200 / 115x and AMD AM5 / AM4 sockets

Color

Size

240 mm

360 mm

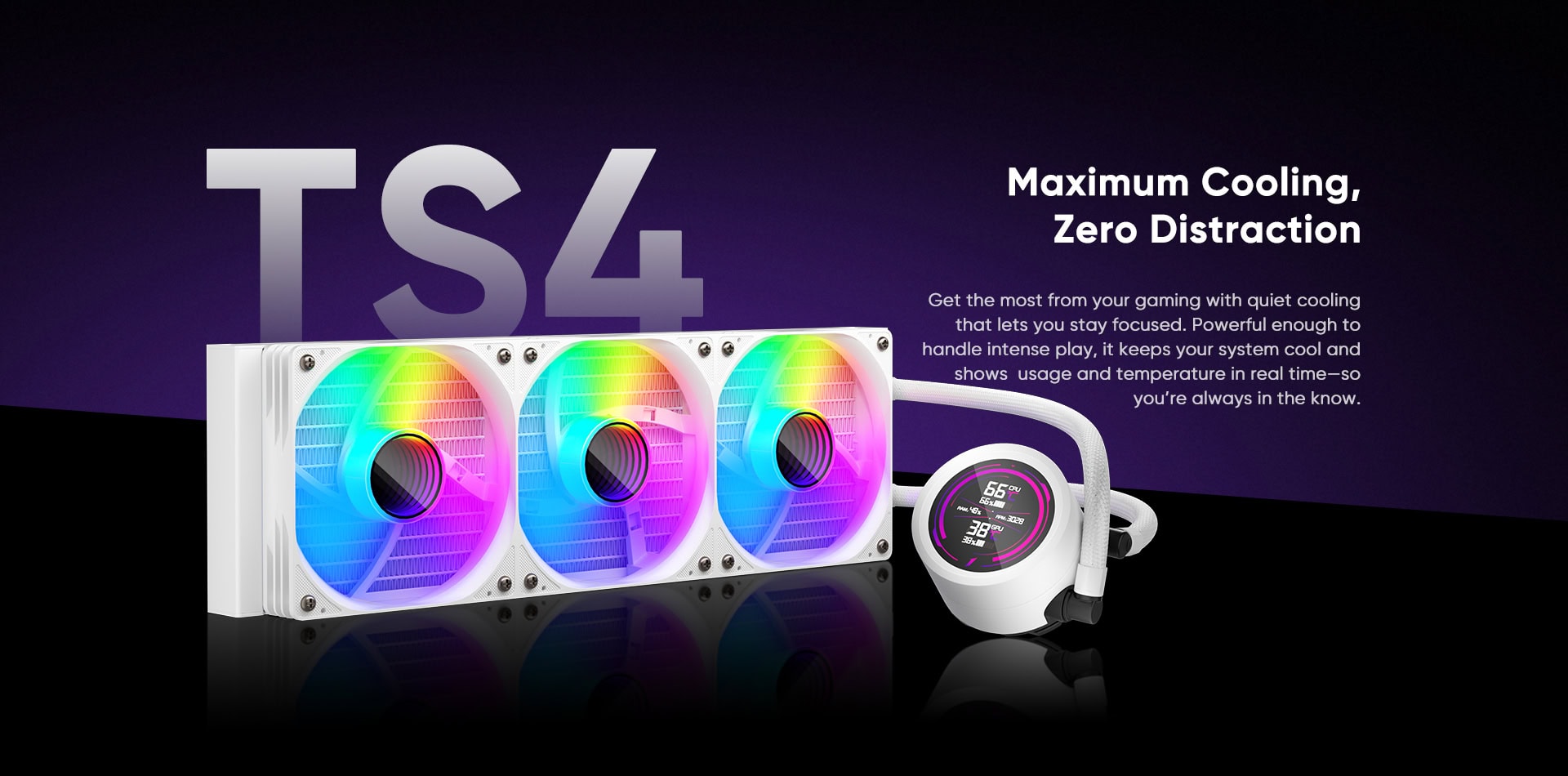

RGB cooling fans and pump system for PC cooling and zero distraction.

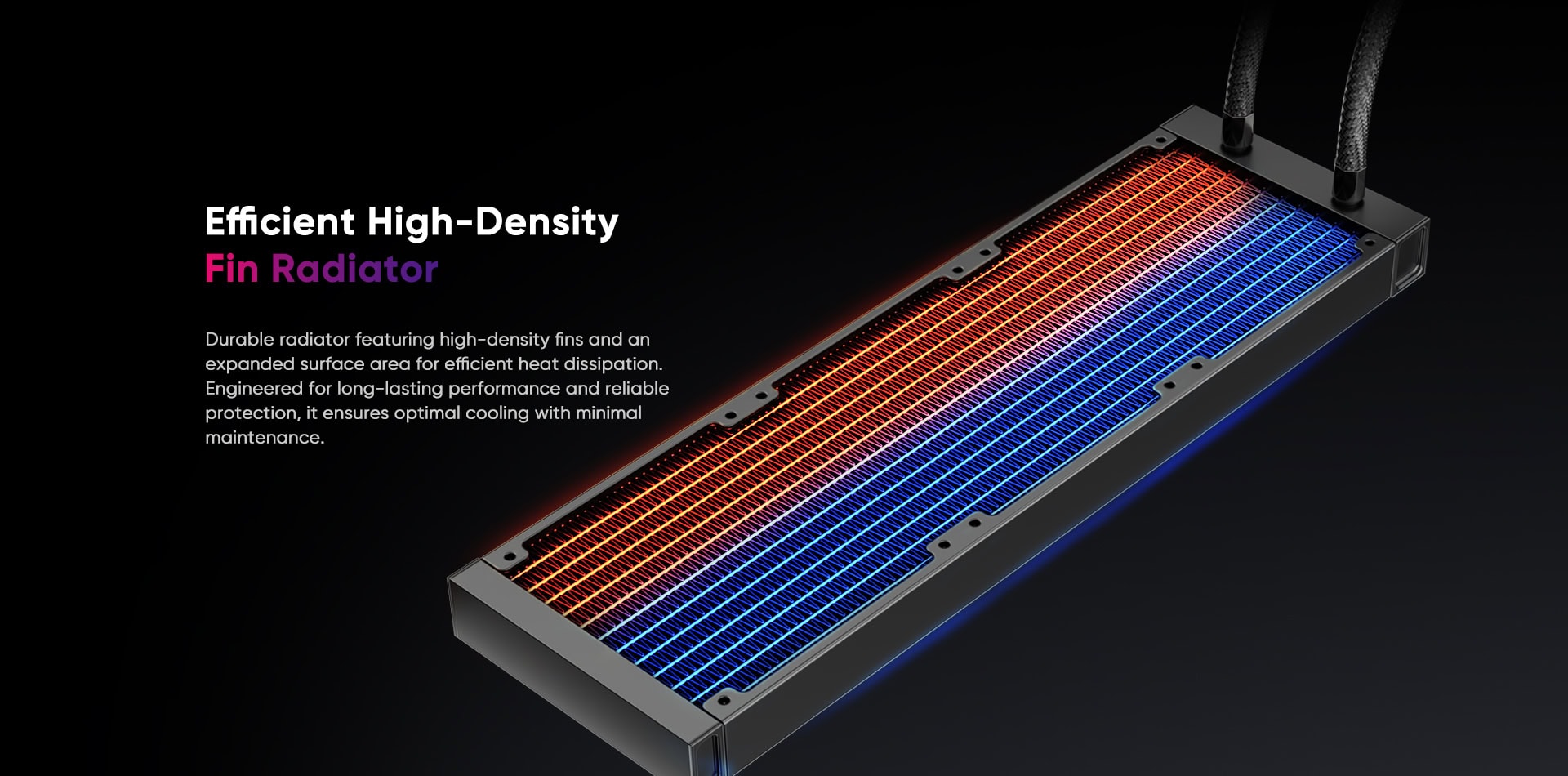

Efficient high-density fin radiator designed for optimal cooling in gaming and high-performance PCs.

MODEL

TS4 240 / TS4 360

SUPPORTED CPU

Intel 1851 / 1700 / 1200 / 115x
AMD AM5 / AM4

RADIATOR DIMENSIONS

TS4 240: 277 x 120 x 27 mm
TS4 360: 394 x 120 x 27 mm

RADIATOR MATERIAL

Aluminum

TDP

TS4 240: 250W
TS4 360: 300W

TUBE LENGTH

TS4 240: 330mm
TS4 360: 400mm

WEIGHT

TS4 240: N.W.: 14.1 kg G.W.: 15.7 kg
TS4 360: N.W.: 8.8 kg G.W.: 9.9 kg

WARRANTY

5 years

PUMP DIMENSIONS

85 x 70 x 47.5 mm

PUMP SPEED

800 ± 200 - 3000 RPM ± 10%

PUMP NOISE

18 dB(A)

PUMP CONNECTOR

4 pin (PWM)

PUMP RATED VOLTAGE

12V DC

PUMP RATED CURRENT

≤ 0.35 A

PUMP POWER CONSUMPTION

≤ 4.2 W

FAN QTY

TS4 240: 2 pcs
TS4 360: 3 pcs

FAN DIMENSIONS

TS4 240: 240 x 120 x 25.4 mm
TS4 360: 394 × 120 × 27 mm

FAN SPEED

800 ± 200 - 1800 RPM ± 10%

FAN AIRFLOW

77 CFM

FAN AIR PRESSURE

2.2 mmAq

FAN CONNECTOR

4 pin (PWM) + 3 pin (ARGB)

FAN BEARING TYPE

Hydraulic Bearing

FAN RATED VOLTAGE

12V DC

FAN RATED CURRENT

0.65 A ± 10% / 1 A ± 10%

FAN POWER CONSUMPTION

TS4 240: 7.8 W ± 10%
TS4 360: 12 W ± 10%

FAN NOISE

TS4 240: ≤ 36 dB(A)
TS4 360: ≤ 38 dB(A)

LED TYPE

Addressable RGB

LED CONNECTOR

3-pin (ARGB)

LED RATED VOLTAGE

5V DC
