TS1

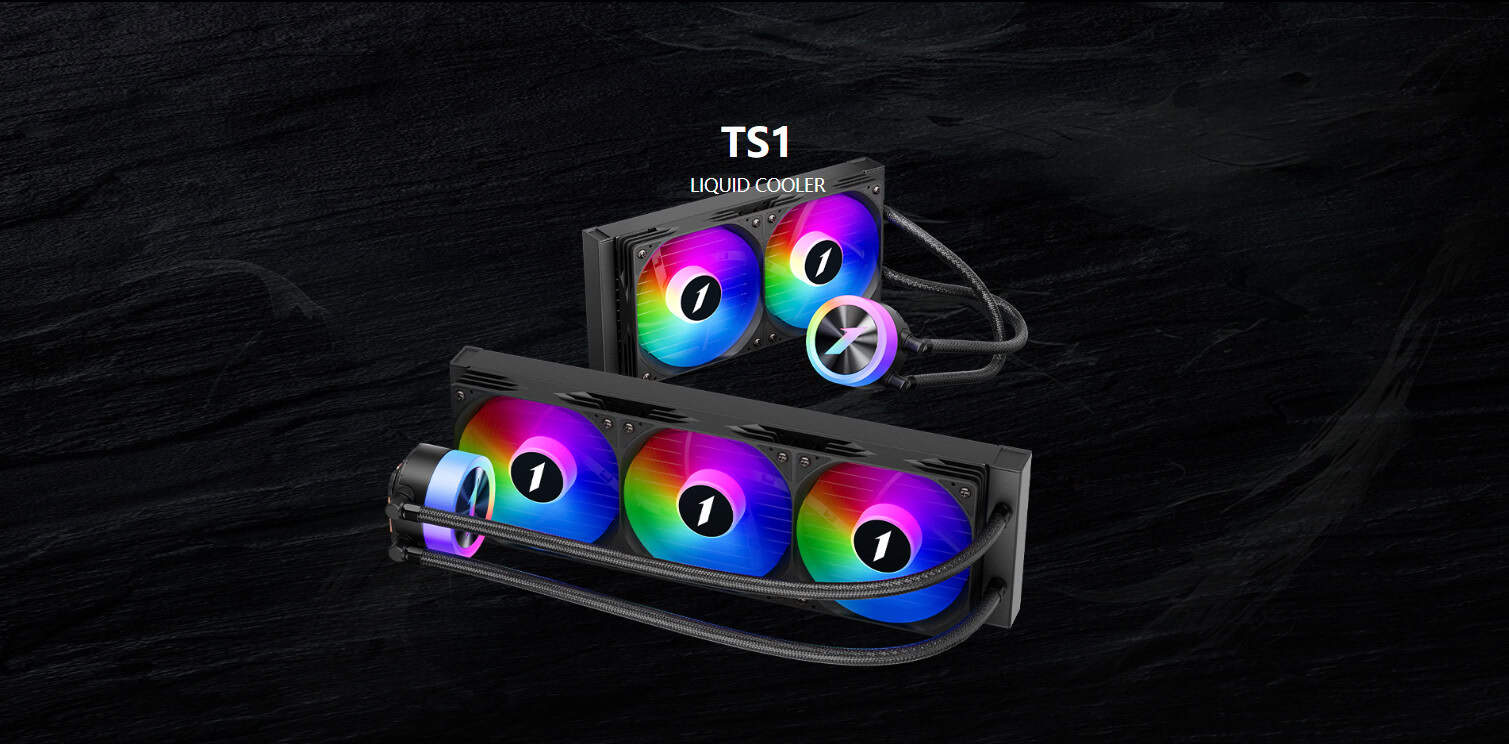

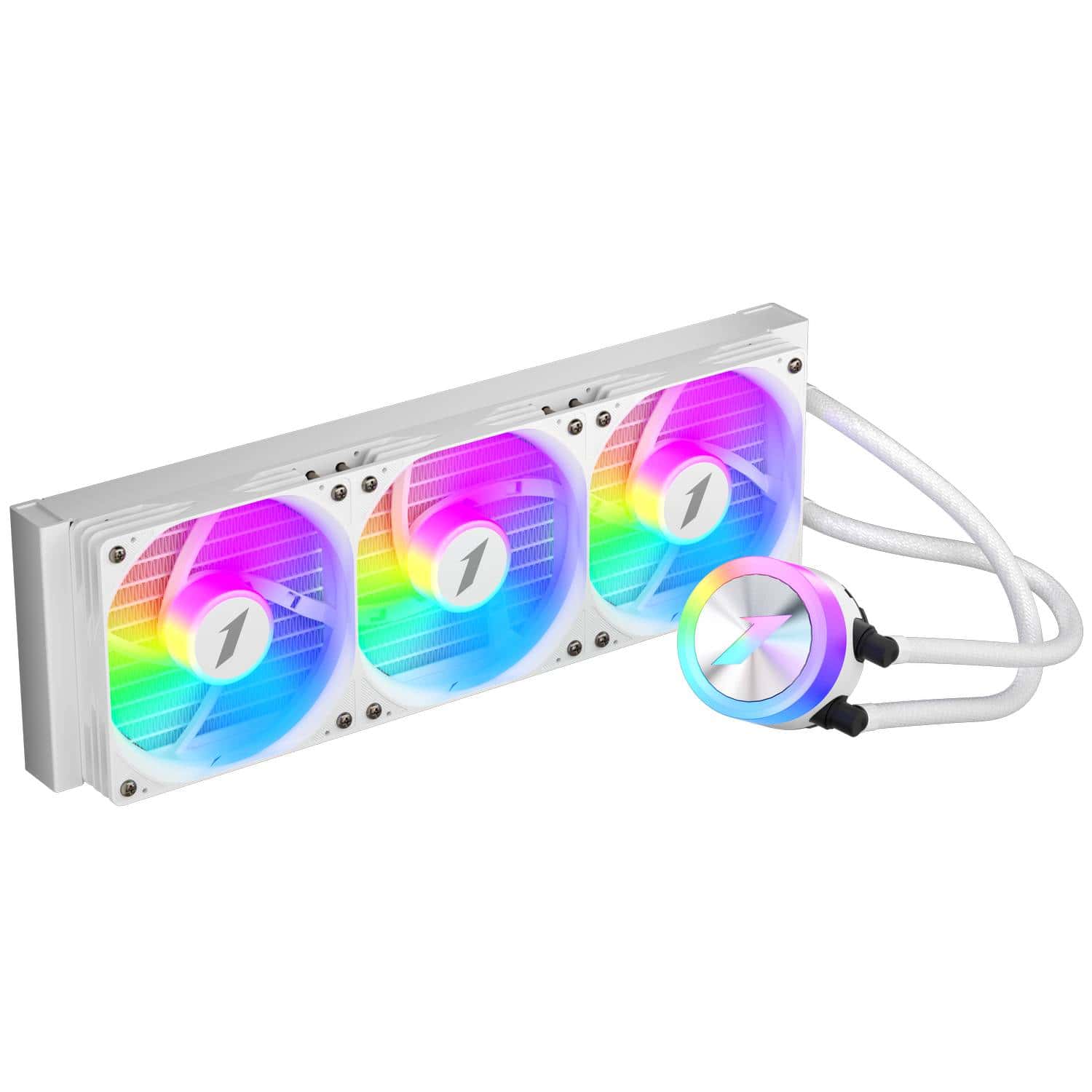

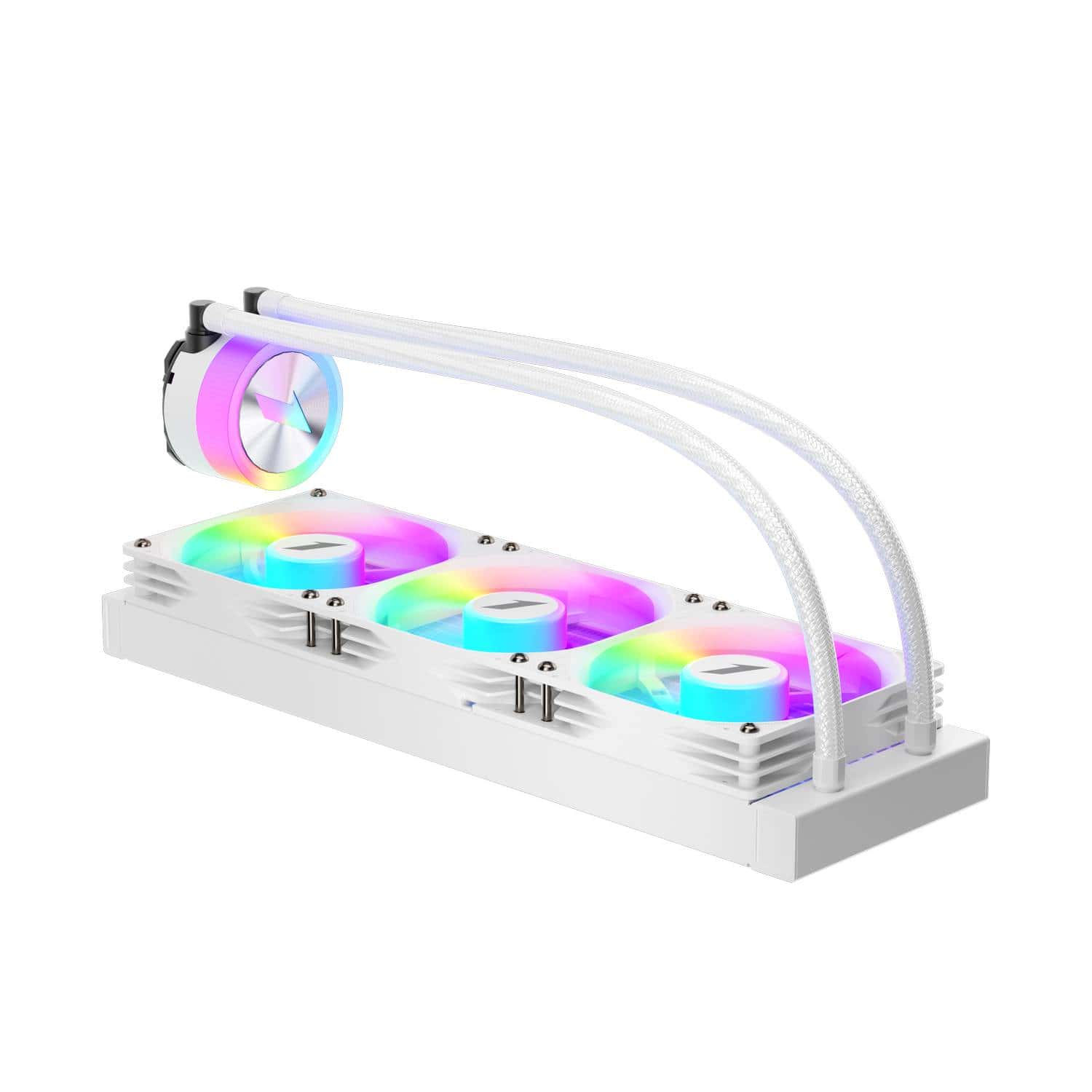

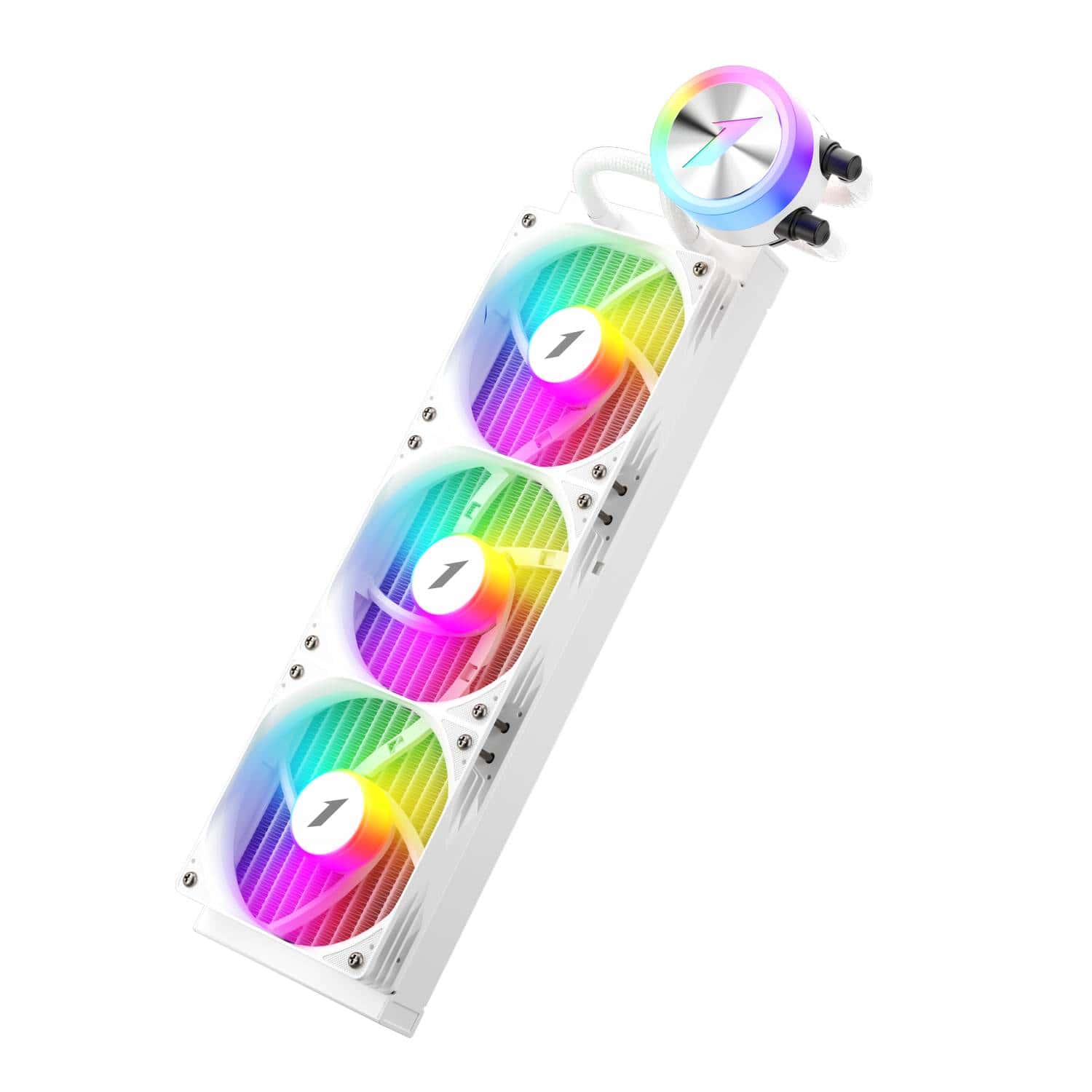

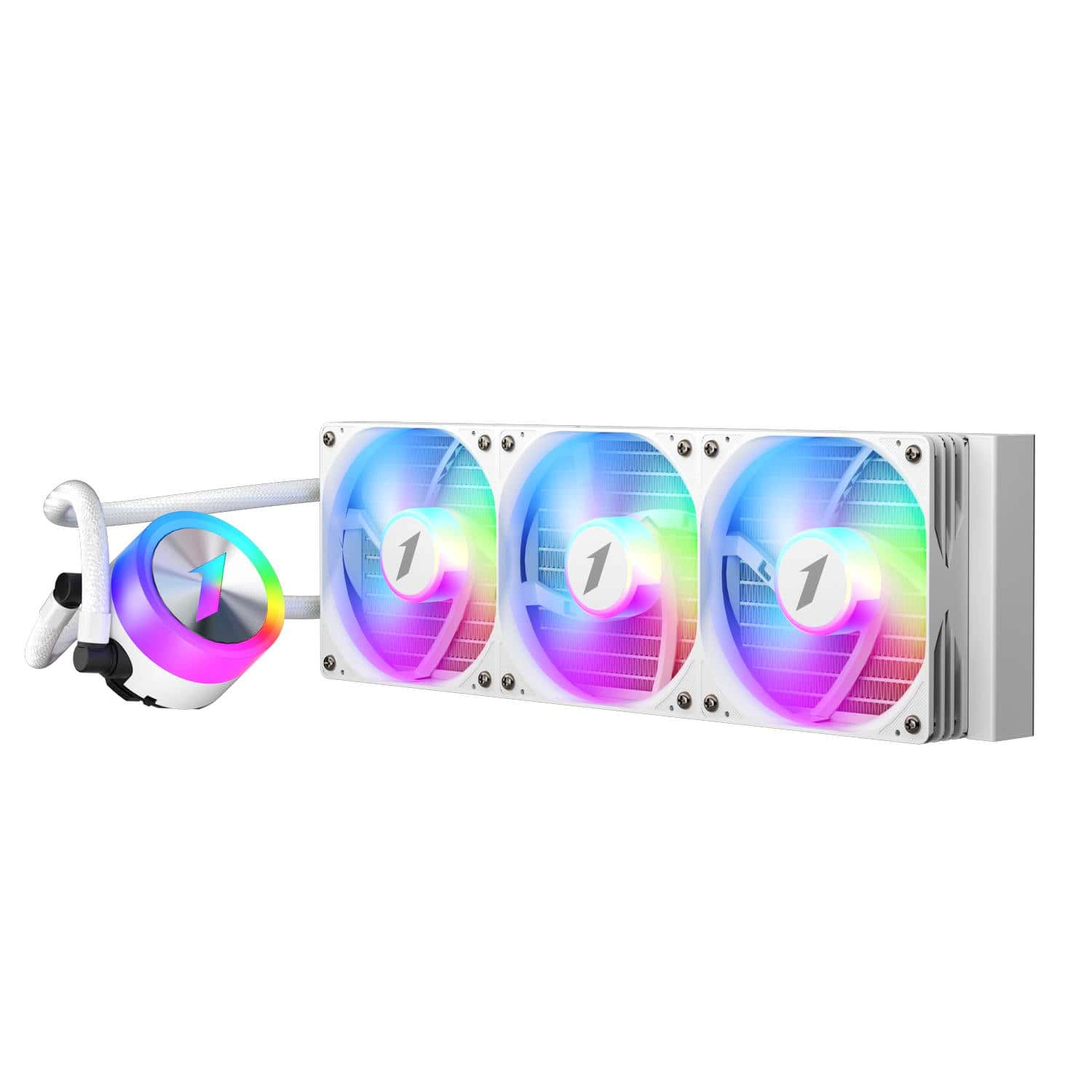

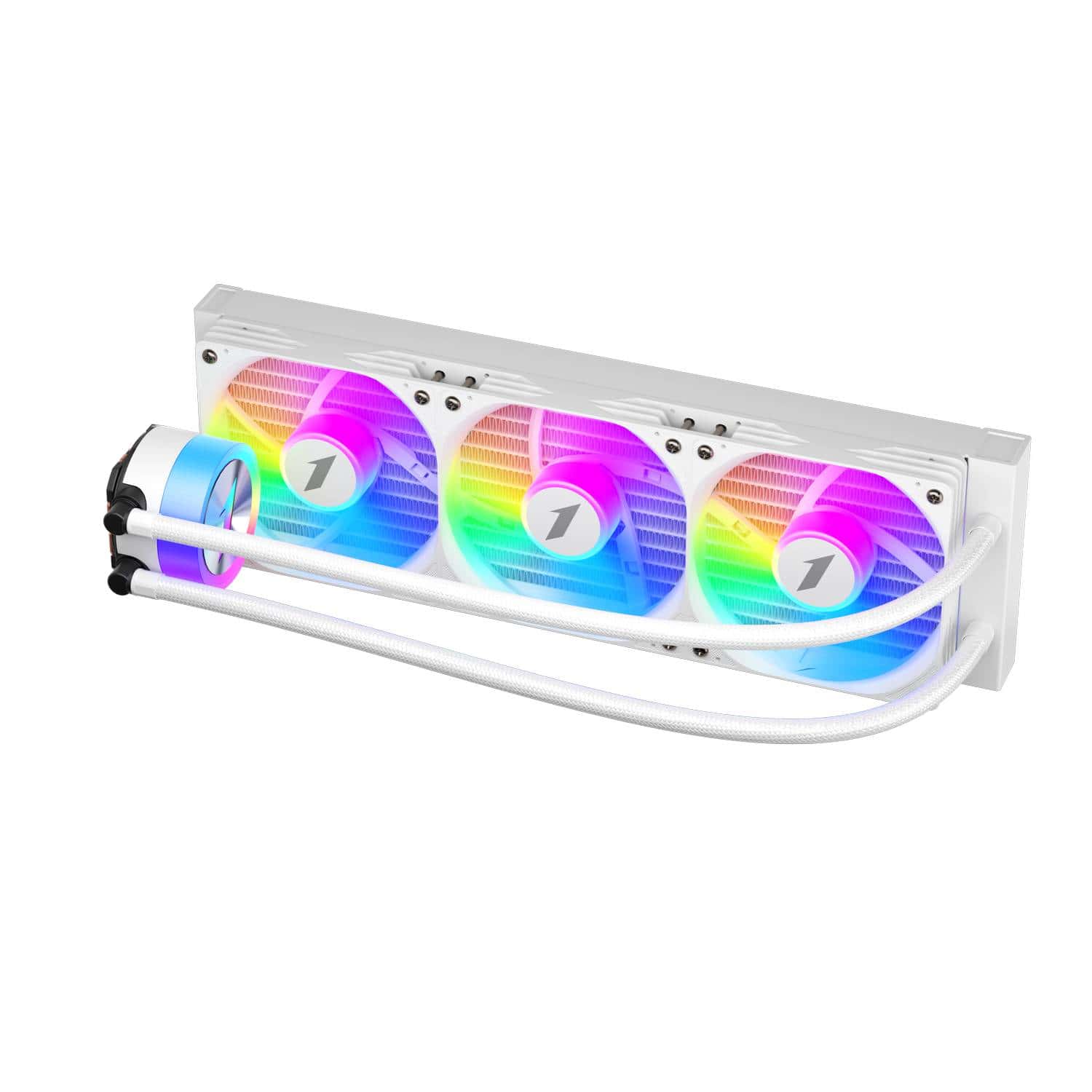

TS1 Liquid Cooler

9-blade fan for low noise operation
High-density fin radiator for effecient heat dissipation
aRGB lighting that synchronizes with the motherboard

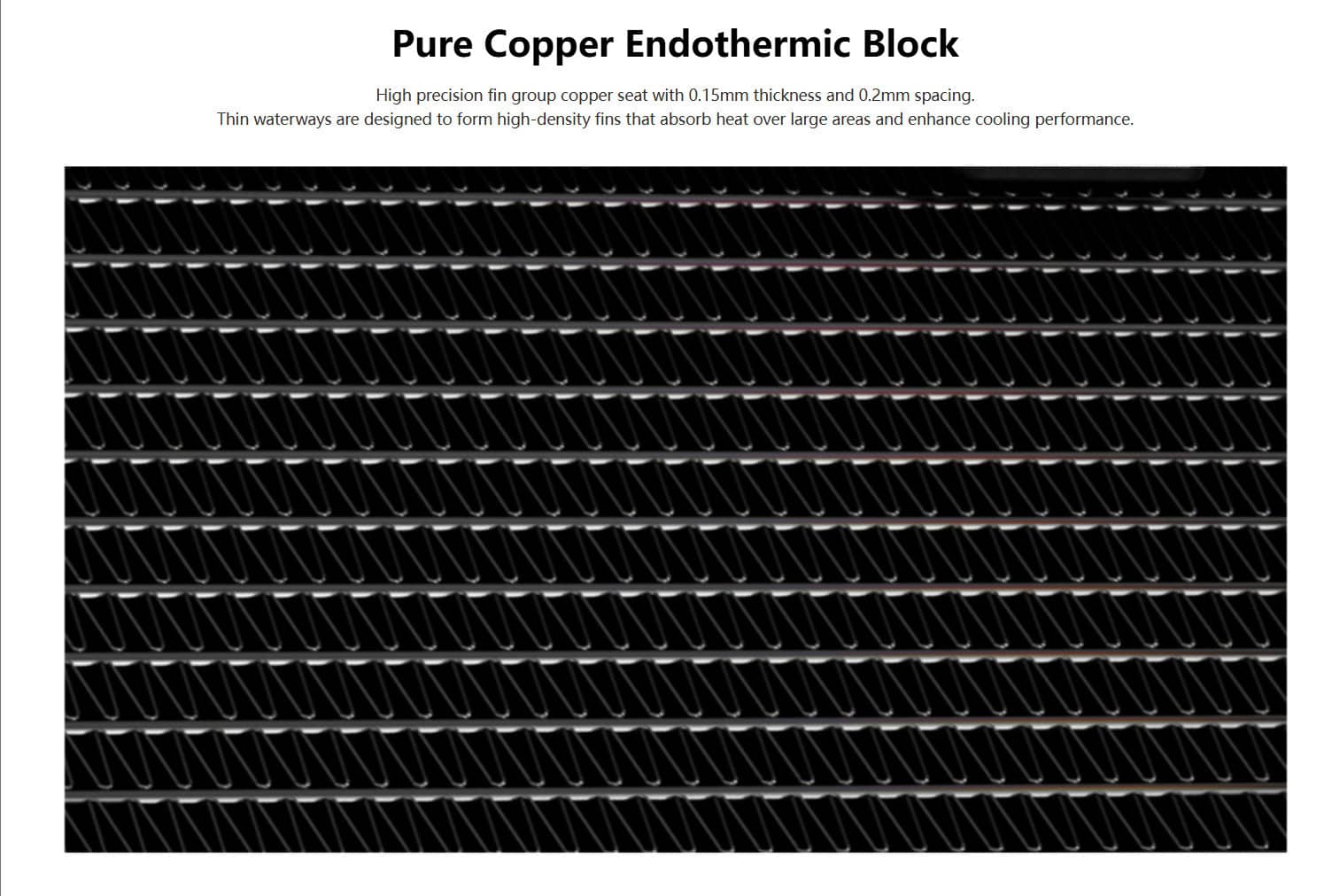

Copper endothermic cold plate for optimal heat absorption
Compatible with Intel LGA 1851 / 1700 / 1200 / 115x and AMD AM5 / AM4

Size

240 mm

360 mm

Color

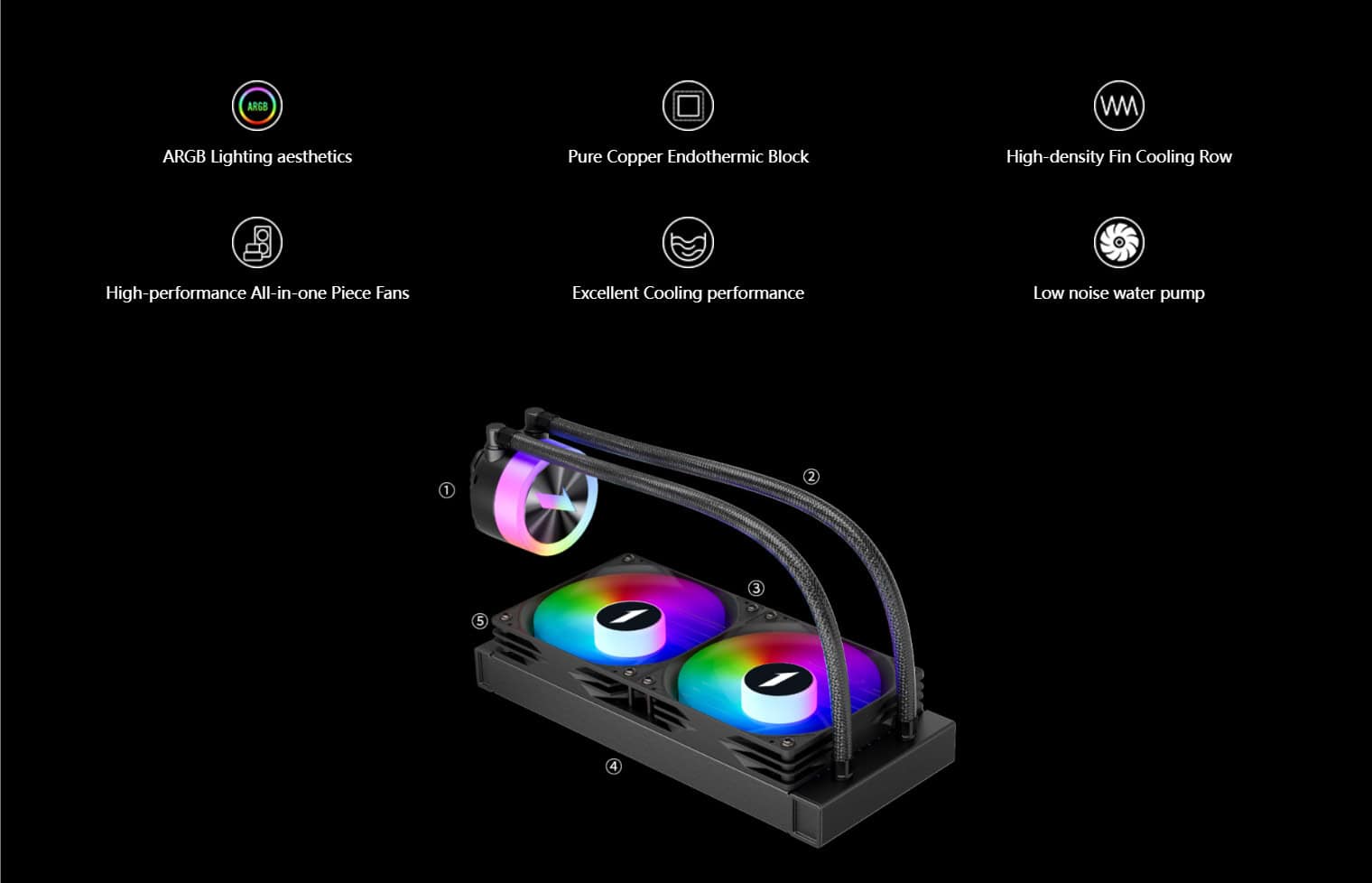

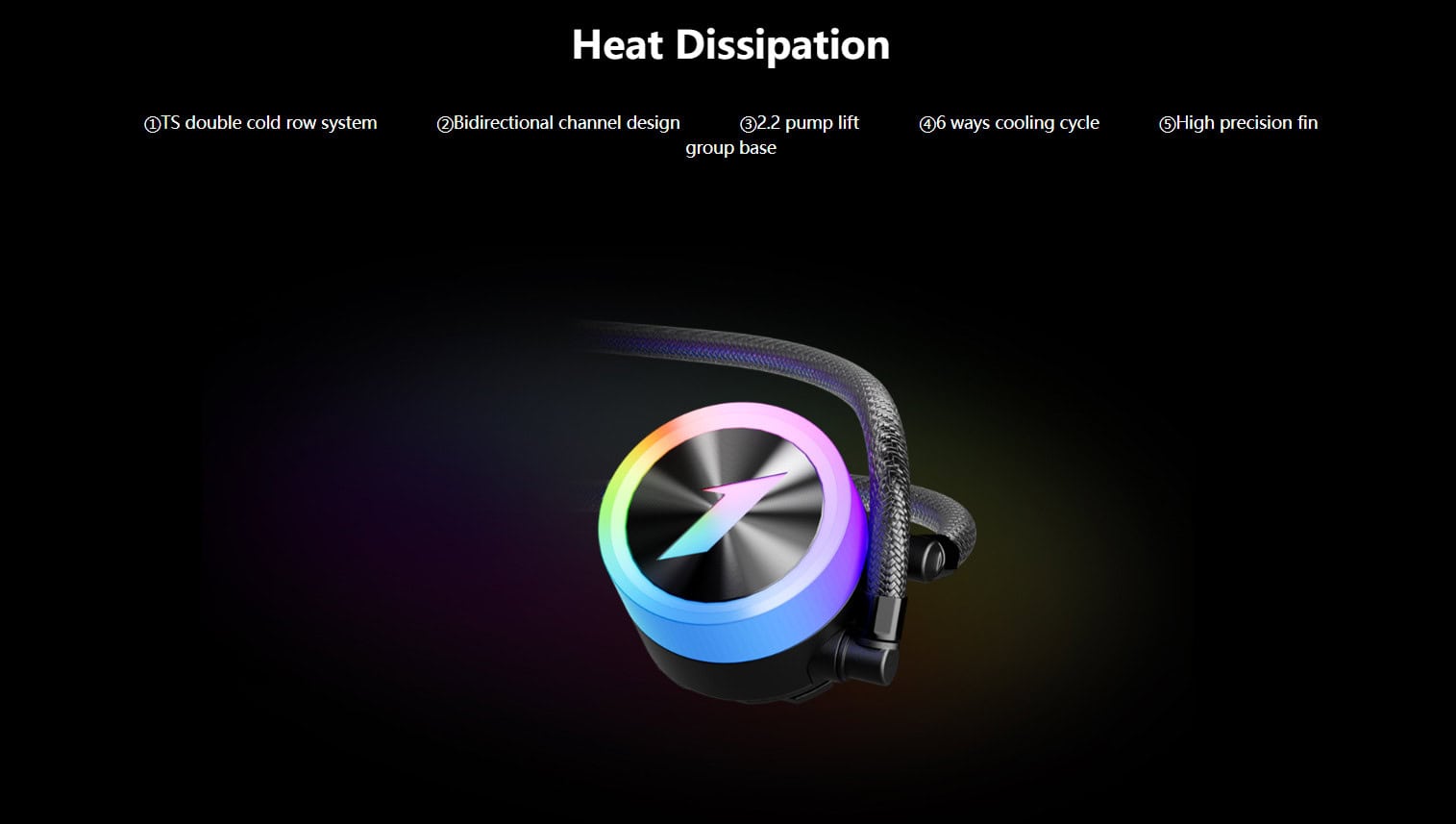

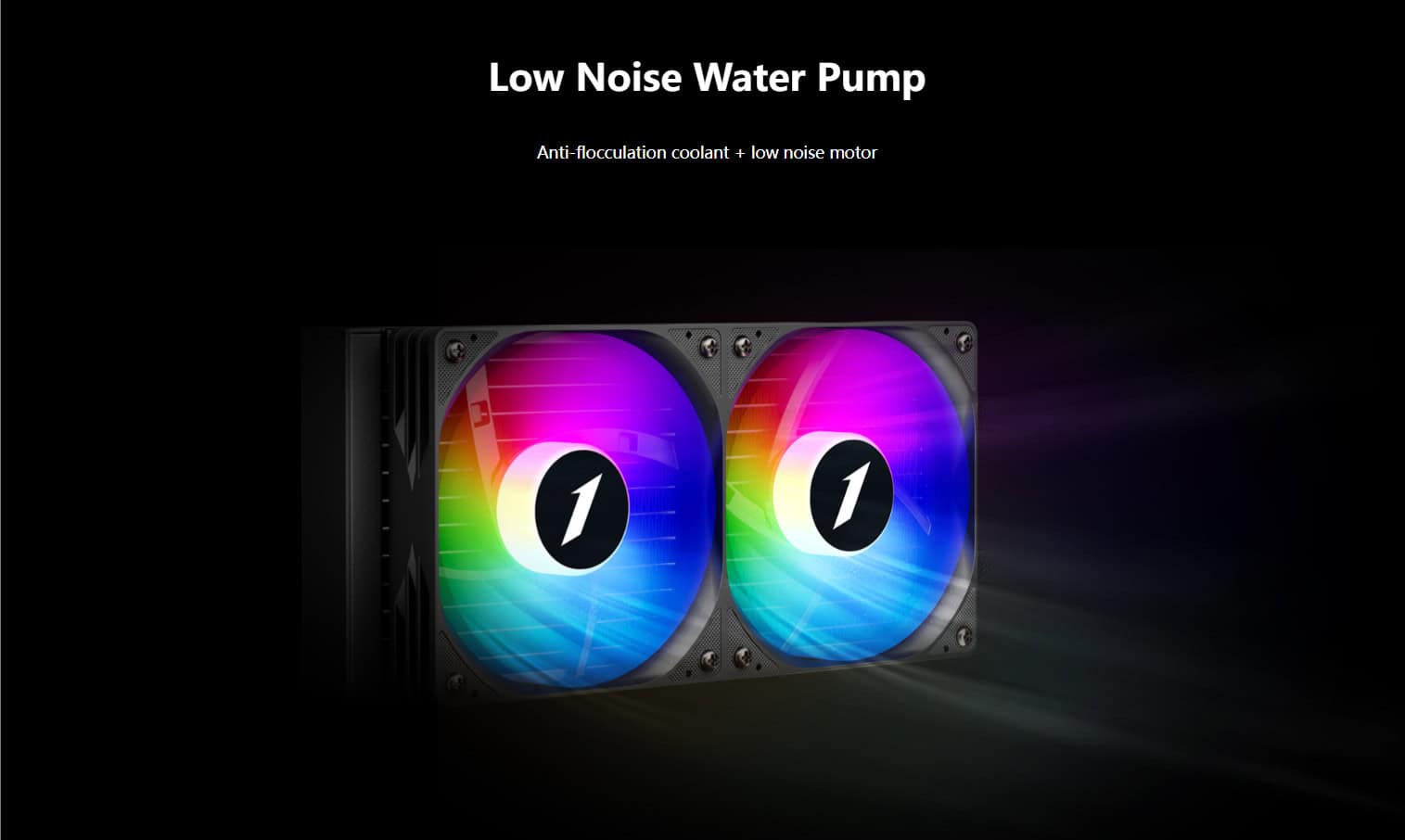

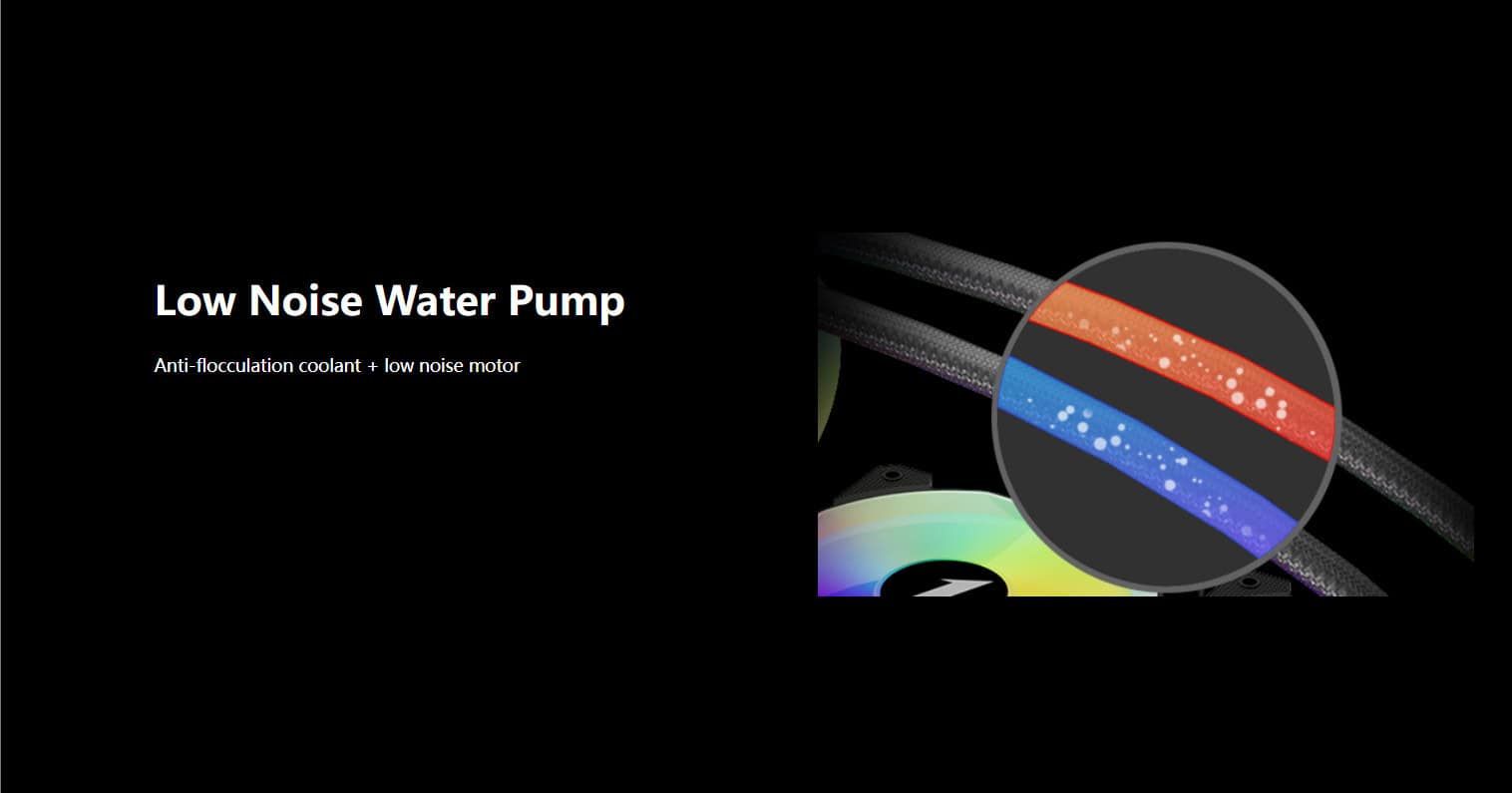

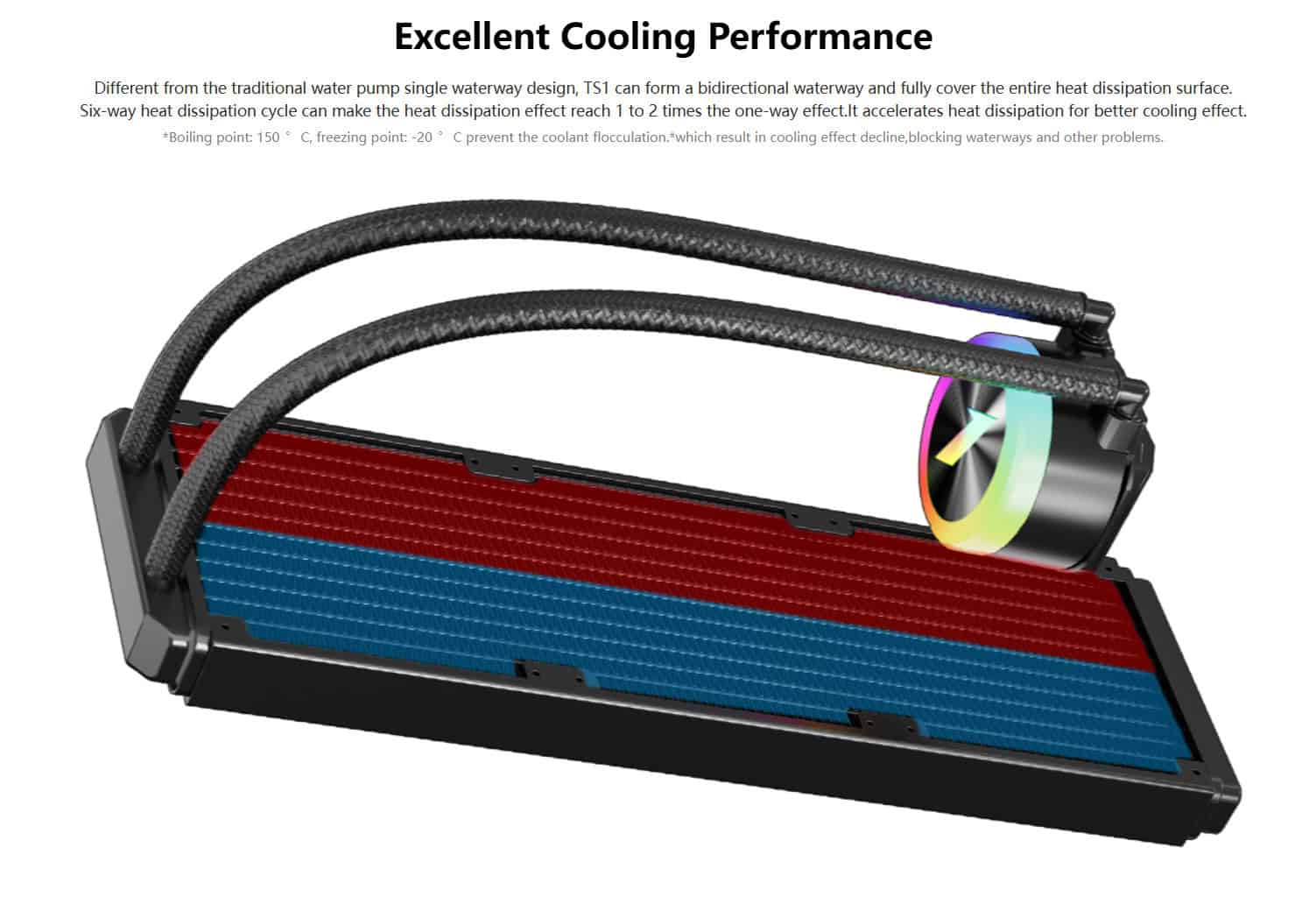

Efficient CPU water cooling block for optimal thermal management. Designed for high-performance gami. Efficient liquid cooling system with RGB lighting, copper block, and low noise pump for optimal PC t. Advanced heat dissipation system with RGB lighting for gaming PCs. Low noise water pump with RGB cooling fans for PC builds. Up to 2400RPM solid bearing water pump for TS1 system, smooth start, low noise, and low bass vibrati. Close-up of pure copper endothermic cooling block with detailed fins for efficient heat dissipation. Efficient CPU water cooling block for optimal thermal management. Designed for high-performance gami. Low noise water pump with anti-fouling coolant and low noise motor. Gaming keyboard with customizable RGB backlighting and advanced features for gamers.

MODEL

TS1 240 / TS1 360

SUPPORTED CPU

Intel LGA 1851 / 1700 / 1200 / 115x
AMD AM5 / AM4

RADIATOR DIMENSIONS

TS1 240: 277 × 120 × 27 mm
TS1 360: 394 × 120 × 27 mm

RADIATOR MATERIAL

Aluminum

TDP

TS1 240: 270 W
TS1 360: 305 W

TUBE LENGTH

TS1 240: 330 mm
TS1 360: 400 mm

WARRANTY

5 years

PUMP DIMENSIONS

84.5 x 70 x 47.2 mm

PUMP SPEED

600 - 3000 RPM ± 10%

PUMP NOISE

15 dB(A)

PUMP CONNECTOR

4 pin (PWM)

PUMP POWER CONSUMPTION

≤ 4.2 W

FAN QTY

TS1 240: 2 pcs
TS1 360: 3 pcs

FAN DIMENSIONS

TS1 240: 240 x 120 x 25.4 mm
TS1 360: 360 x 120 x 25.4 mm

FAN SPEED

600 - 1800 RPM ± 10%

FAN AIRFLOW

81.5 CFM

FAN AIR PRESSURE

2.3 mmAq

FAN NOISE

TS1 240: ≤ 33 dB(A)
TS1 360: ≤ 36 dB(A)

FAN CONNECTOR

4 pin (PWM)

FAN BEARING TYPE

Hydraulic Bearing

FAN POWER CONSUMPTION

TS1 240: 7.8 W ± 10%
TS1 360: 12 W ± 10%

LED CONNECTOR

3 pin (+ 5 V)

RATED POWER

Pump LED: 1.8 W
Fan LED:
TS1 240: 2.88 W
TS1 360: 4.32 W
